Skyjack SJ16 - Section 5 - Procedures and Maintenance; General Procedure Information; Electrical System Adjustment Procedures

87
SJ12, SJ16
213558ADA
Section 5 – Procedures
5.1 General
The following information is provided to assist you in the use and application of servicing and maintenance
procedures contained in this chapter.
5.1-1 Safety and Workmanship
Your safety, and that of others, is the first consideration when engaging in the maintenance of equipment. Always
be conscious of weight. Never attempt to move heavy parts without the aid of a mechanical device. Do not allow
heavy objects to rest in an unstable position. When raising a portion of the equipment, make sure that adequate
support is provided.
5.2 Electrical System Adjustments

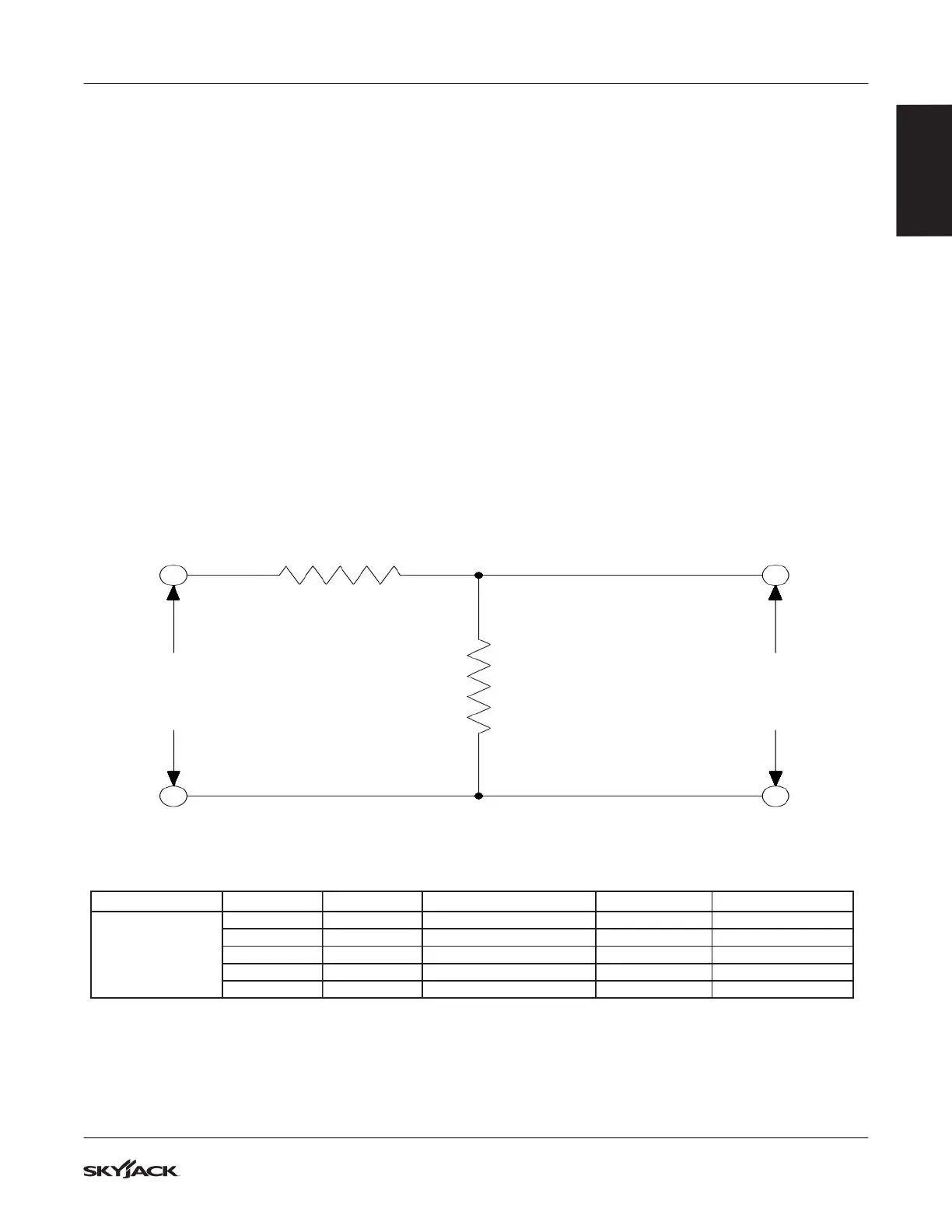

5.2-1 Electrical System
-
-
+
+
RST2,3,4,5 and 8
Resistor
RST6
Resistor
Voltage
In
Voltage
Out
5.2-2 Resistor - Voltage Divider
Common Resistor Resistor Ohm Function Input voltage* Output Voltage**
RST3 220 Platform lift resisto
r 4.8 2.5
RST6 RST8 68 Hi speed drive resisto
r 4.8 3.8
250 Ohm RST2 Elevated drive resisto
r
1.1
4.8
RST4 4.7
K Steer only resistor 24 1.2
RST5 2
K Base lift resistor 24 2.7
* 4.8 volts refers to full stroke on the joystick. 24 volts represents a full charge on the battery pack.
** Values given are with all connections tight and free from corrosion + or - 10%.
