Skyjack SJ16 Service Manual

129
SJ12, SJ16
213558ADA
Mast Roller Replacement Section 5 – Procedures
5.14-5 Mast Section 5 Installation (SJ16
Only)
1. Pull the chains attached to mast section 3 out of
the mast column and lay them against the front
of mast section 4.

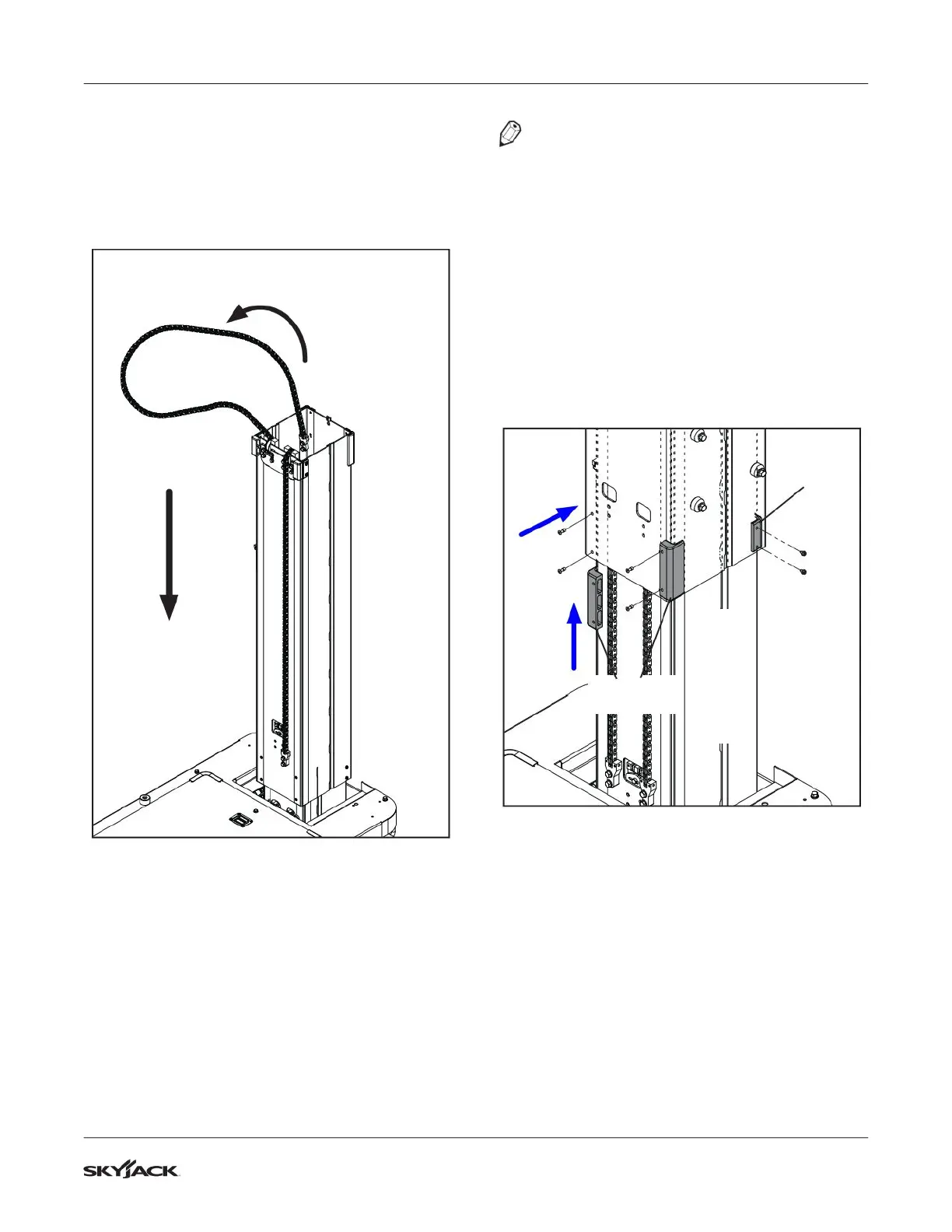

Figure 60 Section 3 to Section 5 Chains
NOTE
It is recommended that 2 lifting straps (or similar)
be attached evenly to mast section 5 for a
straight, even lift.
2. Lift mast section 5 over the mast column, then
slowly and carefully lower the section in place.
Make sure the harnesses and the control cable
enclosure box are clear at the top.
3. Lower the section until the bottom end of the
mast is in a comfortable working height to install
the lower wear pads.
4. Install the rear (short) wear pads with the 10-32
x 3/8” screws. Install the front (long) wear pads
using 3/16” rivets.
Rear Wear
Pads
Front Wear
Pads
Section 4
Figure 61 Wear Pads Installation (Section 5)

Skyjack SJ16 Specifications

General

Gradeability	25%
Drive Motor	24V DC
Max Gradeability	25%
Platform Height	16 ft
Lift Capacity	500 lbs
Machine Width	0.76 m
Overall Width	0.76 m
Drive Speed (Stowed)	4.8 km/h
Drive Speed (Raised)	0.8 km/h
Turning Radius (Inside)	0 in
Power Source	24V DC Electric
