Skyjack SJ16 Service Manual

A B C D E F G H
V
Z
Y
X
W
59
SJ12, SJ16
213558ADA

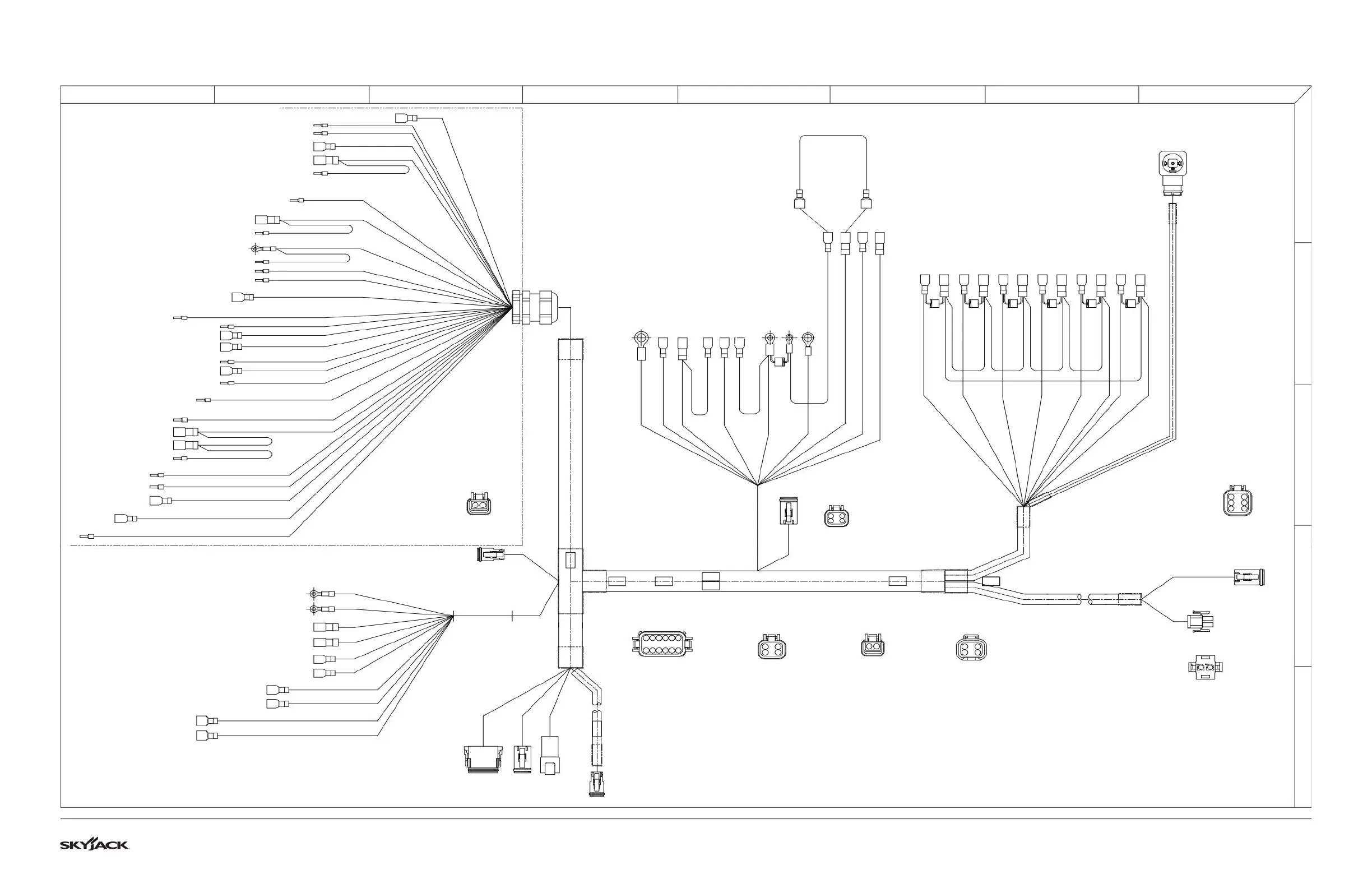

3.19 Main Electrical Harness (Page 1 of 2)
M229317AB_pg1
16GA
16GA
16GA
16GA
16GA
16GA
16GA
16GA
14GA
16GA
16GA
14GA
14GA
16GA
16GA
16GA
16GA
16GA
TO LOWER CONTROLS
1
2
3
4
5
6
7
8 9 10 11
12
TO MAST CABLE - FUNCTIONS
PIN 1 - 13 ORANGE
PIN 2 - 14 BLACK
PIN 3 - 15 BLUE
PIN 4 - 16 WHITE/BLACK
PIN 5 - 19A WHITE/RED
PIN 6 - 19B WHITE/RED
PIN 7 - 23 BLACK/WHITE
PIN 8 - 24 BLUE/BLACK
PIN 9 - 49 GREEN
PIN 10 - 59 ORANGE/BLACK
PIN 11 - 07B RED
PIN 12 - N/U
P2
BACK VIEW
TO MAST CABLE - POWER
PIN 1 - 07 RED
PIN 2 - N/U
PIN 3 - 08 PURPLE/WHITE
PIN 4 - 02 WHITE
P3
BACK VIEW
1
2
3
4
TO ELEVATED DRIVE LIMIT SW
PIN 1 - B(+) GREEN/PURPLE
PIN 2 - 18X RED/BLACK
PIN 3 - 71 BLUE/RED
PIN 4 - 21 GREEN/BLACK
J6
BACK VIEW
1
2
4
3
TO TILT SWITCH
PIN 1 - 19 WHITE/RED
PIN 2 - 07B RED
PIN 3 - 28 GREEN/RED
PIN 4 - 16B WHITE/BLACK
PIN 5 - 15B BLUE
PIN 6 - 02 WHITE
P8
BACK VIEW
1
2
3
4
5
6
TO POTHOLE LIMIT SWITCH
PIN 1 - 71A BLUE/RED
PIN 2 - 72 WHITE/BLACK/RED
PIN 3 - N/U
PIN 4 - N/U
P11
BACK VIEW
1
2
3
4
P5
BACK VIEW
TO MAST LOWER SOLENOID
PIN 1 - 13 ORANGE
PIN 2 - 02 WHITE
1
2
P21
BACK VIEW
TO STROBE OPTION
PIN 1 - 29 BLUE/YELLOW
PIN 2 - 02 WHITE
1
2
S08
S13
16B
59B
15
16
15A
15B
16A
21
02
14
71
59
07
08
05
00
19B
19B 59B
08
03
19E
02
POTHOLE HOLDING SOLENOID
PIN 1 - 21 GREEN/BLACK
PIN 2 - 02 WHITE
TO BRAKE SOLENOID
17 - BLUE/RED
02 - WHITE
17 02
TO DRIVE FWD SOLENOID
16A - WHITE/BLACK
02 - WHITE
16A
02
TO DRIVE REV SOLENOID
15A - BLUE
02 - WHITE
15A
02
TO MAST RAISE SOLENOID
14A - BLACK
02 - WHITE
14A
02
TO STEER L SOLENOID
24 - BLUE/BLACK
02 - WHITE
24 02
TO STEER R SOLENOID
23 - BLACK/WHITE
02 - WHITE
23 02
18X
B+
02
49
03
03A
02
00
19B
19A
29
17
14
14
TO MOTOR CONTROLLER
00 - WHITE
59B - ORANGE/BLACK
19B - WHITE/RED
TO MOTOR CONTACTOR
19E - WHITE/RED
02 - WHITE 03 - GREEN/PURPLE
29
19A
19A
28
24
23
17
72
19
71A
14A
13
P2 P3 J6
P5
P21
TO BP49 HORN
49 - GREEN
02 - WHITE
TO CB1 CIRCUIT BREAKER
03A - GREEN/PURPLE
03 - GREEN/PURPLE
TO CB2 CIRCUIT BREAKER
00 - WHITE
02 - WHITE
TO S5 DIAGNOSTIC SWITCH
19A - WHITE/RED
19B - WHITE/RED
TO TELEMATICS
B(+) - GREEN/PURPLE
18X - RED/BLACK
TO TELEMATICS
19B - WHITE/RED
08 - PURPLE/WHITE 02 - WHITE
P18
P8
P11
02
TO ELEVATE TELEMATICS
19E - WHITE/RED 19A - WHITE/RED
07 - RED
17 - BLUE/RED
19A
07
17
19E
S07 S21 S21S21
S02
S23
S24
1
2
TO CHARGER CUTOUT
PIN 1 - 03A GREEN/PURPLE
PIN 2 - 05 PURPLE/BLACK
P18
BACK VIEW
4 WIRES
