Floor Loading Pressure - CE, AS Section 2 – Maintenance Tables and Diagrams
2.7 Floor Loading Pressure - CE, ASTable
Model
Total MEWP
Weight
Total MEWP Load
Wheel** LCP*** OFL***
SJ12
min* 863 kg 275 kg 647 kPa 7.8 kPa
max* 1090 kg 430 kg 891 kPa 9.8 kPa
SJ16
min* 980 kg 355 kg 774 kPa 8.8 kPa
max* 1207 kg 510 kg 1010 kPa 10.8 kPa
1840AB*
Min: Minimum MEWP weight (Unloaded platform, no options/attachments)
Max: Maximum MEWP weight (Platform loaded to capacity with options/attachments)
**
Wheel is the weight that can be experienced on one wheel.
Note: This is more than 25% of the machine weight due to possible weight distribution over the machine and
platform.
***
LCP: Local Concentrated Pressure is a measure of how hard the MEWP presses on the area in direct contact
with the floor/tire.
OFL: Overall Floor Load (Pressure) is a measure of the average load the MEWP imparts on the whole
surface directly underneath the chassis. This has been calculated by dividing the MEWP weight by the
overall floor area occupied by the MEWP (on wheels).
Note: The floor covering (e.g., tile, carpet, etc.) or the structure (e.g., beams) of the operating surface must
be able to withstand more than the values indicated above.
NOTE
The LCP or OFL that an individual surface can withstand varies from structure to structure and is
generally determined by the engineer or architect for that particular structure.

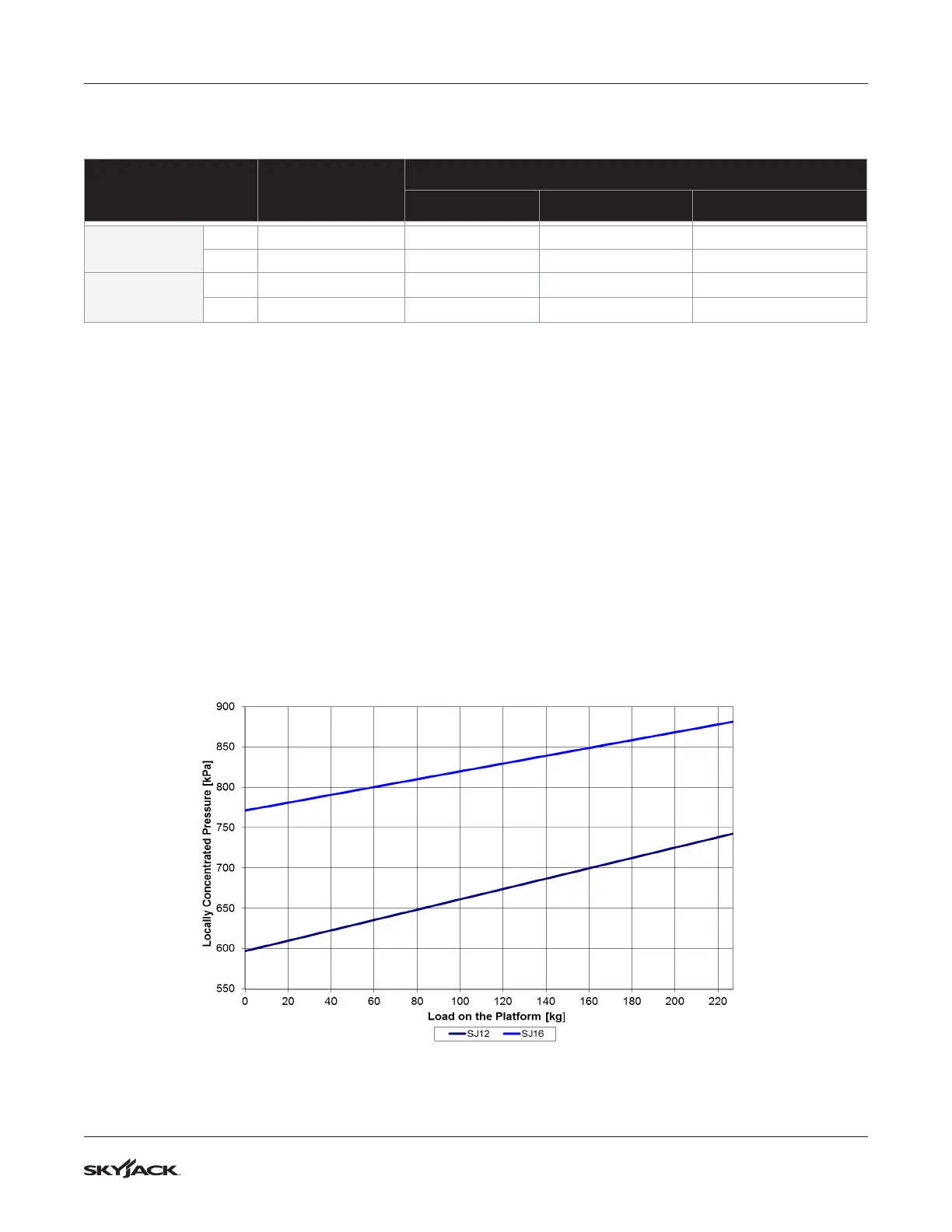

Floor Loading Pressure
SJ16
SJ12
