Section 2 – Maintenance Tables and Diagrams Floor Loading Pressure - CE, AS

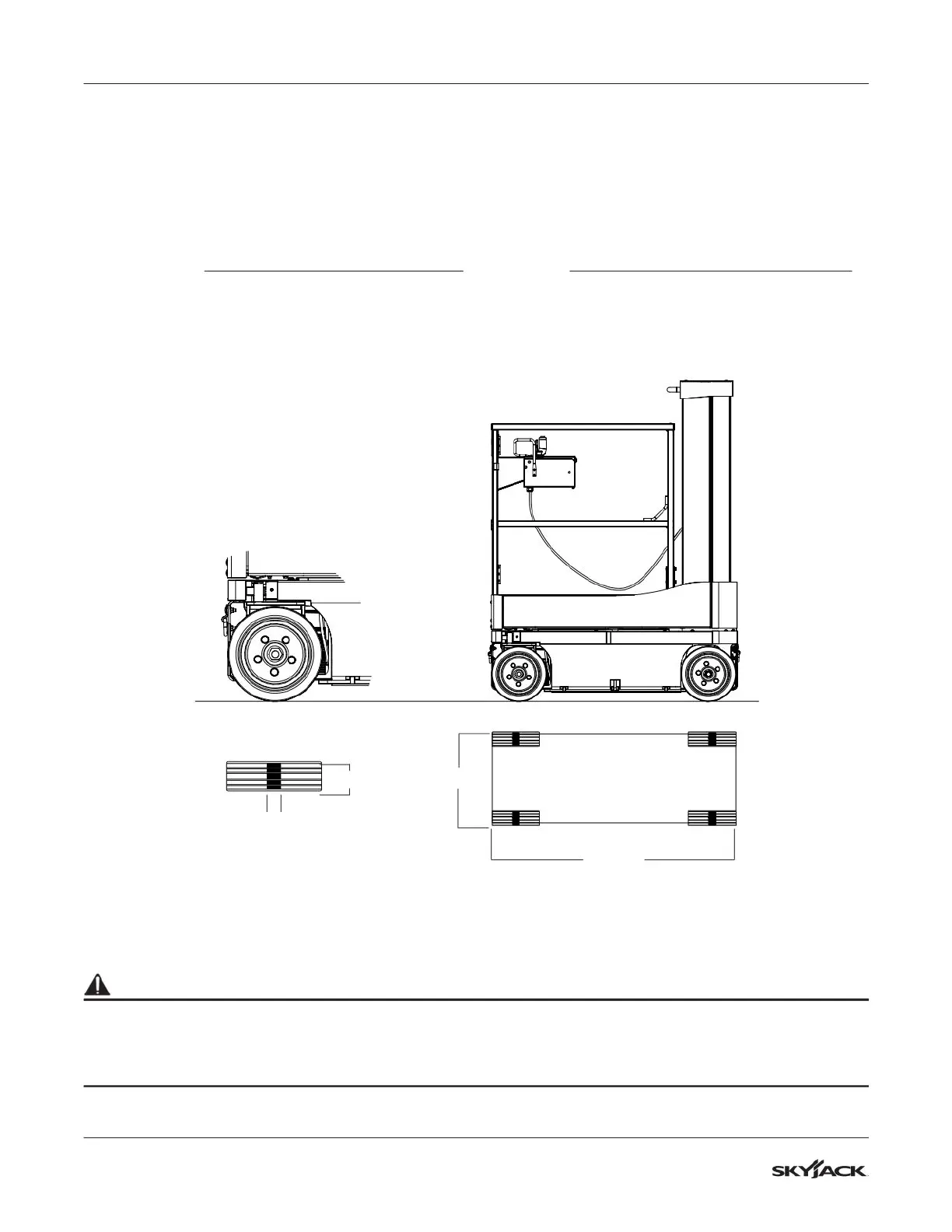

Floor Loading Pressure
Locally Concentrated Pressure (LCP): Overall Uniform Pressure (OUP):
Foot Print Area = Length x Width Base Area = Length x Width
LCP = 0.4 X
Weight of MEWP + Capacity
Foot Print Area
OUP =
Weight of MEWP + Capacity
Base Area
Length
Width
Width
Length
WARNING
Intermixing tires of different types or using tires of types other than those originally supplied with this
equipment can adversely affect stability. Therefore, replace tires only with the exact original Skyjack-
approved type. Failure to operate with matched approved tires in good condition may result in death or
serious injury.

Skyjack SJ16 Specifications

General

Gradeability	25%
Drive Motor	24V DC
Max Gradeability	25%
Platform Height	16 ft
Lift Capacity	500 lbs
Machine Width	0.76 m
Overall Width	0.76 m
Drive Speed (Stowed)	4.8 km/h
Drive Speed (Raised)	0.8 km/h
Turning Radius (Inside)	0 in
Power Source	24V DC Electric
