Skyjack SJ16 Service Manual

137
SJ12, SJ16
213558ADA
Lift Cylinder Replacement Section 5 – Procedures

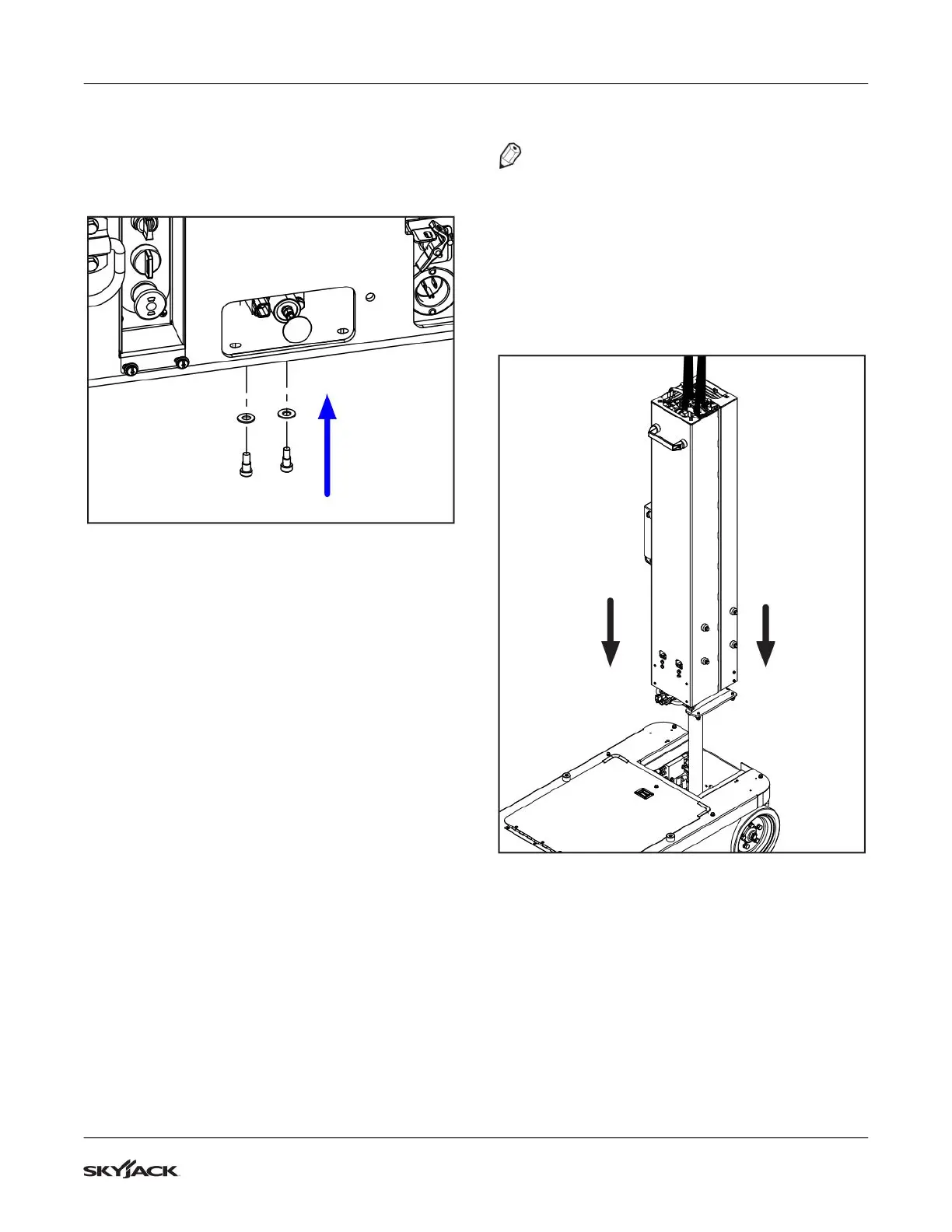

5. Fully lower the cylinder in place. Apply loctite
242 (blue) to the threads of 2 socket head
screws then install with flat washers at the base
of the cylinder as shown. Torque to 18ft-lb (24.4
N·m).
Figure 84 Cylinder Hardware Installation
5.15-5 Mast Assembly Installation
NOTE
It is recommended that 2 lifting straps (or similar)
be attached evenly to the cylinder mounting
bracket on mast section 2 for a straight, even lift.
1. Carefully lift the mast assembly over the lift
cylinder and slowly lower the mast in place.
Make sure the harnesses are clear while
lowering the mast.
Figure 85 Mast Installation

Skyjack SJ16 Specifications

General

Gradeability	25%
Drive Motor	24V DC
Max Gradeability	25%
Platform Height	16 ft
Lift Capacity	500 lbs
Machine Width	0.76 m
Overall Width	0.76 m
Drive Speed (Stowed)	4.8 km/h
Drive Speed (Raised)	0.8 km/h
Turning Radius (Inside)	0 in
Power Source	24V DC Electric
