Section 5 – Procedures Lift Cylinder Replacement
2. Apply Loctite 242 (blue) to the threads and
install the eight mounting bolts with the flat and
the lock washers. Torque to 23 ft-lb (31 N·m).

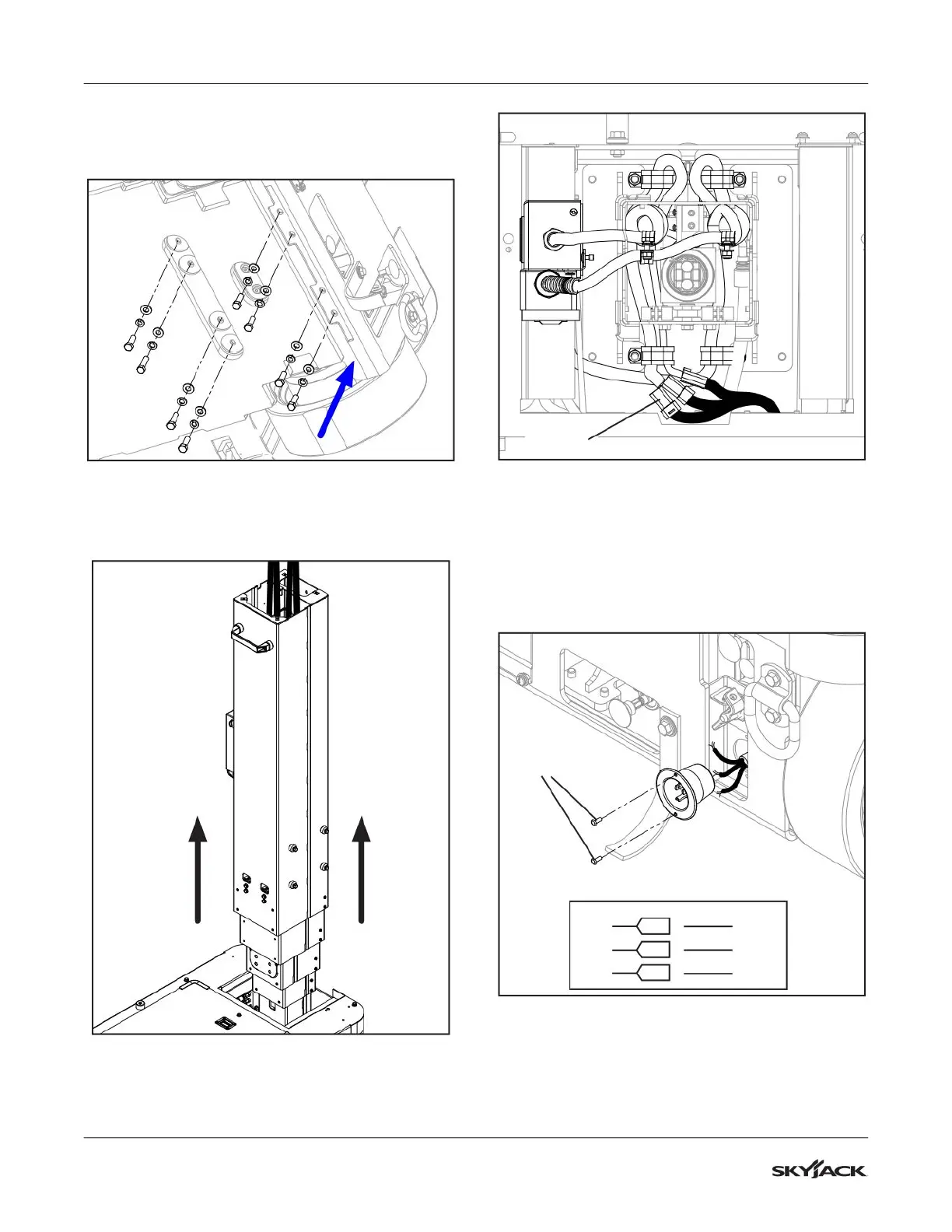

Figure 86 Mast Hardware Installation
3. Lift the mast enough to connect the harness
plug connectors at the base.
Figure 87 Mast Positioning
Connect
Plugs
Figure 88 Mast Harness Connection
4. Connect the AC power supply harness to the
power inlet at the base. Match the green wire to
the green terminal, the black wire to the bronze
terminal, and the white wire to the silver terminal.
Install the socket with the ground pin down
using a 1/16” rivet in each hole.
Green
Green
Bronze
Bronze
Silver Silver
Rivet
Figure 89 Power Inlet and Harness Installation

Skyjack SJ16 Specifications

General

Gradeability	25%
Drive Motor	24V DC
Max Gradeability	25%
Platform Height	16 ft
Lift Capacity	500 lbs
Machine Width	0.76 m
Overall Width	0.76 m
Drive Speed (Stowed)	4.8 km/h
Drive Speed (Raised)	0.8 km/h
Turning Radius (Inside)	0 in
Power Source	24V DC Electric
