Skyjack SJ16 Service Manual

139
SJ12, SJ16
213558ADA
Lift Cylinder Replacement Section 5 – Procedures
5. Secure the mast control and AC power supply
harnesses with the clamps and hardware at the
base of the mast.
Clip Clip

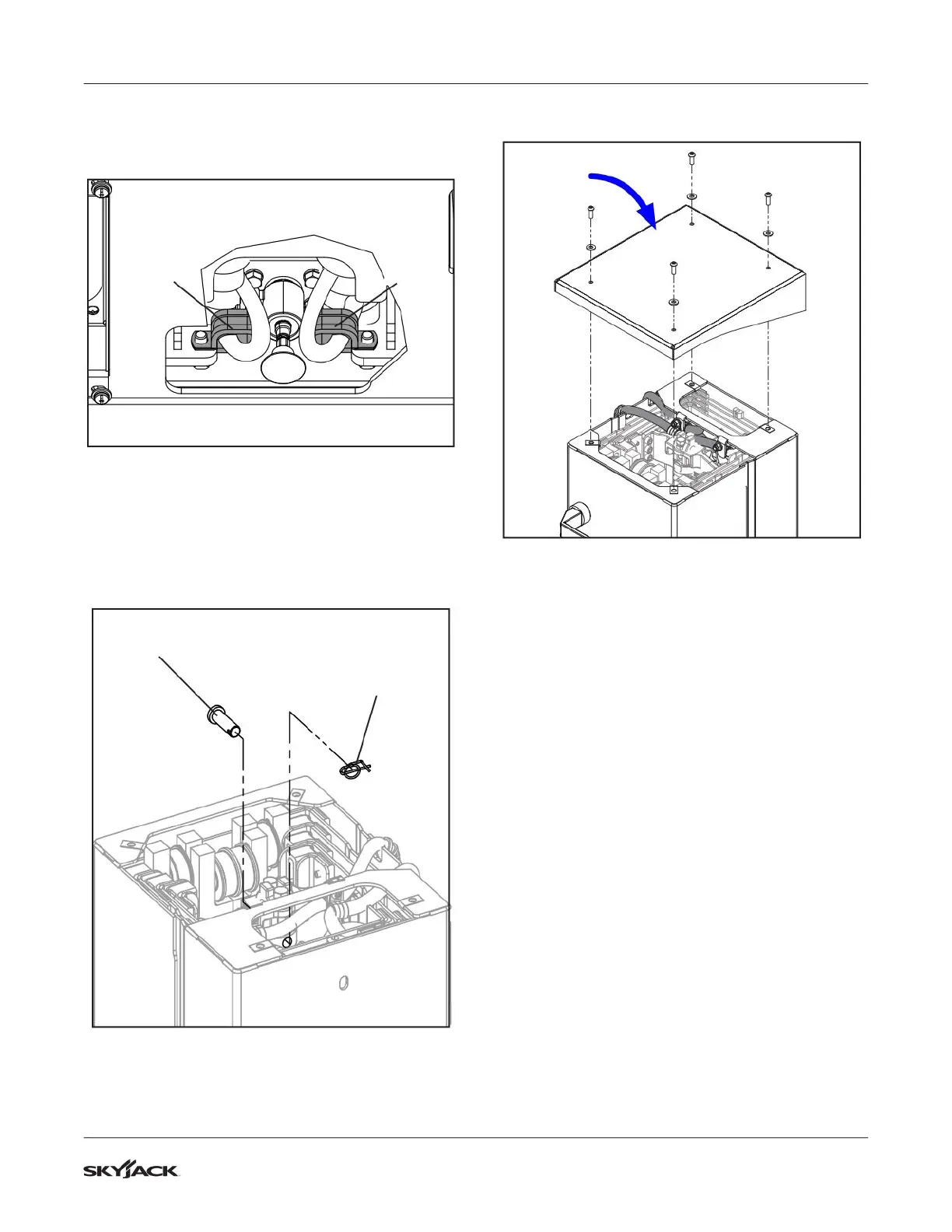

Figure 90 Mast Base Clamps Installation
6. Fully lower the mast and remove the lifting
straps.
7. Secure the lift cylinder to the cylinder mount
bracket on section 2 with the rod pin and cotter
pin.
Rod Pin
Cotter Pin
Figure 91 Rod Pin Installation
8. Install the mast cover at the top.
Figure 92 Mast Top Cover Installation
9. Refer to 5.10-6 Extending Platform Installation
for platform installation.
10. Perform a full function test as outlined in the
operating manual.

Skyjack SJ16 Specifications

General

Gradeability	25%
Drive Motor	24V DC
Max Gradeability	25%
Platform Height	16 ft
Lift Capacity	500 lbs
Machine Width	0.76 m
Overall Width	0.76 m
Drive Speed (Stowed)	4.8 km/h
Drive Speed (Raised)	0.8 km/h
Turning Radius (Inside)	0 in
Power Source	24V DC Electric
