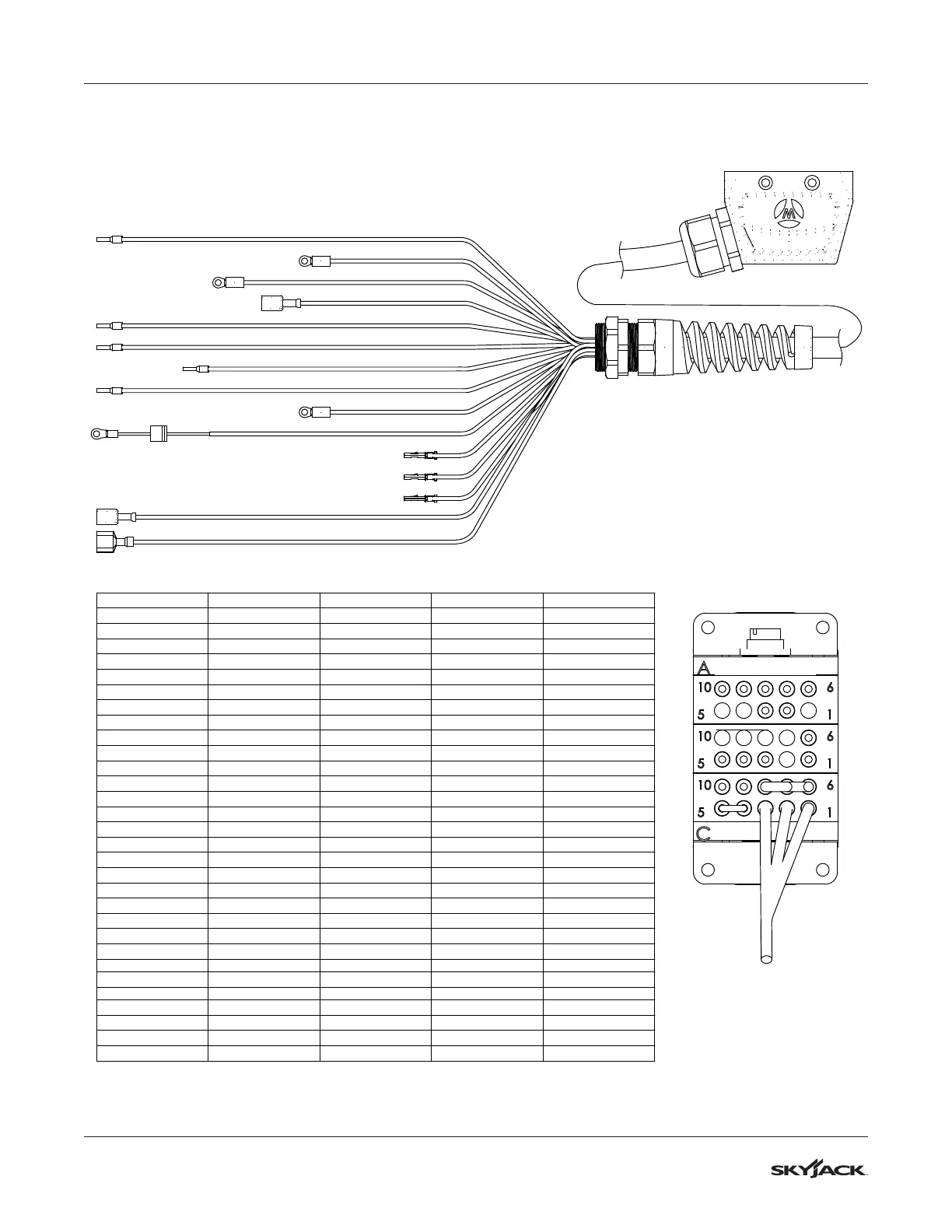

Section 3 – System Component Identification and Schematics Platform Control Box Cable - SGLE
3.12 Platform Control Box Cable - SGLE
CAVITY COLOUR CIRCUIT NO. TERMINATION CUT LENGTH
A10 WHITE/BLACK 16
#6 RING
10
A9
BLUE 15
#6 RING
9
A8 BLACK 14
#6 RING
10
A7
ORANGE 13
#6 RING
11
A6 BLUE/WHITE 08 16GA FERRULE
15
A1
NOT USED
A2
WHITE
02 16GA FERRULE
15
A3
RED
07 16GA FERRULE
15
A4 NOT USED
A5
NOT USED
B10 NOT USED
B9 NOT USED
B8 NOT USED
B7
NOT USED
B6 ORANGE/BLACK 59
FEMALE WIRE PIN
6
B1
RED/WHITE 12A
#6 RING W/ DIODE
15
B2 NOT USED
B3 BLACK/WHITE 23
FEMALE WIRE PIN
6
B4 BLUE/BLACK 24
FEMALE WIRE PIN
6
B5
GREEN/WHITE 49 16GA FERRULE 13
C10 GREEN/BLACK 19B MALE SPADE
15
C9 RED/BLACK 19B FEMALE SPADE
15
C8 07B
JUMPER
C7 07B
JUMPER
C6 07B
JUMPER
C1
GREEN (SPLICED)
07A N/A
C2
GREEN (SPLICED)
07A N/A
C3 GREEN 07A 16GA FERRULE
15
C4 19A
JUMPER
C5 19A
JUMPER
59-OR/BK-16
23-BK/WH-16
24-BU/BK-16
49-GN/WH-16
16-WH/BK-16
14-BK-16
13-OR-16
15-BU-16
12A-RD/WH-16
07A-GN-16
08-BU/WH-16
07-RD-16
02-WH-16
19B-RB/BK-16
19B-GN/BK-16
M228851AB

Skyjack SJ16 Specifications

General

Gradeability	25%
Drive Motor	24V DC
Max Gradeability	25%
Platform Height	16 ft
Lift Capacity	500 lbs
Machine Width	0.76 m
Overall Width	0.76 m
Drive Speed (Stowed)	4.8 km/h
Drive Speed (Raised)	0.8 km/h
Turning Radius (Inside)	0 in
Power Source	24V DC Electric
