Skyjack SJ16 Service Manual

118
213558ADA
SJ12, SJ16
Section 5 – Procedures Mast Chain Visual Inspection
5.12-5 Mast Section 2 Removal

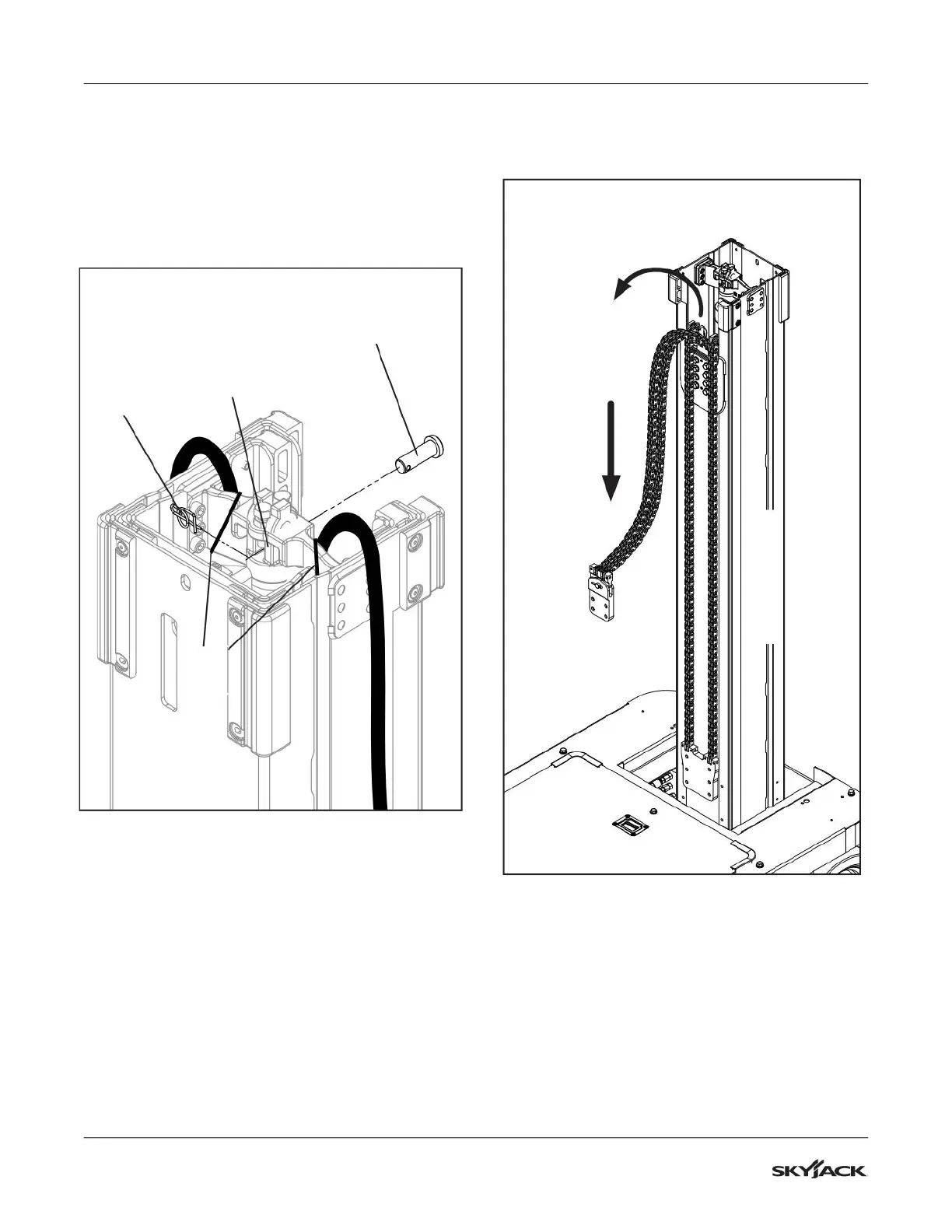

1. Remove the hydraulic cylinder rod pin securing
the cylinder to the mount bracket in section 2 as
shown in figure below.
2. Cut all the cable ties securing the harnesses to
the cylinder mount bracket.
Cotter Pin
Rod Pin
Cylinder
Rod
Cable
Ties
Figure 33 Rod Pin Removal
3. Pull the chains attached to mast section 2 out of
the mast column and lay them against the front
of mast section 2.
Section 2
Figure 34 Section 2 Chains

Skyjack SJ16 Specifications

General

Gradeability	25%
Drive Motor	24V DC
Max Gradeability	25%
Platform Height	16 ft
Lift Capacity	500 lbs
Machine Width	0.76 m
Overall Width	0.76 m
Drive Speed (Stowed)	4.8 km/h
Drive Speed (Raised)	0.8 km/h
Turning Radius (Inside)	0 in
Power Source	24V DC Electric
