Section 5 – Procedures Mast Roller Replacement
5. Lower mast section 5 enough to connect the
chain tensioner. Apply Loctite 242 (blue) to the
threads of the four bolts and install them with the
flat washers.

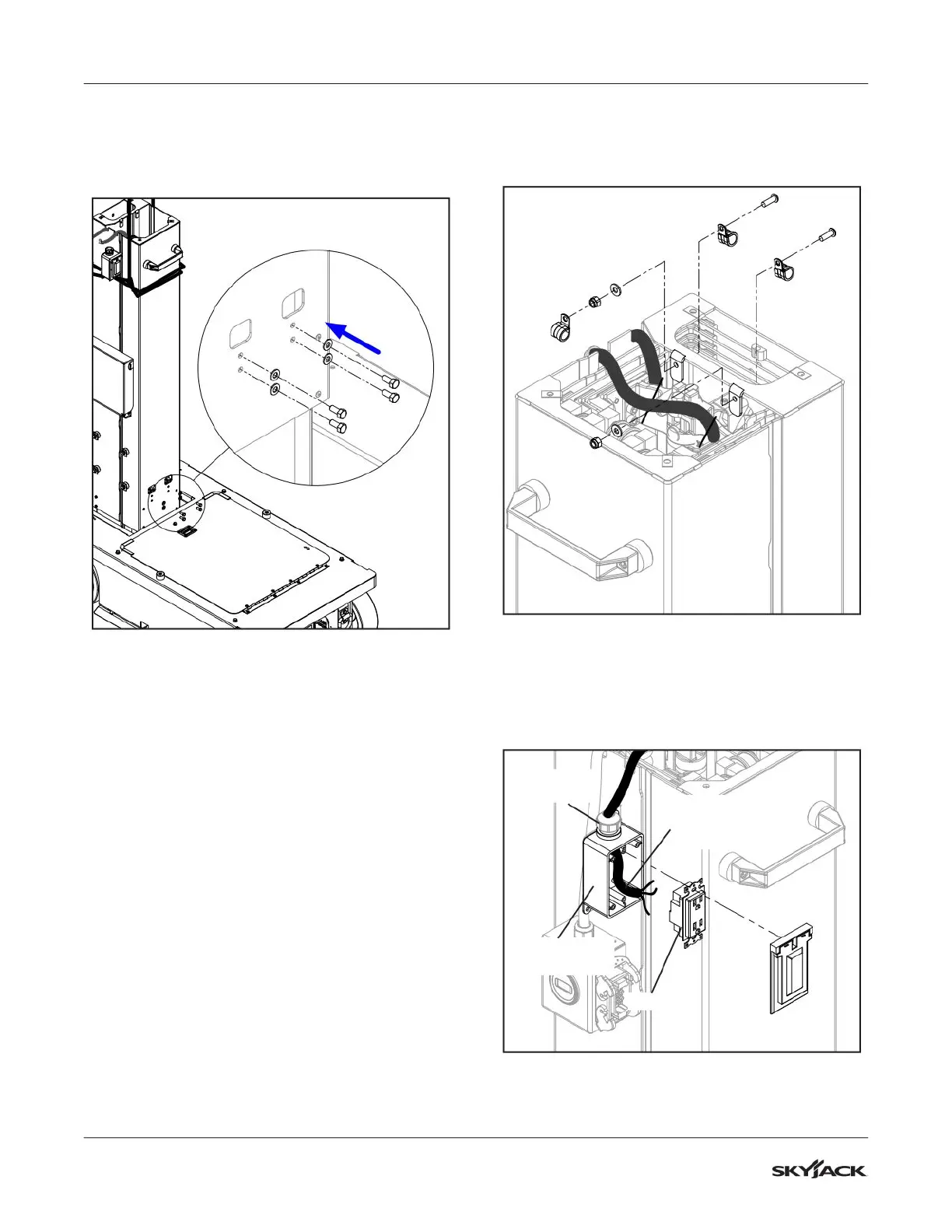

Figure 62 Chain Tensioner Installation (Section 5)
6. Fully lower mast section 5. Guide the electrical
harnesses and the control cable enclosure out
of the mast column.
5.14-6 Extending Platform Installation
1. Secure the harnesses with the clamps at the top
of the mast as shown in figure below.
Figure 63 Harness and Clamps Installation
2. Route the AC power supply harness through the
strain relief to the inside of to the receptacle box
on the side of the mast and connect the harness
to the outlet (ANSI/CSA Only).
AC Power
Supply
Harness
Receptacle
Box
Outlet
Strain
Relief
Figure 64 AC Power Supply Harness Connection
