Skyjack SJ16 Service Manual

131
SJ12, SJ16
213558ADA
Mast Roller Replacement Section 5 – Procedures
3. Lift platform in position over the mast then slowly
and carefully lower it in place.

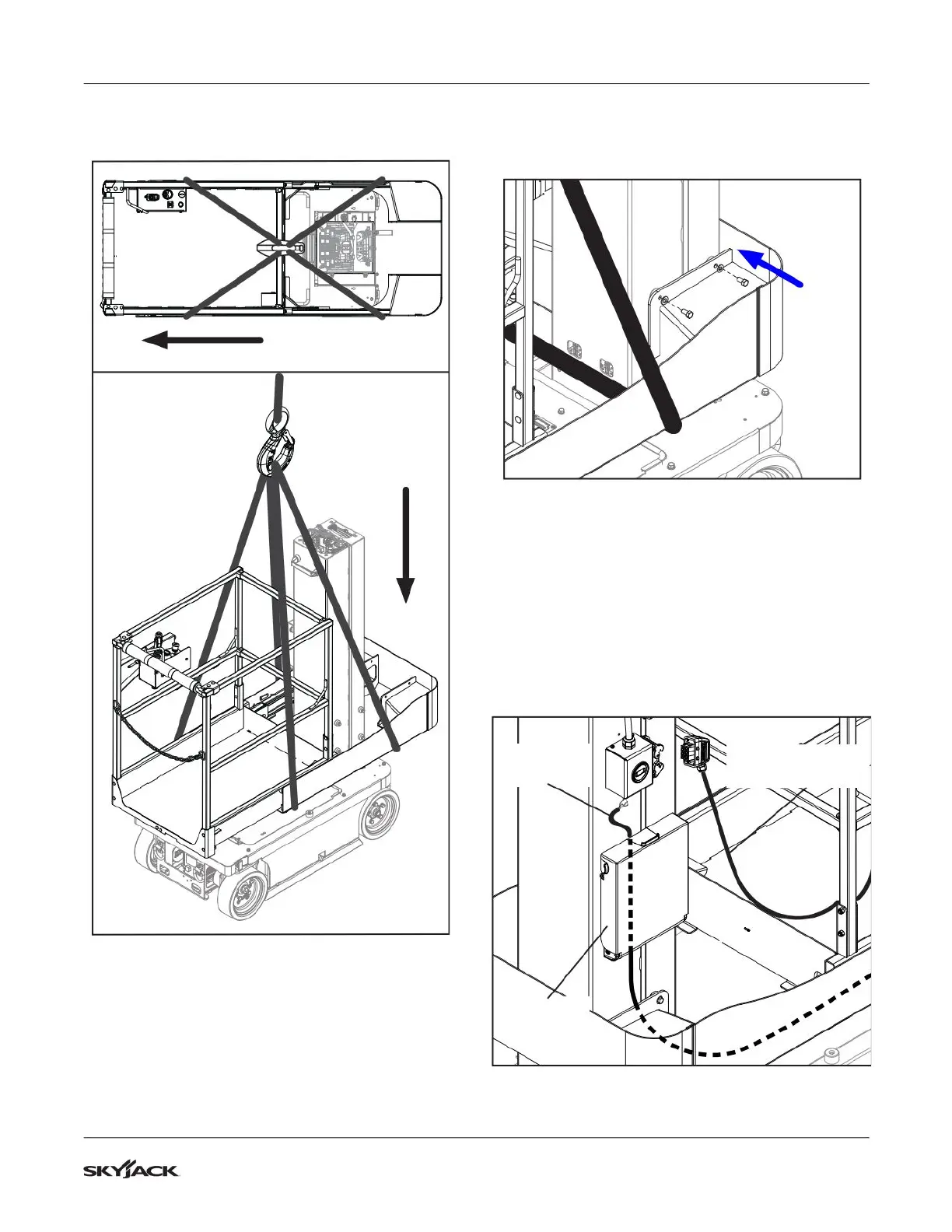

Figure 65 Platform Installation
4. Apply Loctite 242 (blue) to the threads of the
upper 4 bolts then install them with the washers.
Torque to 23 ft-lb (31 N·m).
Figure 66 Platform Upper Bolts Installation
5. Route the limit switch harness through the
plastic clips and behind the manual box.
6. Route the limit switch harness through the
strain connector at the bottom of the enclosure
box then connect the wires to the appropriate
terminal block. Refer to section 3.22 Limit
Switches.
7. Connect the platform control cable quick
connector.
Platform Control
Cable
Limit Switch
Harness
Manual Box
Figure 67 Platform Harnesses Installation

Skyjack SJ16 Specifications

General

Gradeability	25%
Drive Motor	24V DC
Max Gradeability	25%
Platform Height	16 ft
Lift Capacity	500 lbs
Machine Width	0.76 m
Overall Width	0.76 m
Drive Speed (Stowed)	4.8 km/h
Drive Speed (Raised)	0.8 km/h
Turning Radius (Inside)	0 in
Power Source	24V DC Electric
