Skyjack SJ16 Service Manual

127
SJ12, SJ16
213558ADA
Mast Roller Replacement Section 5 – Procedures
5.14-4 Mast Section 4 Installation.
1. Pull the chains attached to mast section 2 out of
the mast column and lay them against the front
of mast section 3.

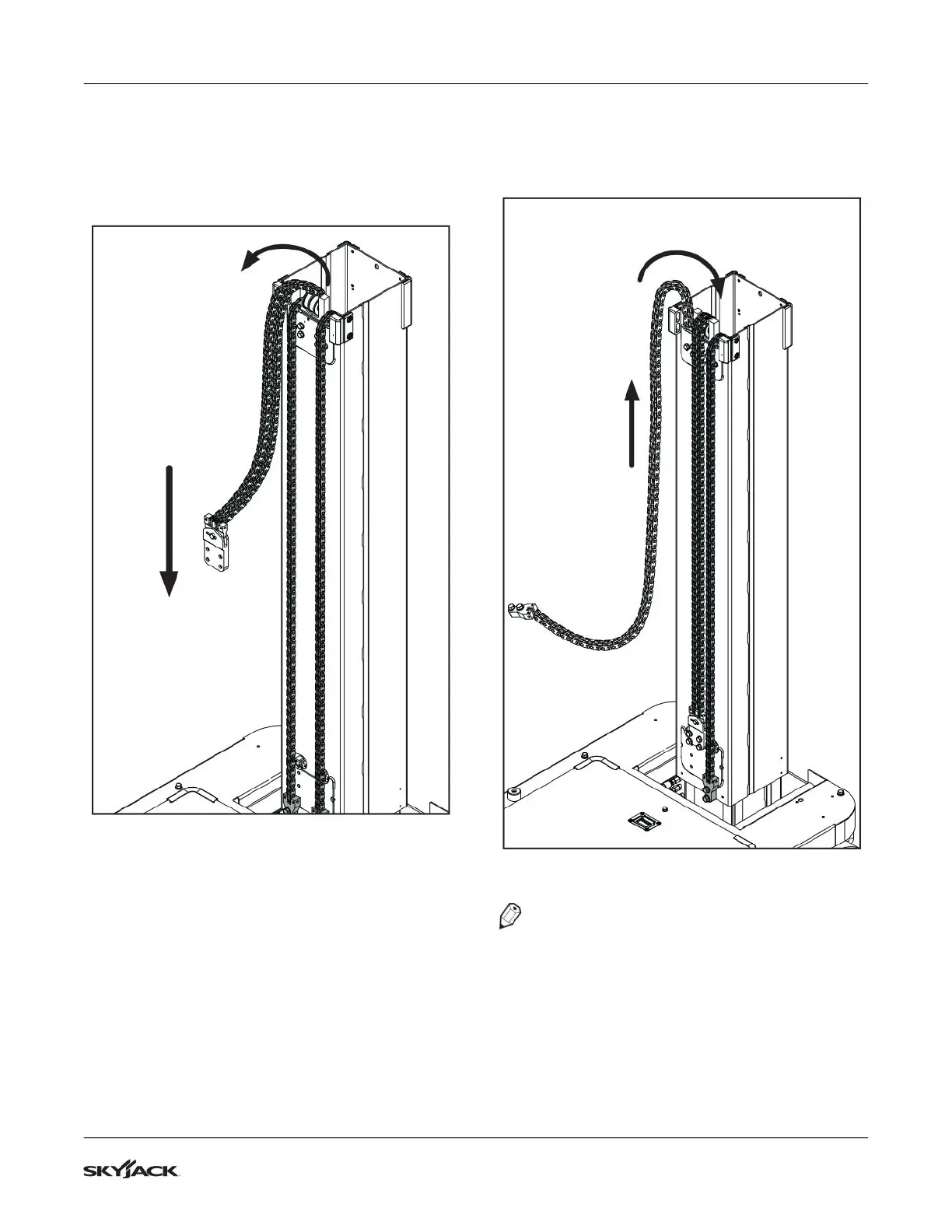

Figure 56 Section 2 to Section 4 Chains
2. (SJ16 Only) Pull the chains attached to mast
section 3 up and over the double rollers so they
can drop into the mast column. Make sure they
do not tangle.
Figure 57 Section 3 Chains (SJ16 Only)
NOTE
It is recommended that 2 lifting straps (or similar)
be attached evenly to mast section 4 for a
straight, even lift.

Skyjack SJ16 Specifications

General

Gradeability	25%
Drive Motor	24V DC
Max Gradeability	25%
Platform Height	16 ft
Lift Capacity	500 lbs
Machine Width	0.76 m
Overall Width	0.76 m
Drive Speed (Stowed)	4.8 km/h
Drive Speed (Raised)	0.8 km/h
Turning Radius (Inside)	0 in
Power Source	24V DC Electric
