Section 5 – Procedures Mast Chain Visual Inspection
6. Lift mast section 2 up and away from the mast
column. Make sure the harnesses and the
control cable enclosure box are clear. Set the
mast section aside.

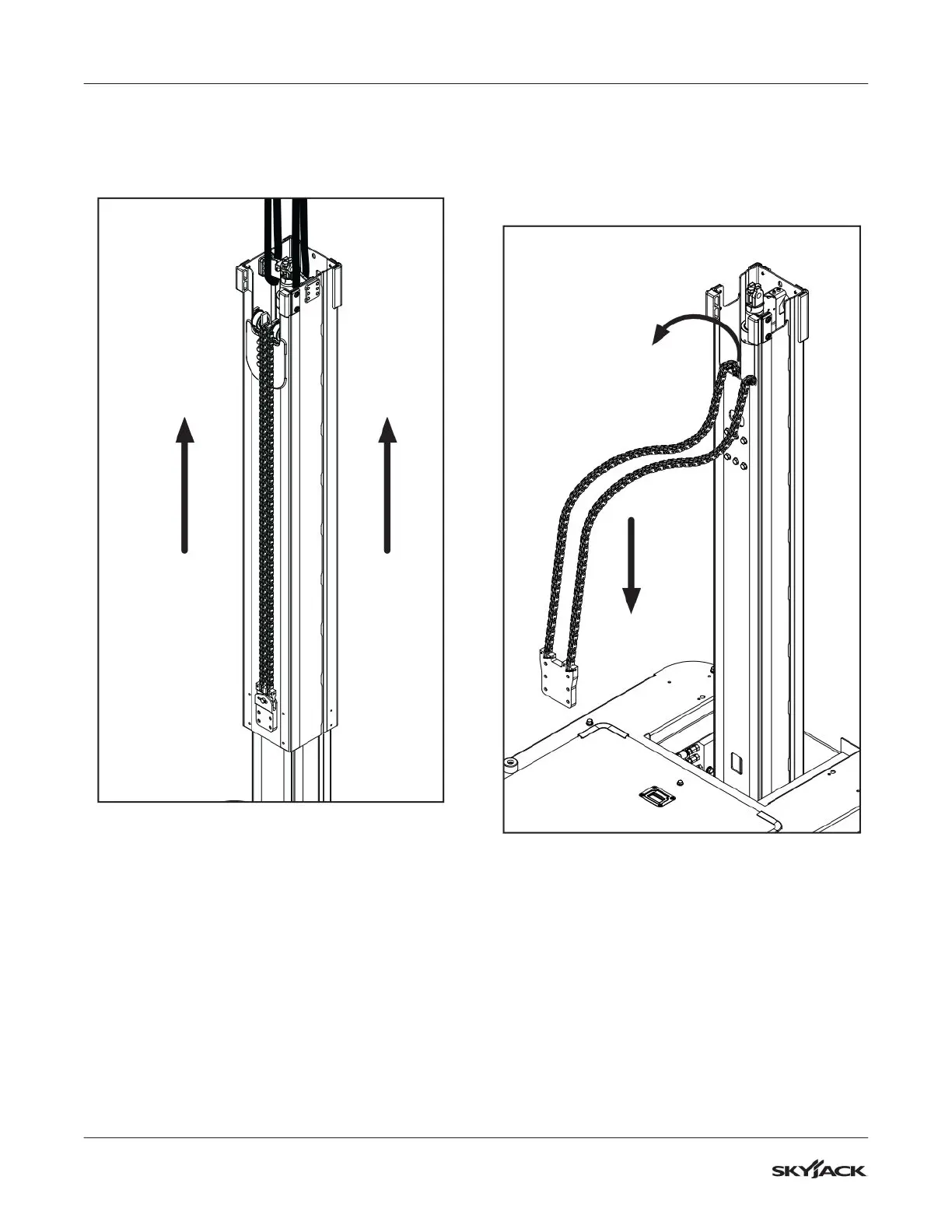

Figure 37 Section 2 Removal
5.12-6 Mast Section 1 Removal
1. Pull the chains attached to mast section 1 out of
the mast column and lay them against the front
of the mast.
Figure 38 Section 1 Chains

Skyjack SJ16 Specifications

General

Gradeability	25%
Drive Motor	24V DC
Max Gradeability	25%
Platform Height	16 ft
Lift Capacity	500 lbs
Machine Width	0.76 m
Overall Width	0.76 m
Drive Speed (Stowed)	4.8 km/h
Drive Speed (Raised)	0.8 km/h
Turning Radius (Inside)	0 in
Power Source	24V DC Electric
