Skyjack SJ16 Service Manual

121
SJ12, SJ16
213558ADA
Mast Chain Visual Inspection Section 5 – Procedures
NOTE
It is recommended that 2 lifting straps (or similar)
be attached evenly to mast section 1 for a
straight, even lift.

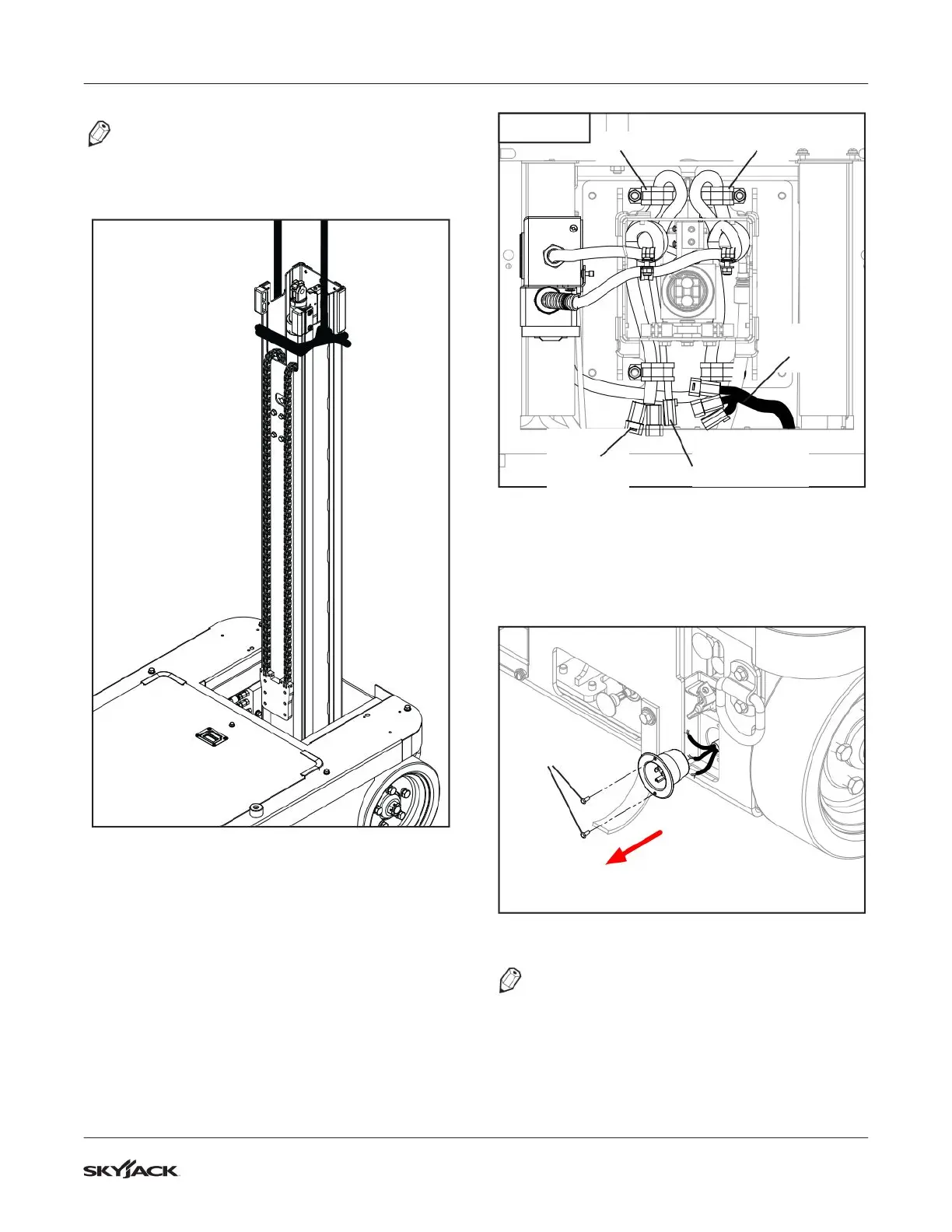

Figure 39 Mast Section 1 Secured
2. Remove the 4 clamps that secure the harnesses
to the mast base, then disconnect the two
harness plug connectors and the mast limit
switch harness.
Top View
Clamp
Limit Switch
Harness
Main
Harness
Platform
Control
Harness
Clamp
Figure 40 Harnesses Disconnection
3. Remove the rivets securing the power inlet at the
base of the mast. Disconnect the wires from it
and pull the harness through from the inside of
the base so that it is clear. (ANSI/CSA Only)
Rivet
Figure 41 Power Inlet Removal
NOTE
Disconnect the harness ground wire connected
to a mast mounting bolt at the base of the mast.

Skyjack SJ16 Specifications

General

Gradeability	25%
Drive Motor	24V DC
Max Gradeability	25%
Platform Height	16 ft
Lift Capacity	500 lbs
Machine Width	0.76 m
Overall Width	0.76 m
Drive Speed (Stowed)	4.8 km/h
Drive Speed (Raised)	0.8 km/h
Turning Radius (Inside)	0 in
Power Source	24V DC Electric
