Skyjack SJ16 Service Manual

135
SJ12, SJ16
213558ADA
Lift Cylinder Replacement Section 5 – Procedures

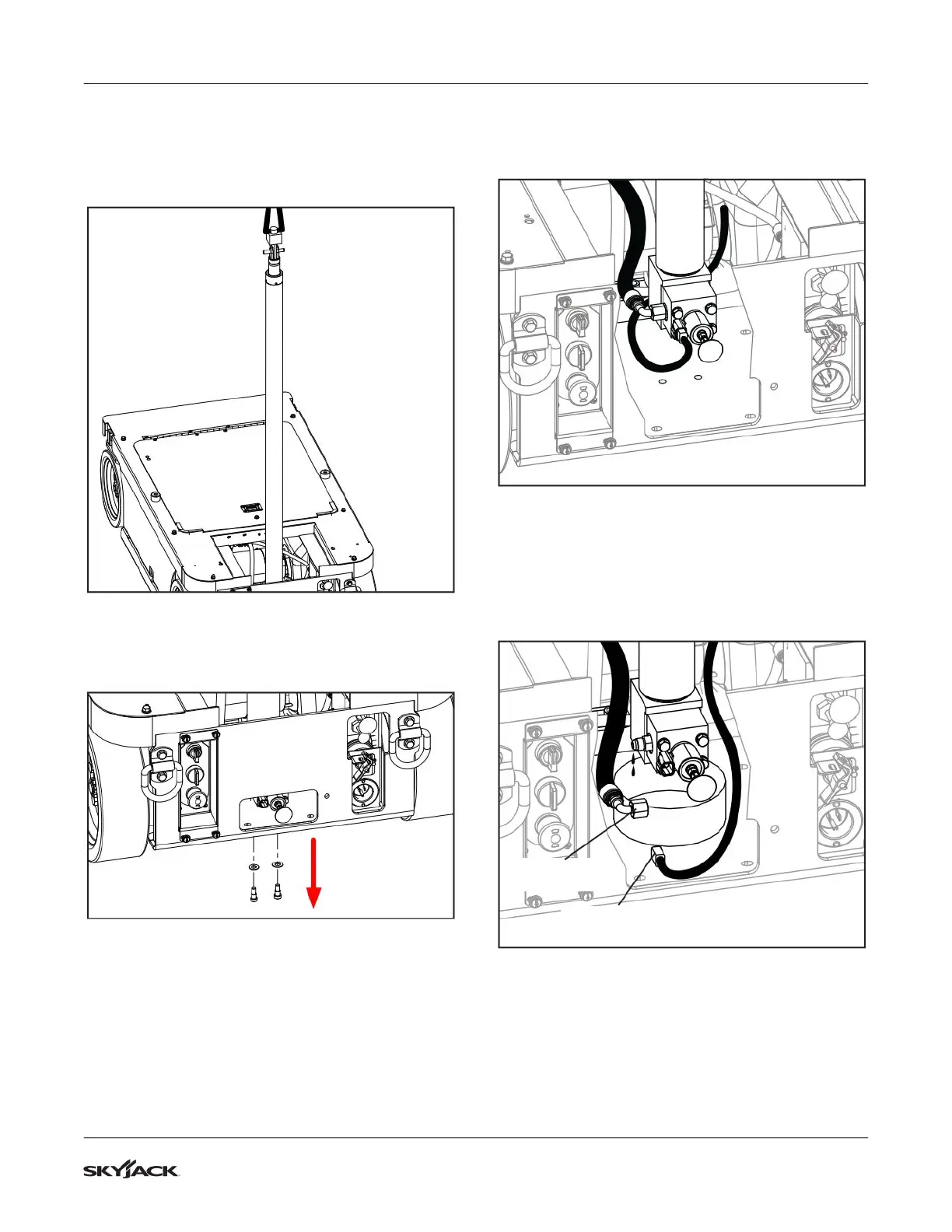

5.15-3 Lift Cylinder Removal
1. Attach appropriate slings at the top of the
cylinder to secure it.
Figure 77 Cylinder Secured
2. Remove the 2 socket head screws and flat
washers at the base of the cylinder.
Figure 78 Cylinder Hardware
3. Carefully raise the cylinder approximately 4 in
(10 cm). Make sure the valve at the base of the
cylinder is clear.
Figure 79 Cylinder Manifold
4. Place a suitable container underneath to catch
any escaping oil. Disconnect the hydraulic hose
at the base of the cylinder and the harness
connected to the valve. Install caps on all fittings
(hose and valve).
Disconnect
Hose
D i s c o n n e ct
Harness
Figure 80 Manifold Hose and Harness Disconnection
5. Lift the cylinder carefully out of the base while
ensuring the valve on the base of the cylinder is
clear.

Skyjack SJ16 Specifications

General

Gradeability	25%
Drive Motor	24V DC
Max Gradeability	25%
Platform Height	16 ft
Lift Capacity	500 lbs
Machine Width	0.76 m
Overall Width	0.76 m
Drive Speed (Stowed)	4.8 km/h
Drive Speed (Raised)	0.8 km/h
Turning Radius (Inside)	0 in
Power Source	24V DC Electric
