Skyjack SJ16 Service Manual

134
213558ADA
SJ12, SJ16
Section 5 – Procedures Lift Cylinder Replacement
5. Disconnect the two harness plug connectors
and the mast limit switch harness.
6. Remove all clamps securing the harnesses to
the mast base.
Top View
Disconnect
Harness
Plugs

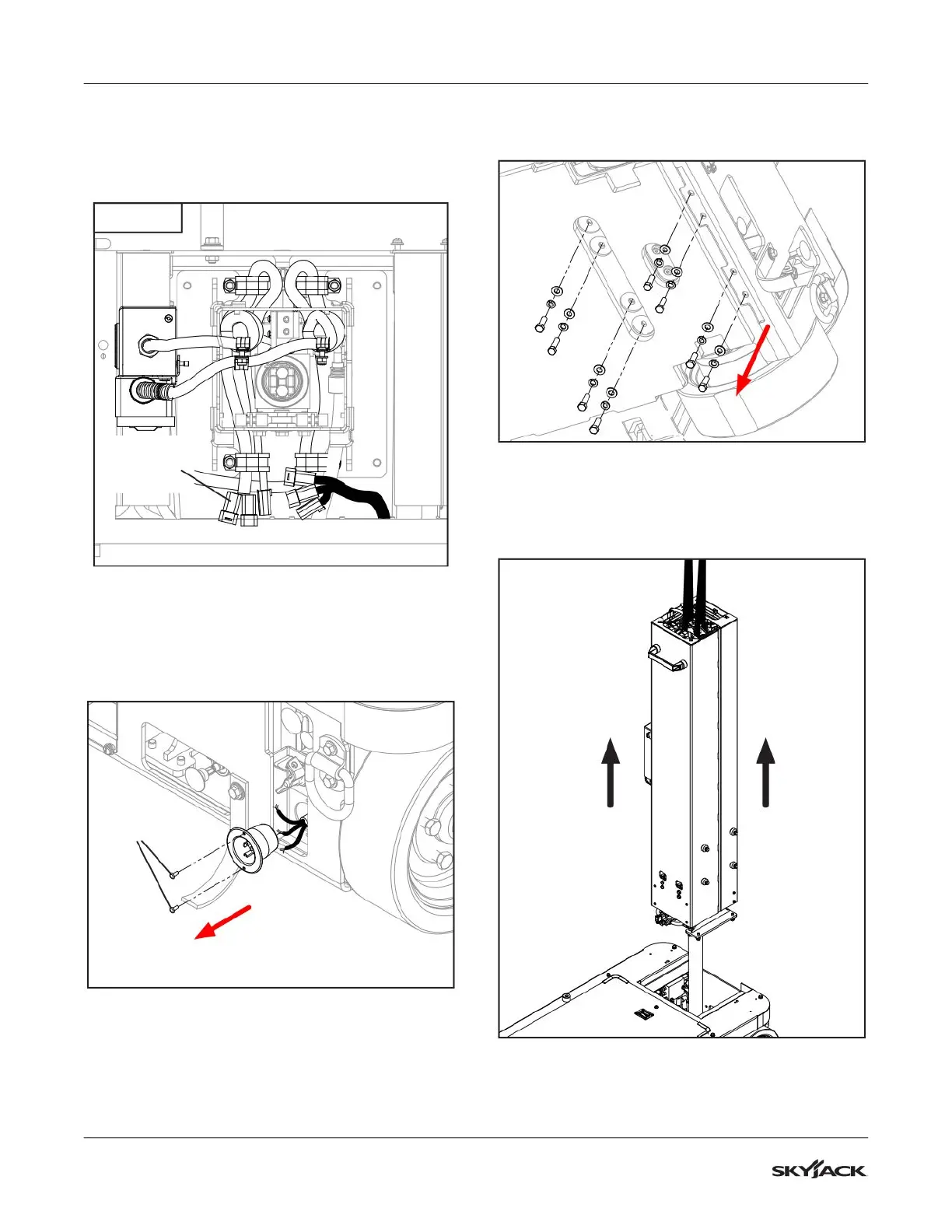

Figure 73 Harness Disconnection
7. Remove the rivets securing the power inlet at the
base of the mast, then disconnect the wires and
pull the harness through from the inside of the
base so that it is clear.(ANSI/CSA Only)
Rivet
Figure 74 Power Inlet Removal
8. Lower the mast so that is slightly supported by
the lifting straps.
9. Remove all hardware securing the mast to the
base as shown.
Figure 75 Mast Hardware Removal
10. Lift the mast assembly straight up and off the
cylinder, ensuring the harnesses are clear. Set
the mast aside.
Figure 76 Mast Removal

Skyjack SJ16 Specifications

General

Gradeability	25%
Drive Motor	24V DC
Max Gradeability	25%
Platform Height	16 ft
Lift Capacity	500 lbs
Machine Width	0.76 m
Overall Width	0.76 m
Drive Speed (Stowed)	4.8 km/h
Drive Speed (Raised)	0.8 km/h
Turning Radius (Inside)	0 in
Power Source	24V DC Electric
