Lift Cylinder Replacement Section 5 – Procedures
2. Remove the hydraulic cylinder rod pin securing
the cylinder to the mount bracket.
Rod Pin
Cotter Pin

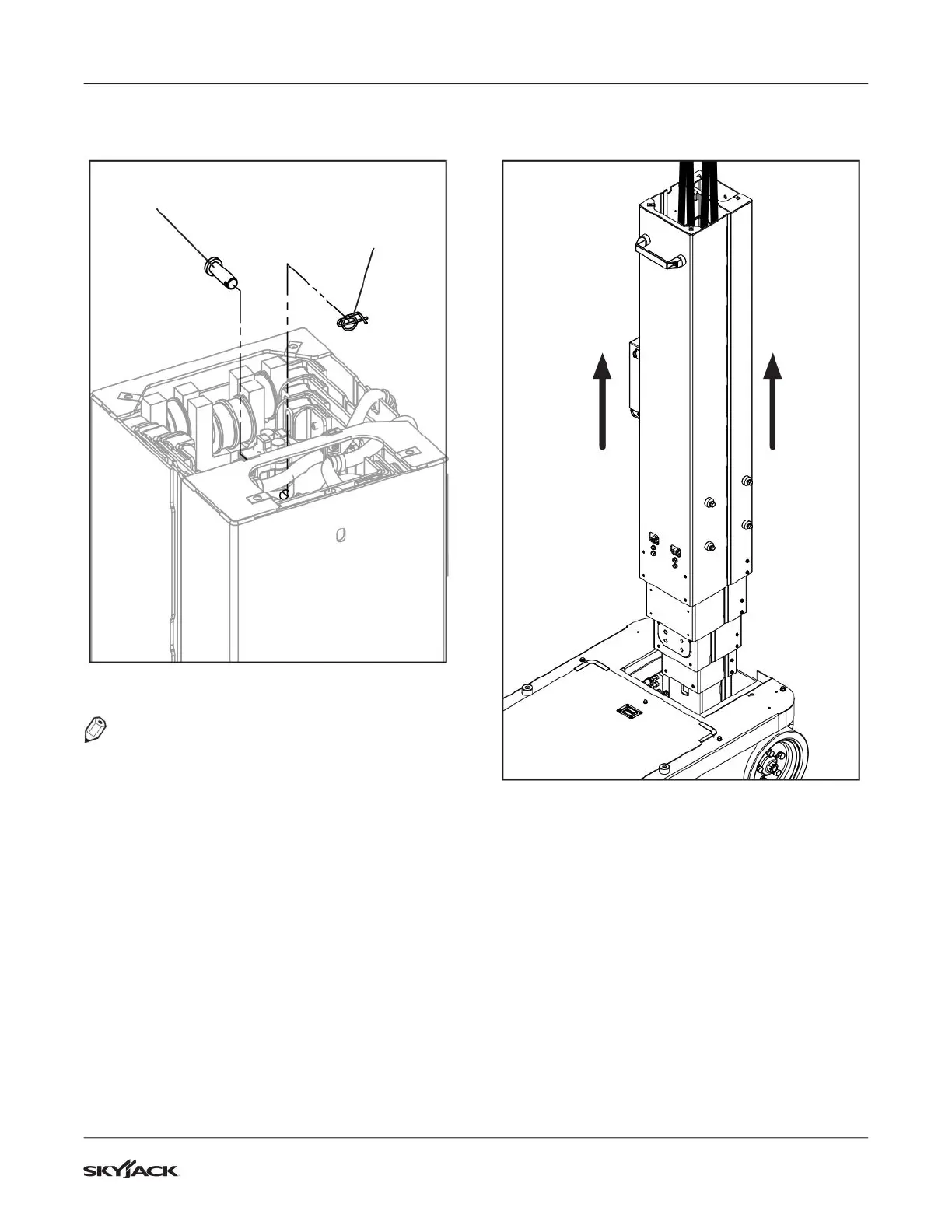

Figure 71 Rod Pin Removal
NOTE
It is recommended that 2 lifting straps (or similar)
be attached evenly to the cylinder mounting
bracket on mast section 2 for a straight, even lift.
3. Lift the mast enough to reach the harness plug
connectors at the base.
Figure 72 Mast Positioning
4. Turn the main power disconnect switch to the off
position.
