Skyjack SJ16 Service Manual

A B C D E F G H
V
Z
Y
X
W
54
SJ12, SJ16
213558ADA

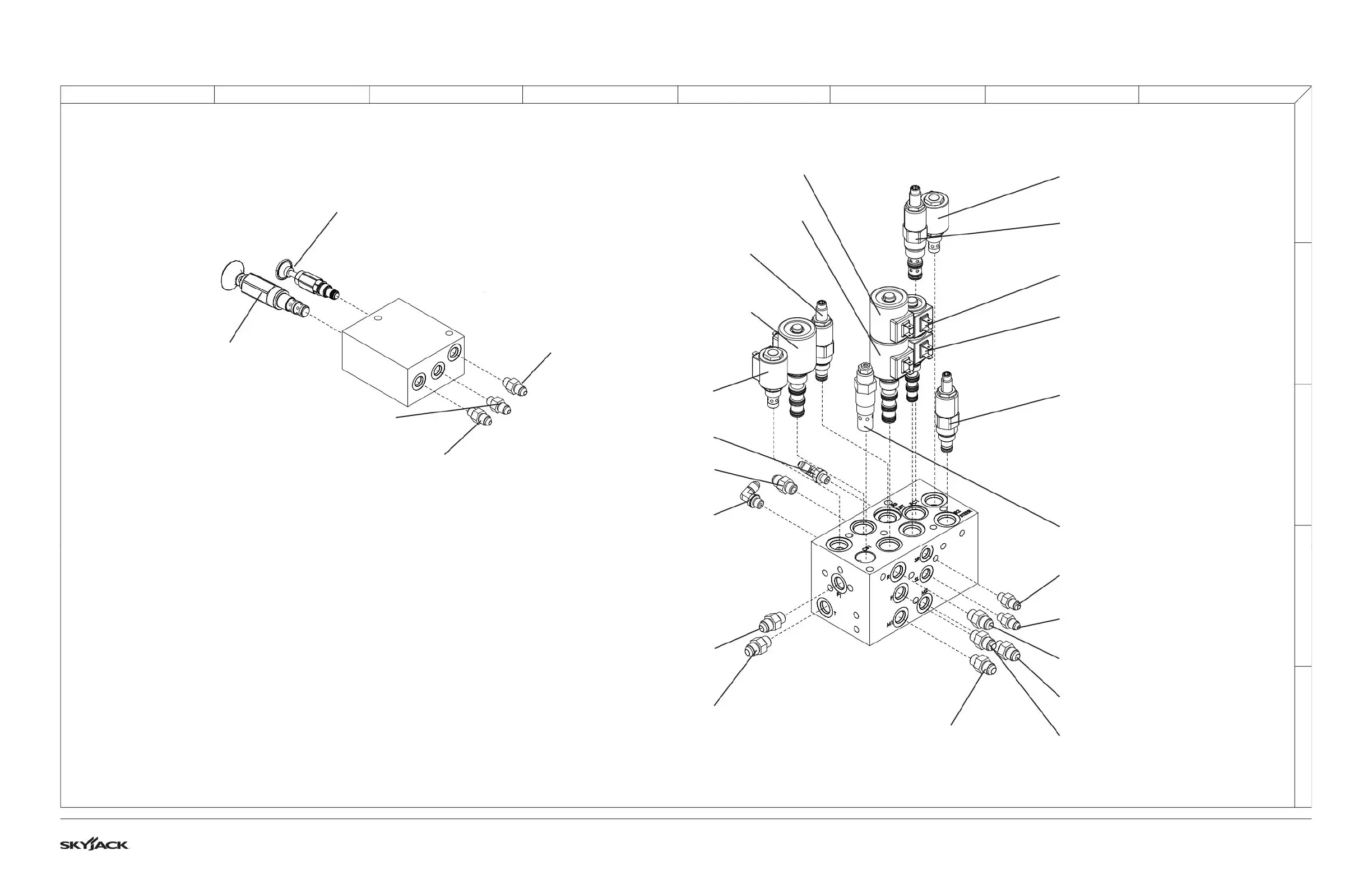

3.14 Brake and Main Manifold and Hydraulic Identifications
M158154AB_4
B1
To Right Brake
B2
To Left Brake
MB3
Brake Manifold
V1
Auto Reset Valve
HP1
Hand Pump
SR
To Steer Cylinder
SL
To Steer Cylinder
R
To Right Drive Motor
M2
To Right Drive Motor
F
To Left Drive Motor
M1
To Left Drive Motor
T
To Powerpack Manifold
P1
To Powerpack Manifold
PH
To Pothole Cylinder
B
To Brake Manifold
L
To Lift Cylinder
2H-17
Brake Valve
FC1
Priority Steer Valve
4H-23
Right Steer Valve
4H-24
Left Steer Valve
R2
Steering Relief Valve
4H-15A
Reverse Drive Valve
4H-16A
Forward Drive Valve
R3
Lift Relief valve
4H-14A
Lift Valve
2H-21
Pothole Valve
To Main Manifold
CB1
Counterbalance Valve
MB2
Main Manifold

Skyjack SJ16 Specifications

General

Gradeability	25%
Drive Motor	24V DC
Max Gradeability	25%
Platform Height	16 ft
Lift Capacity	500 lbs
Machine Width	0.76 m
Overall Width	0.76 m
Drive Speed (Stowed)	4.8 km/h
Drive Speed (Raised)	0.8 km/h
Turning Radius (Inside)	0 in
Power Source	24V DC Electric
