Skyjack SJ16 Service Manual

116
213558ADA
SJ12, SJ16
Section 5 – Procedures Mast Chain Visual Inspection
5.12-4 Mast Section 3 Removal

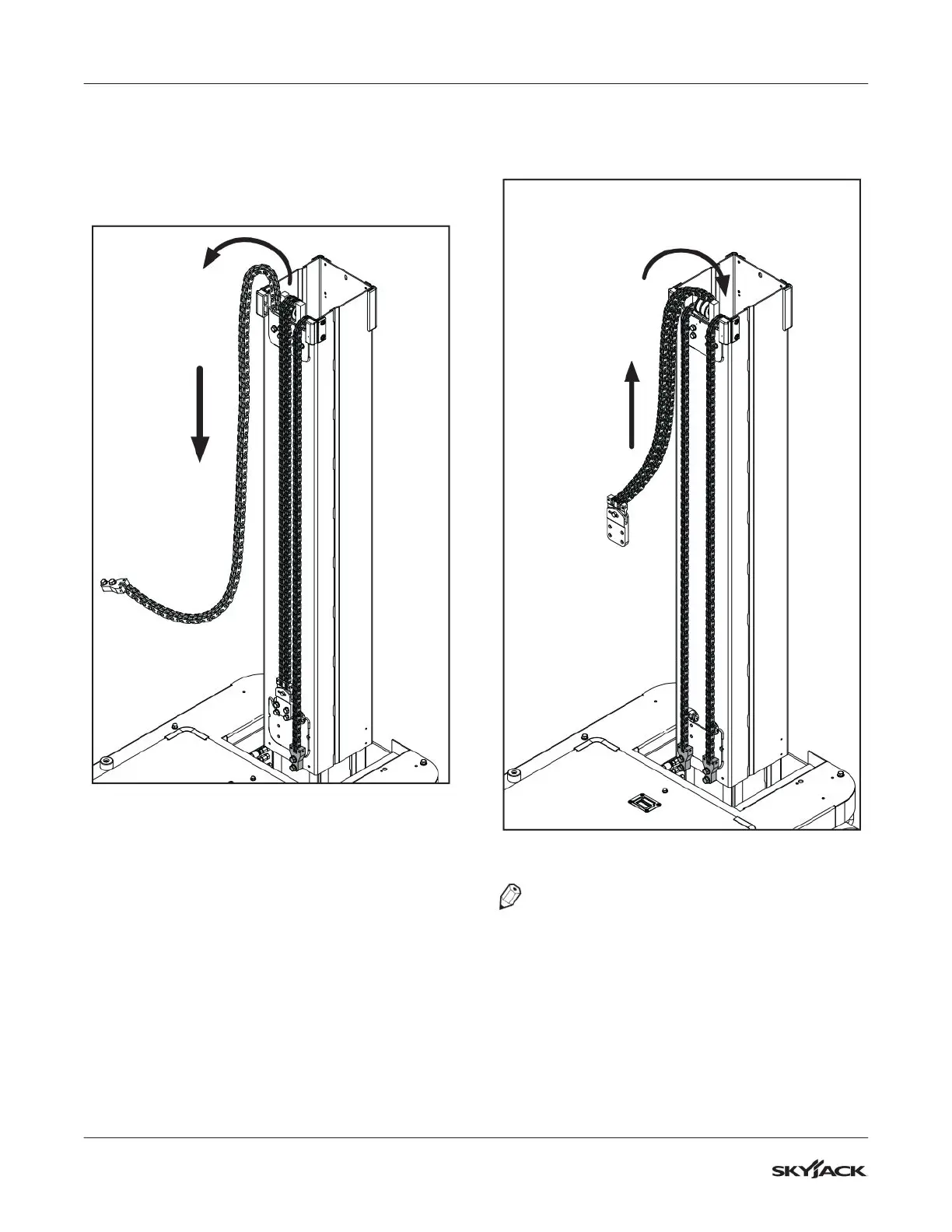

1. (SJ16 Only) Pull the chains attached to mast
section 3 out of the mast column and lay them
against the front of mast section 3.
Figure 28 Section 3 Chains (SJ16 Only)
2. vPull the chains attached to mast section 2 up
and over the double rollers so they can drop into
the mast column. Make sure they do not tangle.
Figure 29 Section 2 to Section 4 Chains
NOTE
It is recommended that 2 lifting straps (or similar)
be attached evenly to mast section 3 for a
straight, even lift.

Skyjack SJ16 Specifications

General

Gradeability	25%
Drive Motor	24V DC
Max Gradeability	25%
Platform Height	16 ft
Lift Capacity	500 lbs
Machine Width	0.76 m
Overall Width	0.76 m
Drive Speed (Stowed)	4.8 km/h
Drive Speed (Raised)	0.8 km/h
Turning Radius (Inside)	0 in
Power Source	24V DC Electric
