Chapter 2 Name of Parts
2.1 Appearance HRS Series
2-2
Circulating fluid
level gauge
Ventilation air inlet
Dustproof filter
Lid for circulating fluid fill port
Operation display panel
(660)[mm ] (26)[in]
(35)[mm ] (1.4)[in]
(500)[mm
]
(19.7)[in]
(21)[mm
]
(0.8)[in]
Power switch
Power cable hole
Drain port
(With plug)
Circulating fluid return port
Rc1/2
Circulating fluid outlet port
Rc1/2
Model no. label
Facility water outlet Rc3/8
(For water-cooled type)
Optuon B
【Earth leakage
breaker】
Drain port
Rc1/4
Option T
【High pressure pump specifications】
Option J
【Automatic water-fill specifications】
Automatic water-fill port Rc3/8
Overflow port Rc3/4
Vent hole
(Same vent hole locates
on the opposite side)
(For air-cooled type)
(377)[mm
]
(14.8)[in]
Facility water inlet Rc3/8
(For water-cooled type)
Ventilation air outlet

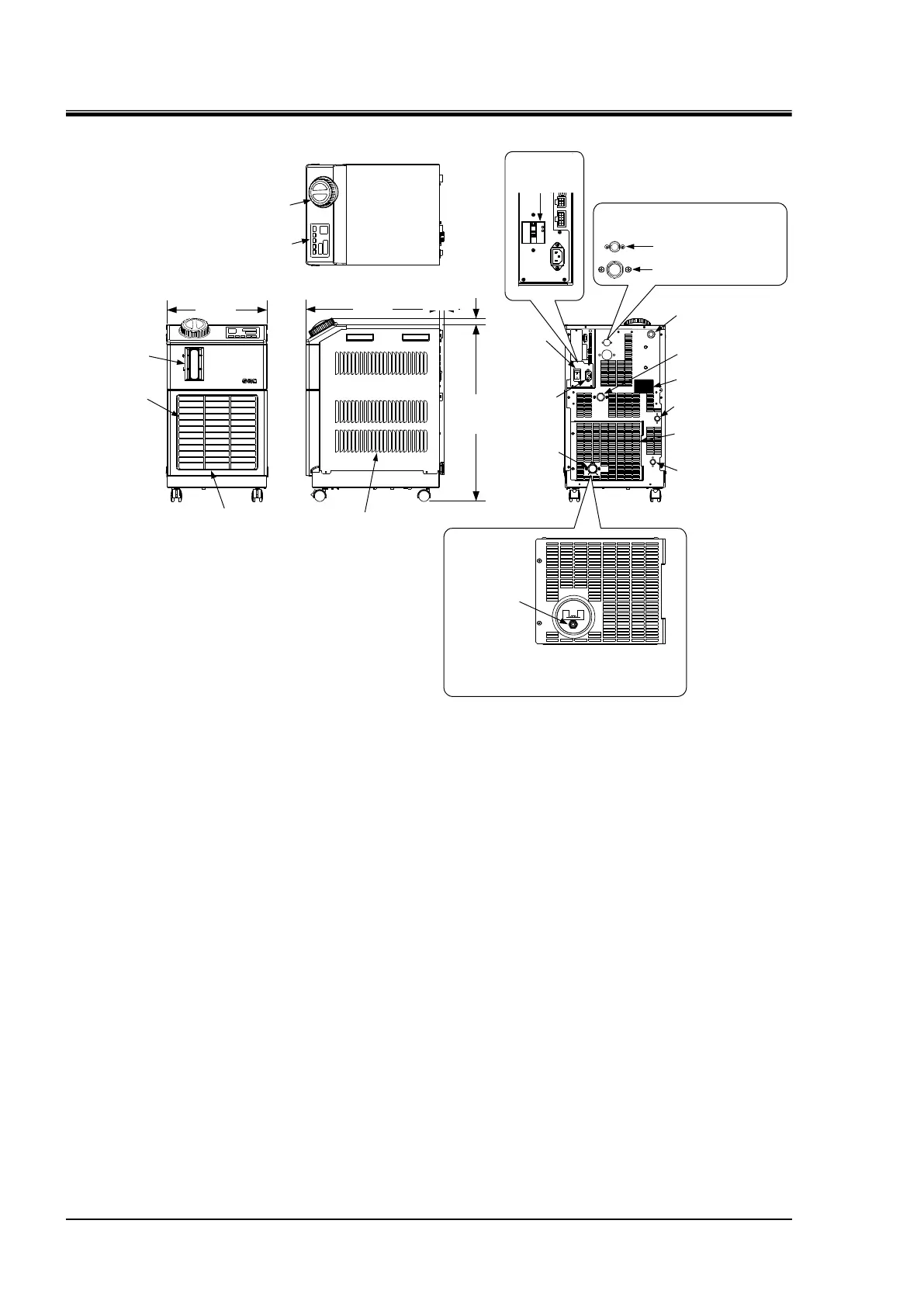

Fig.2.1-2 Name of Parts (HRS030--20-)
