HRX-MM-N007
Chapter 4 Service Procedure
4.5 Replacement Procedure HRS Series
Be sure to shut off the breaker of the facility power supply (the user’s
machine power supply) before replacement work.
4.5.8 Replacement of pressure sensor
＜HRS-A/W-＞
Table 4-15 Part number of service parts (Pressure sensor)
Pressure sensor (For circulating fluid)
Removal
1. Remove the upper panel and the side panel on the right referring the 4.2.1 Removal and the
mounting of the panel.
2. Remove the connector of the pressure sensor cable (PS1) from the pressure sensor.
3. Remove the pressure sensor.

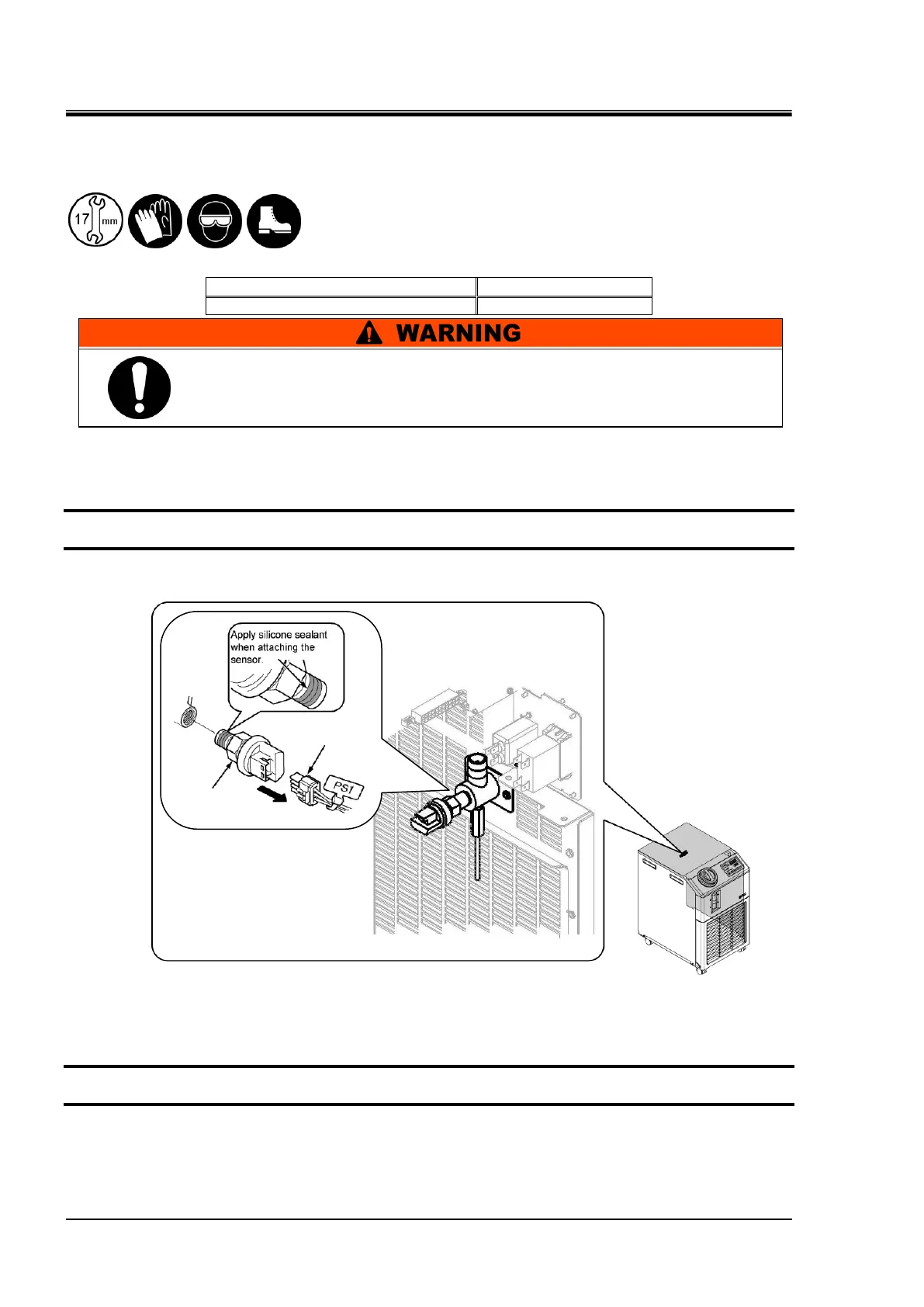

Fig. 4.5-16 Removal of pressure sensor
Mounting
1. Apply a liquid gasket to the threads of the pressure sensor and mount it.
2. Mount the connector or the pressure sensor cable (PS1) to the pressure sensor.
3. Mount the upper panel and the side panel on the right in reversed order of removal.
To Next Page
