HRX-MM-N007
Chapter 4 Service Procedure
4.5 Replacement Procedure HRS Series
Be sure to shut off the breaker of the facility power supply (the user’s
machine power supply) before replacement work.
4.5.13 Replacement of inlet socket
＜HRS-A/W-＞
Table 4-20 Part number of service parts (Inlet socket)
Removal
1. Remove the upper panel and the side panel on the right referring the 4.2.1 Removal and the
mounting of the panel.
2. Remove the connector. (7 locations)
3. Remove the plate. (Screw ×4)
4. Remove the inlet socket. (Screw ×2)

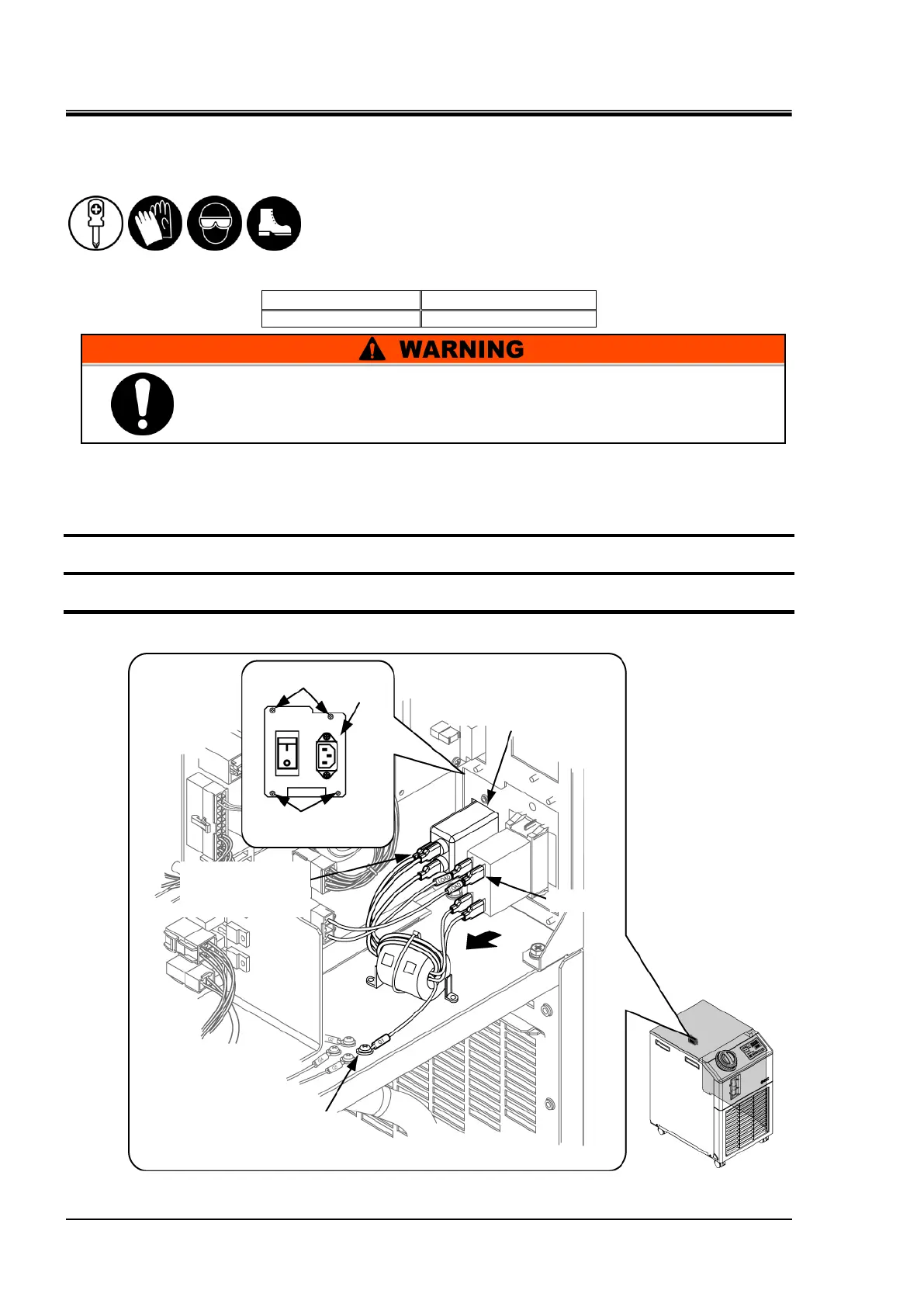

Fig. 4.5-28 Removal of inlet socket
2. Connector
(7 locations)
To Next Page
