Chapter 4 Service Procedure
4.2 Work Procedure HRS Series
4-2
4.2 Work Procedure
4.2.1 Removal and the mounting of the panel
 Removal
1. Remove the upper panel. (Screw ×2)
2. Remove the side panel. (Screw ×each right and left 6)
3. Remove the tank lid.
Remove the front panel. (Screw ×3)
 Pull out the connector from the display board to remove the front panel.
After removing the tank lid, remove the O-ring at the side of the fluid inlet with a pair
of tweezers.

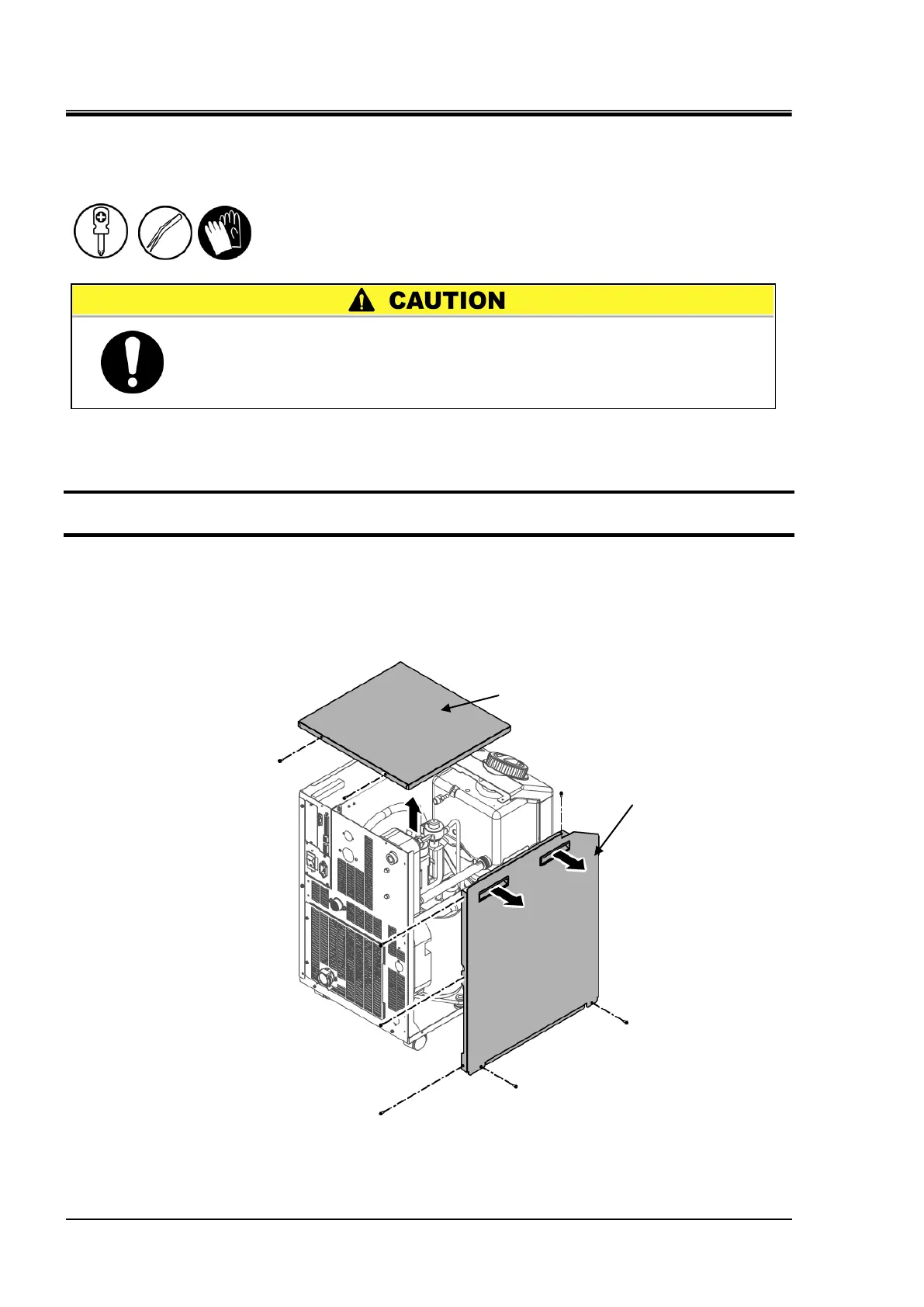

Fig. 4.2-1 Removal of panels
2. Left side panel
1.Upper panel
Be sure to wear protective footwear and gloves when attaching or
removing panels.
Sharp edges of the panels may lead to personal injury if not handled
properly.
