Chapter 3 Alarm Indication and Troubleshooting
HRS Series 3.3 Troubleshooting
3-7
3.3.3 Removal and the mounting of the panel
■ Removal
1. Remove the upper panel. (Screw ×2)
2. Remove the side panel. (Screw ×each right and left 6)

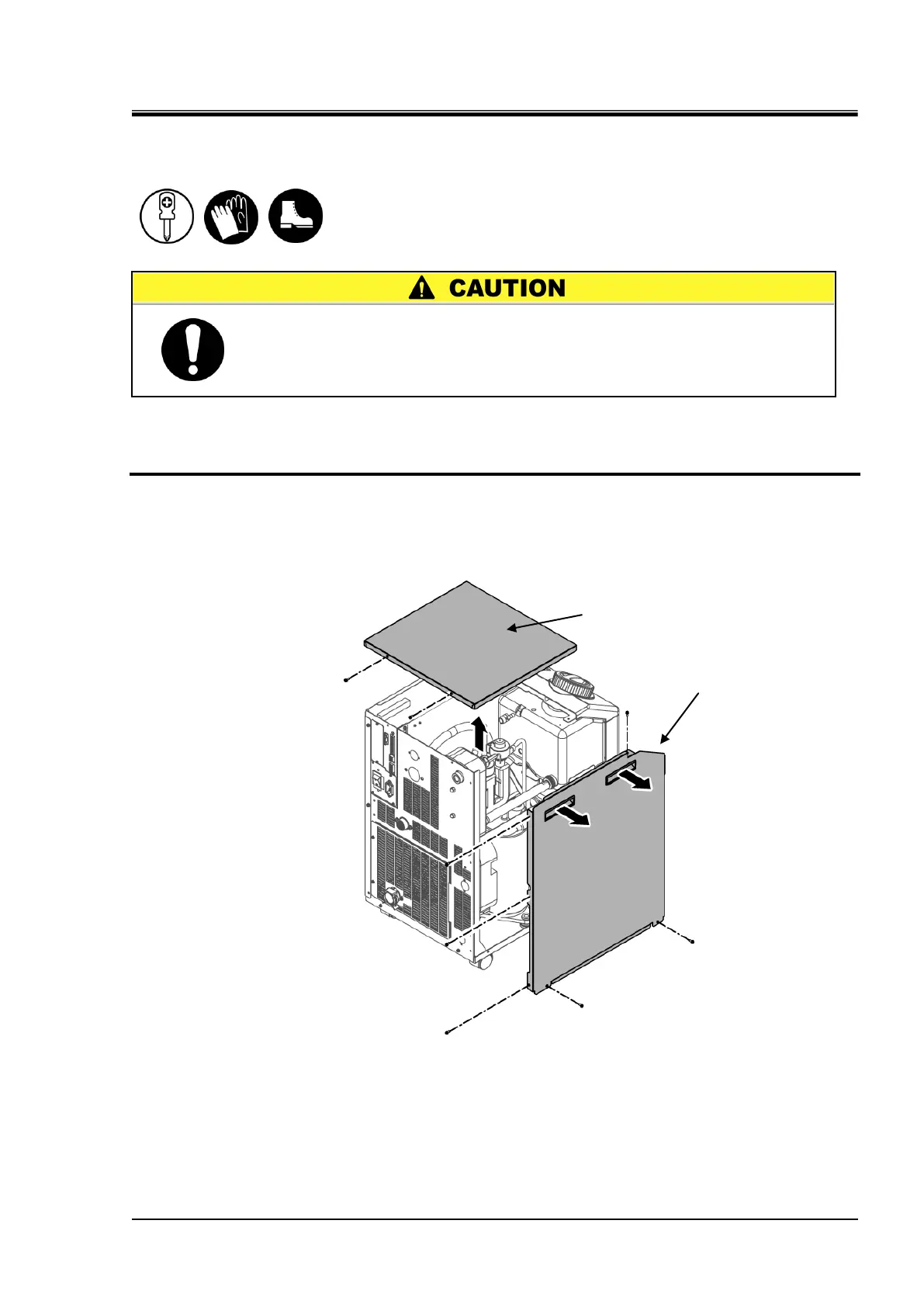

Fig. 3.3-1 Removal of panels
2. Left side panel
1. Upper panel
Be sure to wear protective footwear and gloves when attaching or
removing panels.
Sharp edges of the panels may lead to personal injury if not handled
properly.
