Chapter 3 Alarm Indication and Troubleshooting
HRS Series 3.3 Troubleshooting
3-29

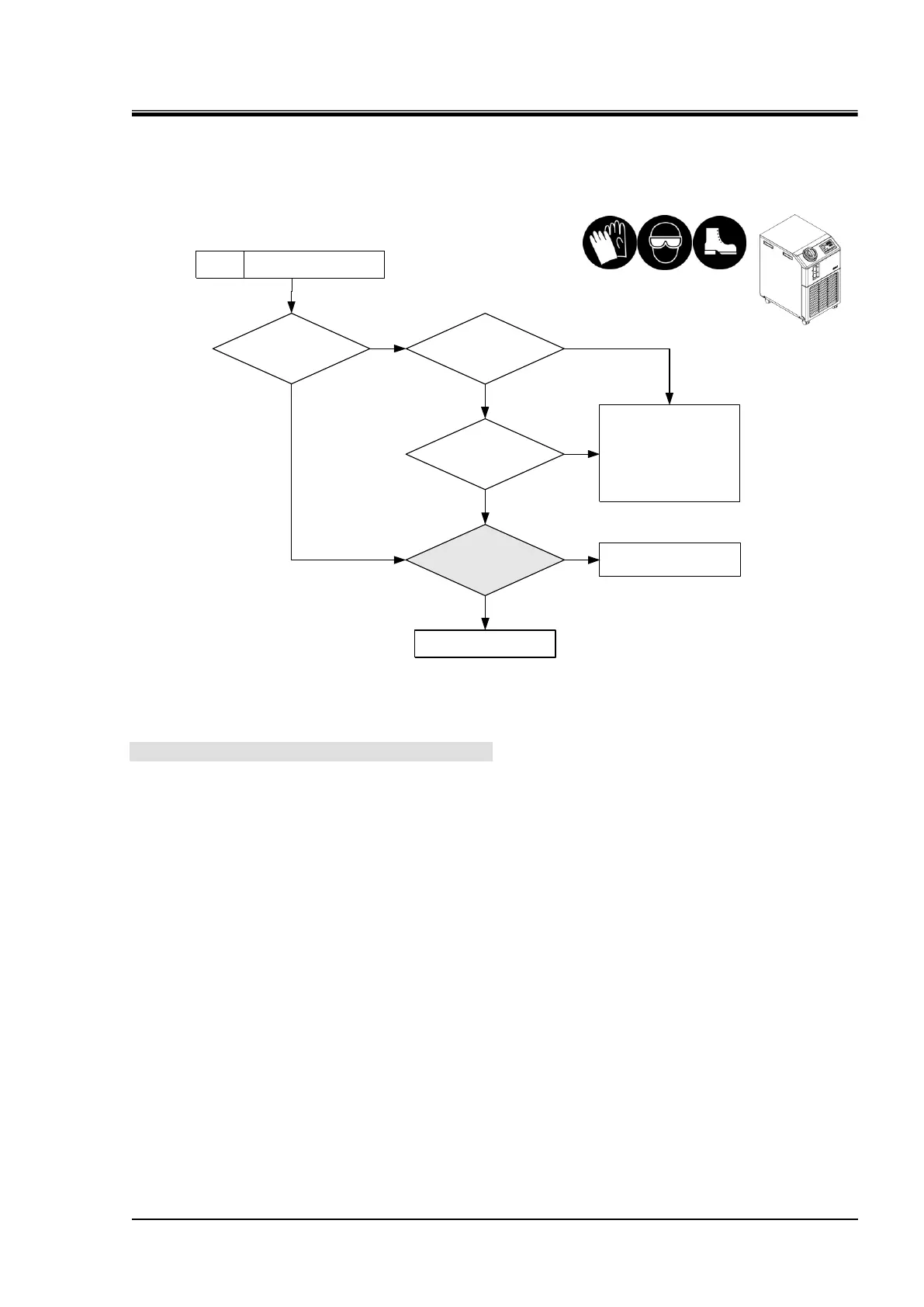

AL03: Circulating fluid discharge temp. rise
<Detection method> This alarm goes off when the temperature sensor for the circulating fluid (for
discharge) detects 45
o
C or more (can be changed).
Has the temperature
been changed from the
default (45
o
C)?
Does the alarm go
off when heat load
fluctuates?
Does the alarm
go off right after the Thermo-
Chiller starts/stops?
Y
N
Y
Y
N
N
Circulating fluid discharge
temp. rise
AL03
Use Alarm Customizing
Function.
(Refer to "Setting of
temperature alarm monitoring
method and alarm generation
timing" shown in Operation
Manual.)
1.
Check the external piping.
Error
Normal
See "AL02: High circulating
fluid discharge temp.".
Remove any causes of the
problems.
1. Check the external piping.
Check if the external piping is in the conditions shown below:
(1) The system has a circuit that high temperature circulating fluid returns to the Thermo-Chiller at
once due to an operation of the valve or the switching valve in the external piping.
(2) The system has a circuit that the circulating fluid that has been heated by a waste heat of the
workpiece that is cooled returns to the Thermo-Chiller at once when the Thermo-Chiller starts
operation.
