HRX-MM-N007
Chapter 4 Service Procedure
4.5 Replacement Procedure HRS Series
Be sure to shut off the breaker of the facility power supply (the user’s
machine power supply) before replacement work.
4.5.10 Replacement of front panel
＜HRS-A/W-＞
Table 4-17 Part number of service parts (Front panel)
*Refer to 1.4-1 Product label for serial No.
Removal
1. Remove the upper panel, the panels on both sides and the front panel referring the 4.2.1
Removal and the mounting of the panel.
2. Remove the display board.
[Tips]
Push the claws A at the back of the front panel with both
thumbs to open the front panel. Pull the display board with
fingers to remove the display board.

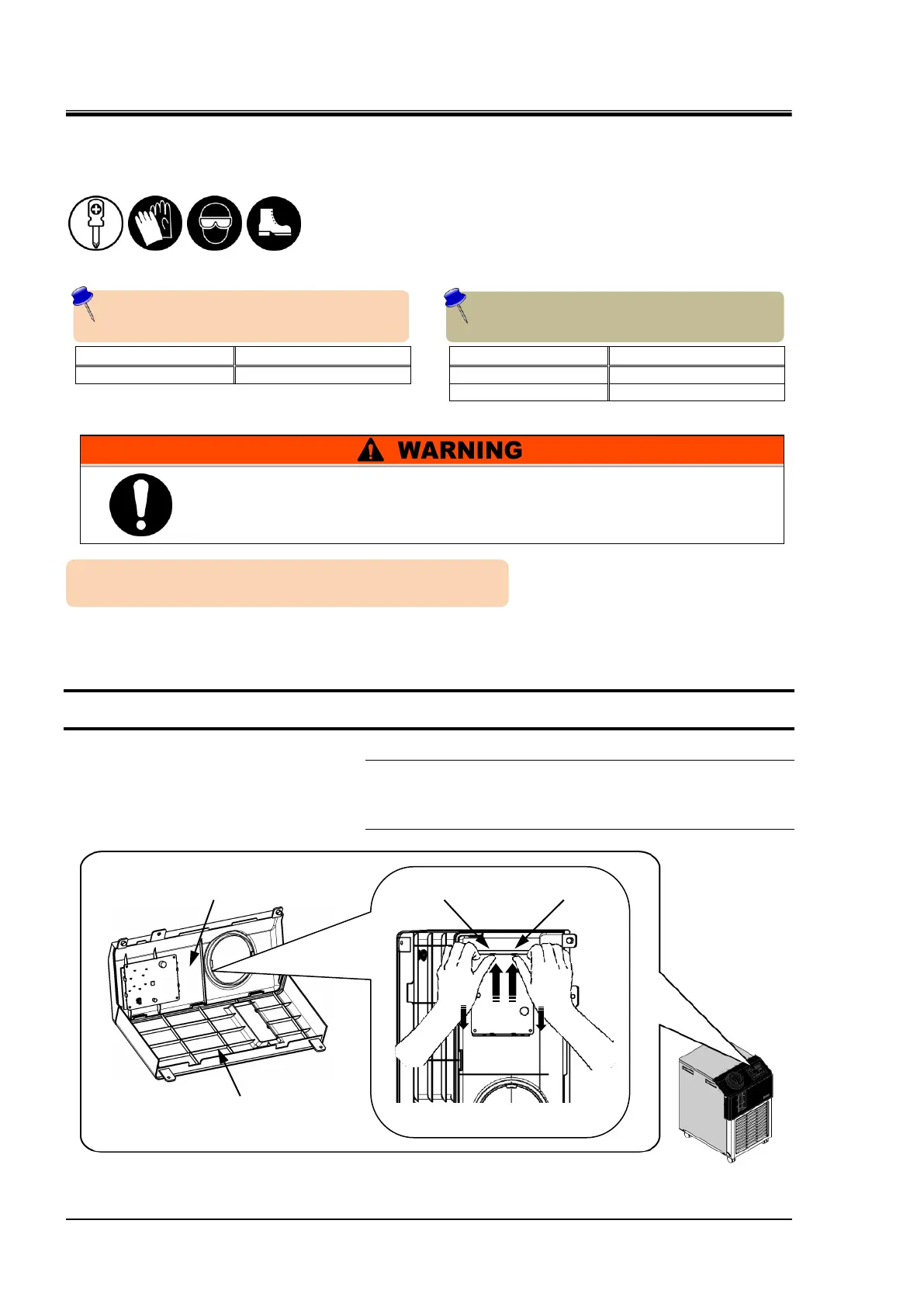

Fig. 4.5-18 Removal of front panel
From production in March 2015
(After serial No. TQ***)
Until production in February 2015
(Serial No. TP*** or earlier)
From production in March 2015 (After serial No. TQ***)
To Next Page
