Chapter 4 Service Procedure
4.5 Replacement Procedure HRS Series
4-44
Be sure to shut off the breaker of the facility power supply (the user’s
machine power supply) before replacement work.
4.5.14 Replacement of power switch
＜HRS-A/W-＞
Table 4-21 Part number of service parts (Power switch)
Description
Part number
Applicable models
Power switch (For 10A type)
HRS-S0020
・ ・For 200V type
・ (Except high pressure pump)
Power switch (For 15A type)
HRS-S0070
・ For 100V type
・For high pressure pump 200V type
 Removal
1. Remove the upper panel and the side panel on the right referring the 4.2.1 Removal and the
mounting of the panel.
2. Remove the connector. (7 locations)
3. Remove the plate. (Screw ×4)
4. Remove the power sitch.

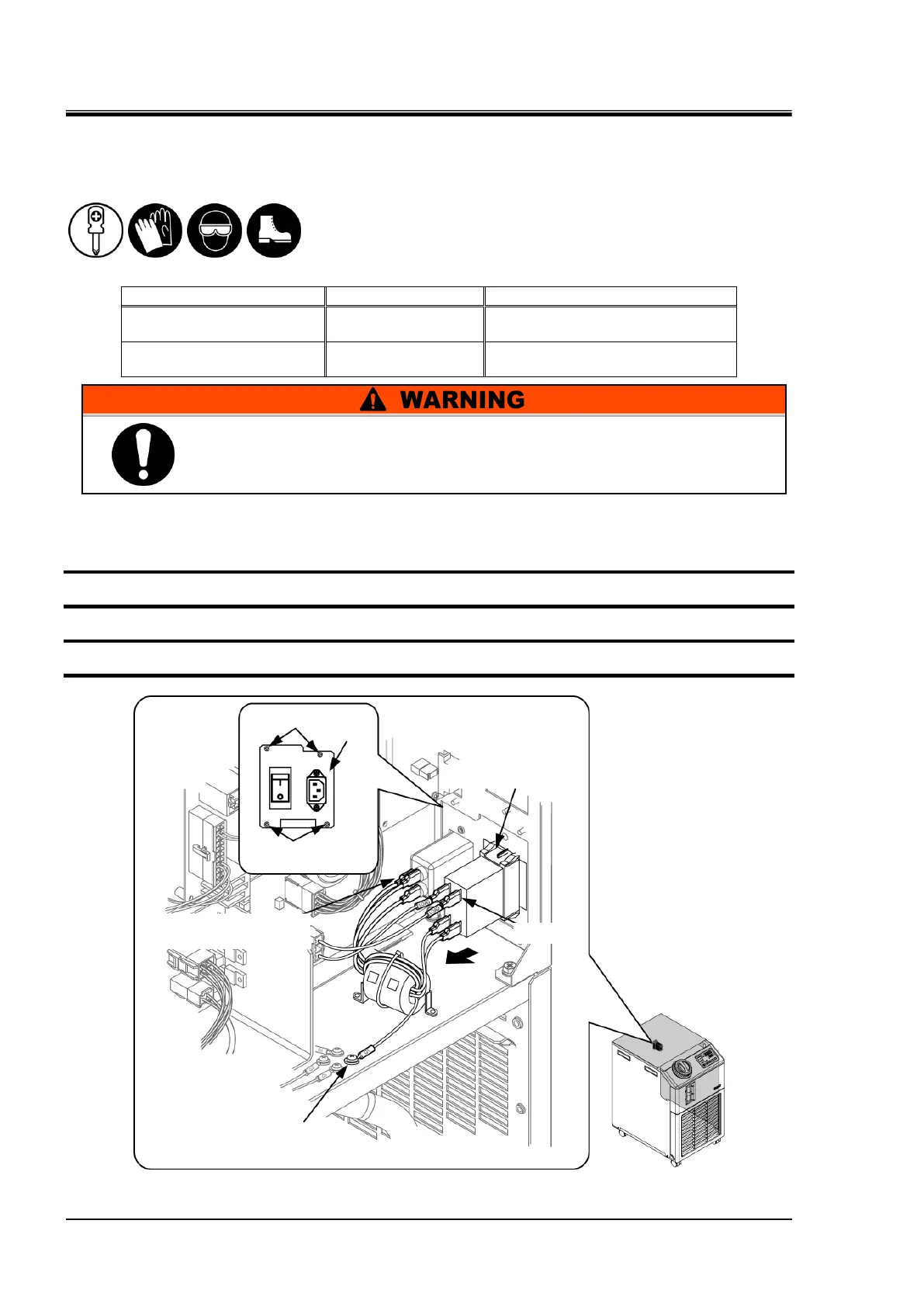

Fig. 4.5-31 Removal of power switch
2. Connector (7pcs.)
4. Power switch
Screw
Screw
Plate
3.
[LOAD]
[G1]
