SMC Networks HRS012-A-10 Series User Manual

HRX-MM-N007
Chapter 4 Service Procedure
4.5 Replacement Procedure HRS Series
4-50
Be sure to shut off the breaker of the facility power supply (the user’s
machine power supply) before replacement work.
4.5.17 Replacement of power board
＜HRS-A/W-＞
Table 4-24 Part number of service parts (Power board)
Description
Part number
Power board
HRS-S0019
 Removal
1. Remove the upper panel and the side panel on the right referring the 4.2.1 Removal and the
mounting of the panel.
2. Remove the connector of power board. (5 locations)
3. Remove the power board. (Screw ×2)

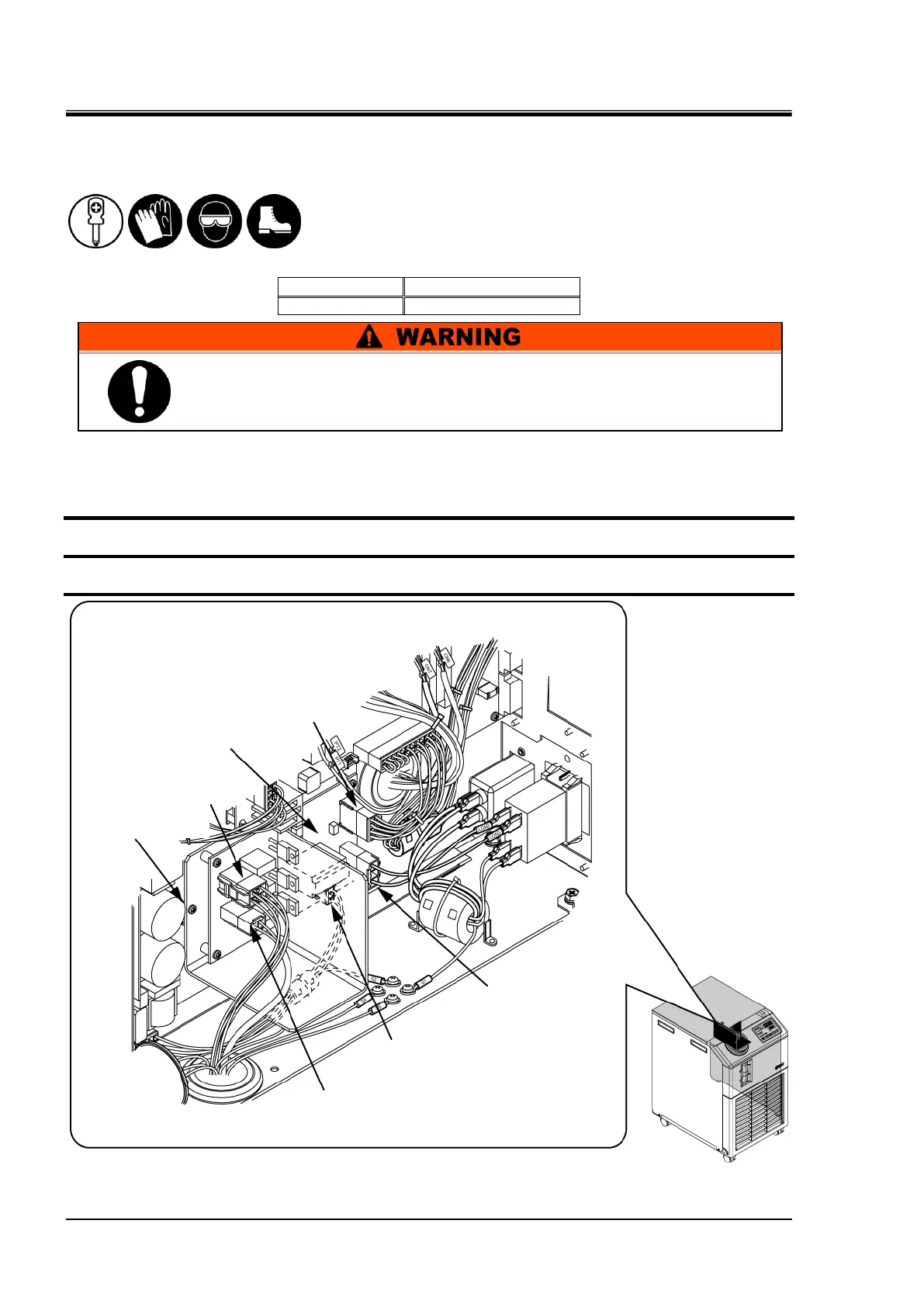

Fig. 4.5-36 Removal of power board
2. Connector
2. Connector
3. Power board
3. Screw (×2 pcs.)
2. Connector
2. Connector
2. Connector
