5.3.1 Dustproof filter

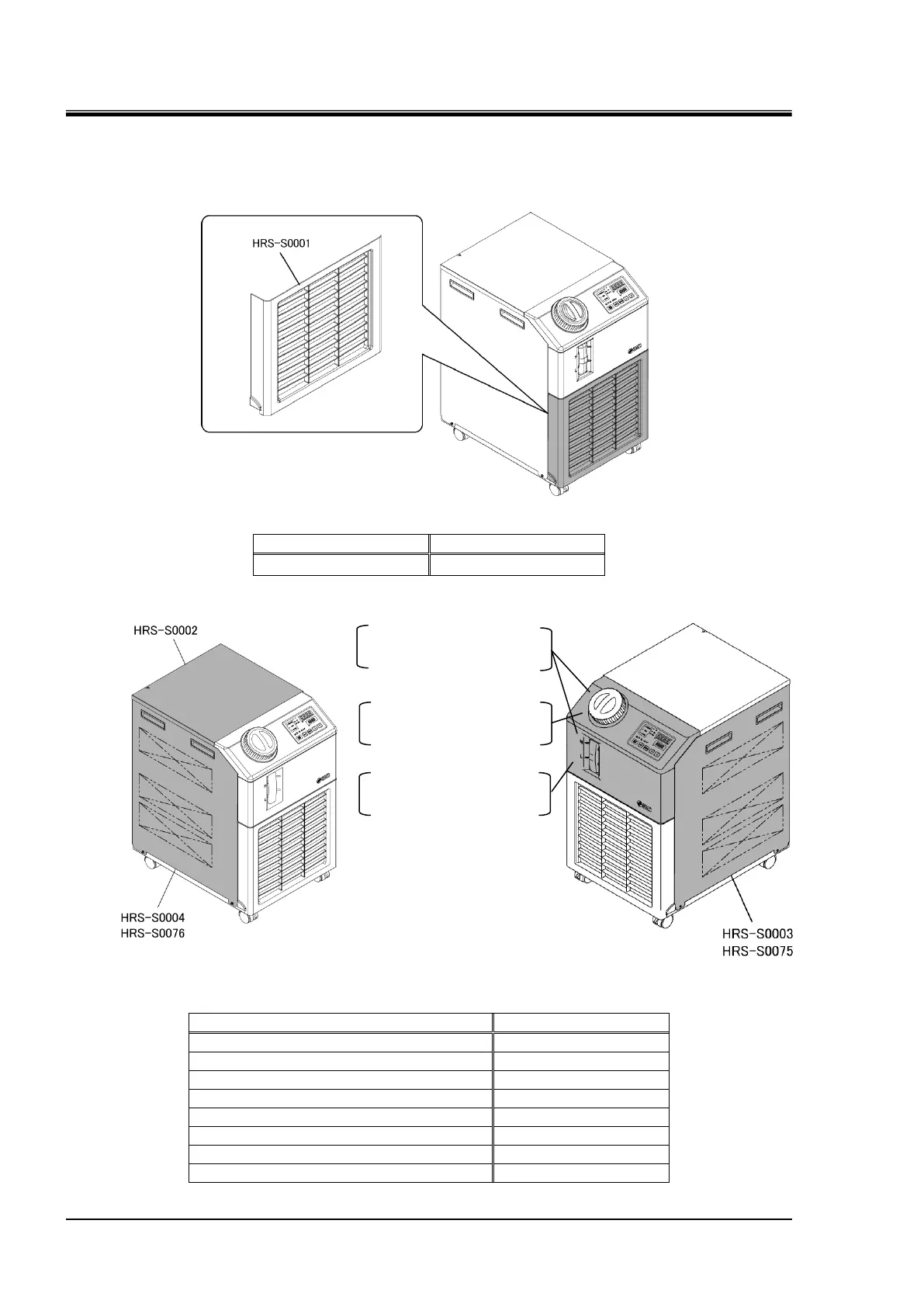

Fig. 5.3-1 Dustproof filter
Table 5-2 Part number of service parts (Dustproof filter)
Description
Part number
Dustproof filter
HRS-S000１
5.3.2 Panel
Fig. 5.3-2 Panel
Table 5-3 Part number of service parts (Panel)
Description
Part number
Apper panel
HRS-S0002
Right side panel
HRS-S0003
Right side panel (For option G/HRS030)
HRS-S0075
Left side panel
HRS-S0004
Left side panel (For option G/HRS030)
HRS-S0076
Front panel
HRS-S0519
Front panel B
HRS-S0005
Front panel A
HRS-S0006
Until production in February 2015
(Serial No. TP*** or earlier)
HRS-S0519
From production in March 2015
(After serial No. TQ***)
HRS-S0005
HRS-S0006
Until production in February 2015
(Serial No. TP*** or earlier)
