Chapter 4 Service Procedure
HRS Series 4.5 Replacement Procedure
Be sure to shut off the breaker of the facility power supply (the user’s
machine power supply) before replacement work.
4.5.20 Replacement of fuse
＜HRS-A/W-＞
Table 4-27 Part number of service parts (Fuse)
Removal
1. Remove the upper panel and the side panel on the right referring the 4.2.1 Removal and the
mounting of the panel.
2. Remove the fuse

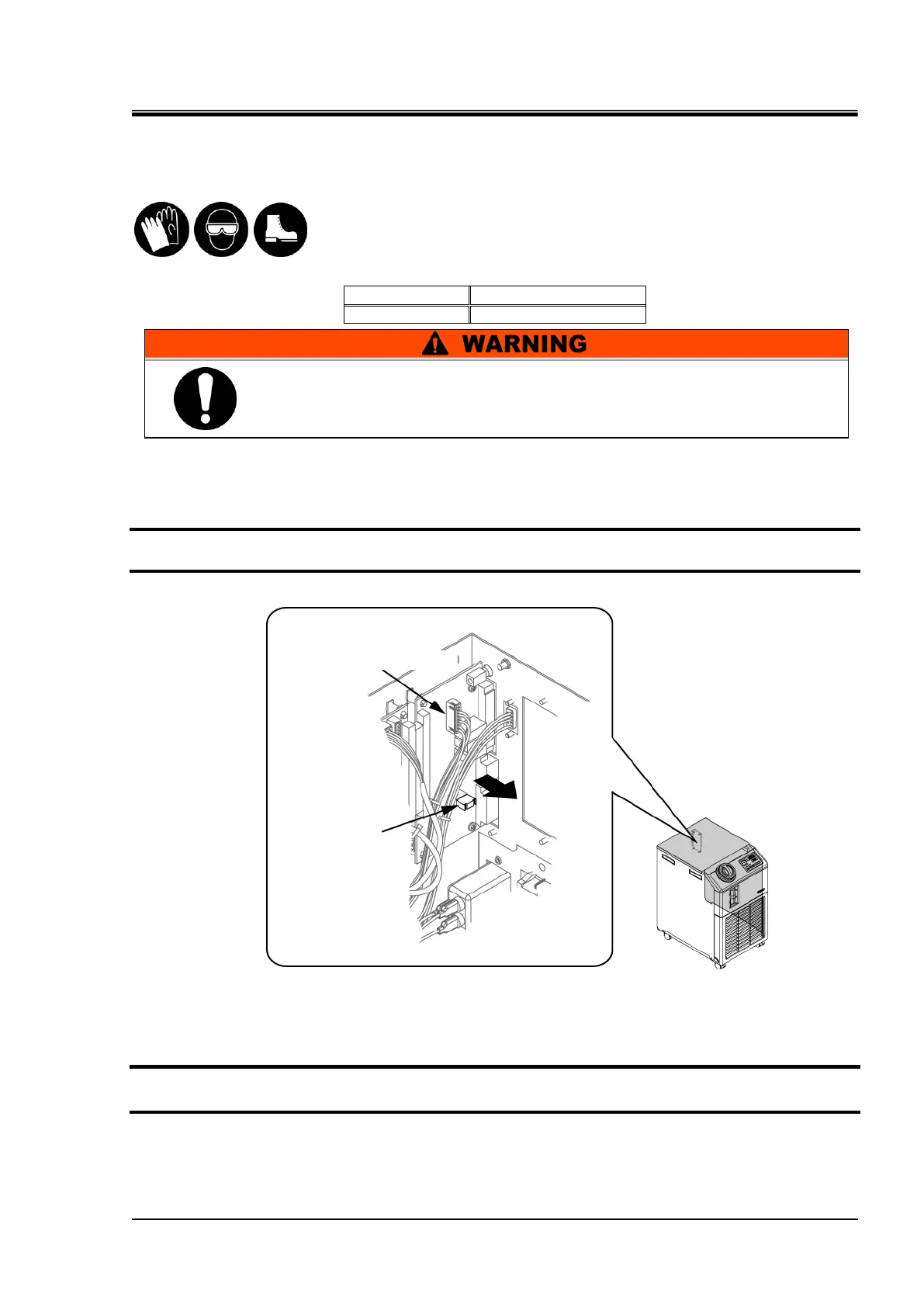

Fig. 4.5-46 Removal of fuse
Mounting
1. Mount the fuse.
2. Mount the upper panel and the side panel on the right in reversed order of removal.
