Chapter 4 Service Procedure
HRS Series 4.5 Replacement Procedure
4-45
 Mounting
1. Mount the power switch.
Be careful of the mounting direction.

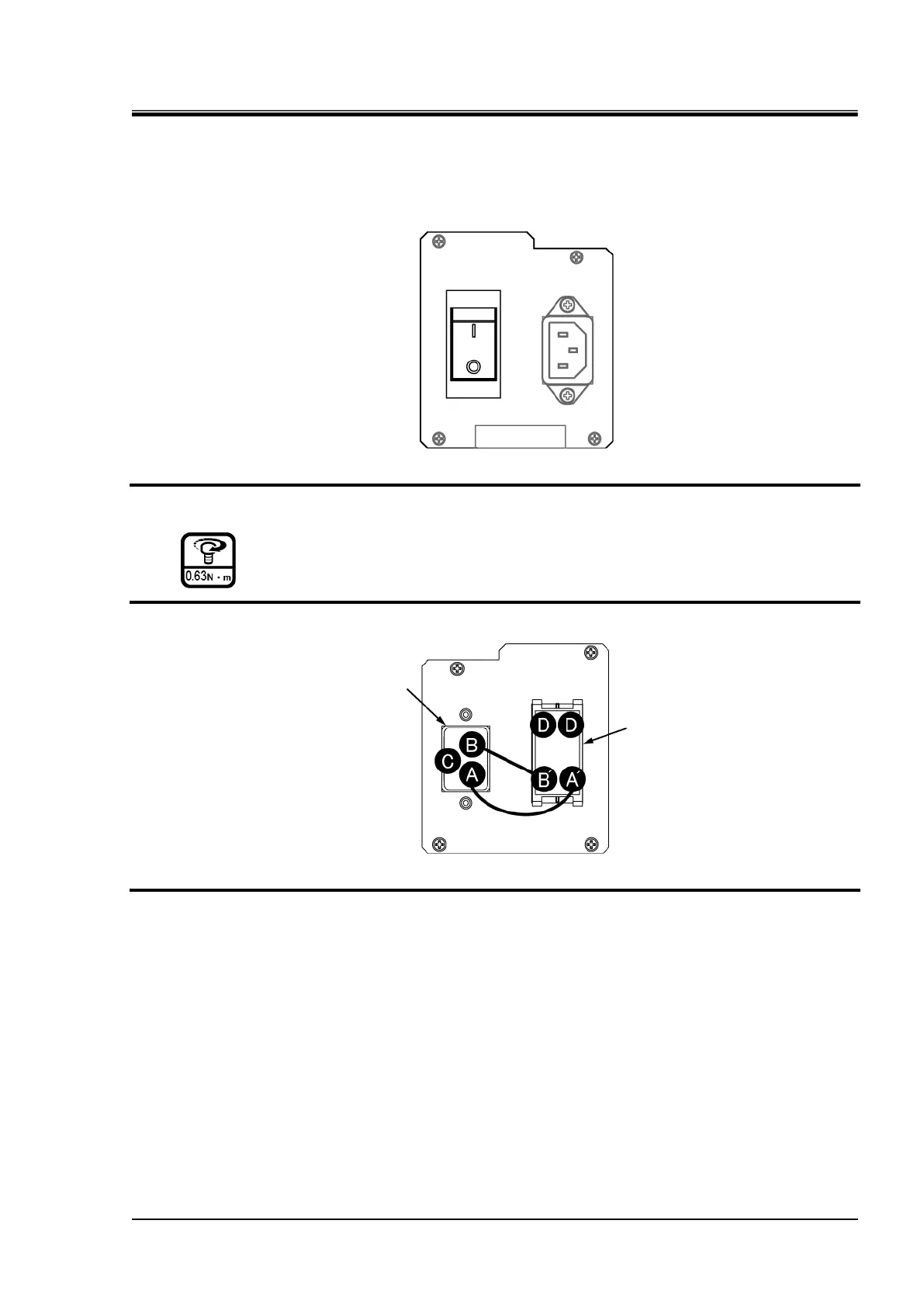

Fig. 4.5-32 Mounting direction in power switch
2. Mount the plate. (screw ×4)
3. Insert wiring to terminal A-A’, B-B’, [G1] to terminal C, [LOAD] to terminal D.
Fig. 4.5-33 Entry of connector
4. Mount the upper panel and the side panel on the right in reversed order of removal.
Inlet socket
Power switch
