Chapter 4 Service Procedure
HRS Series 4.5 Replacement Procedure
4-63

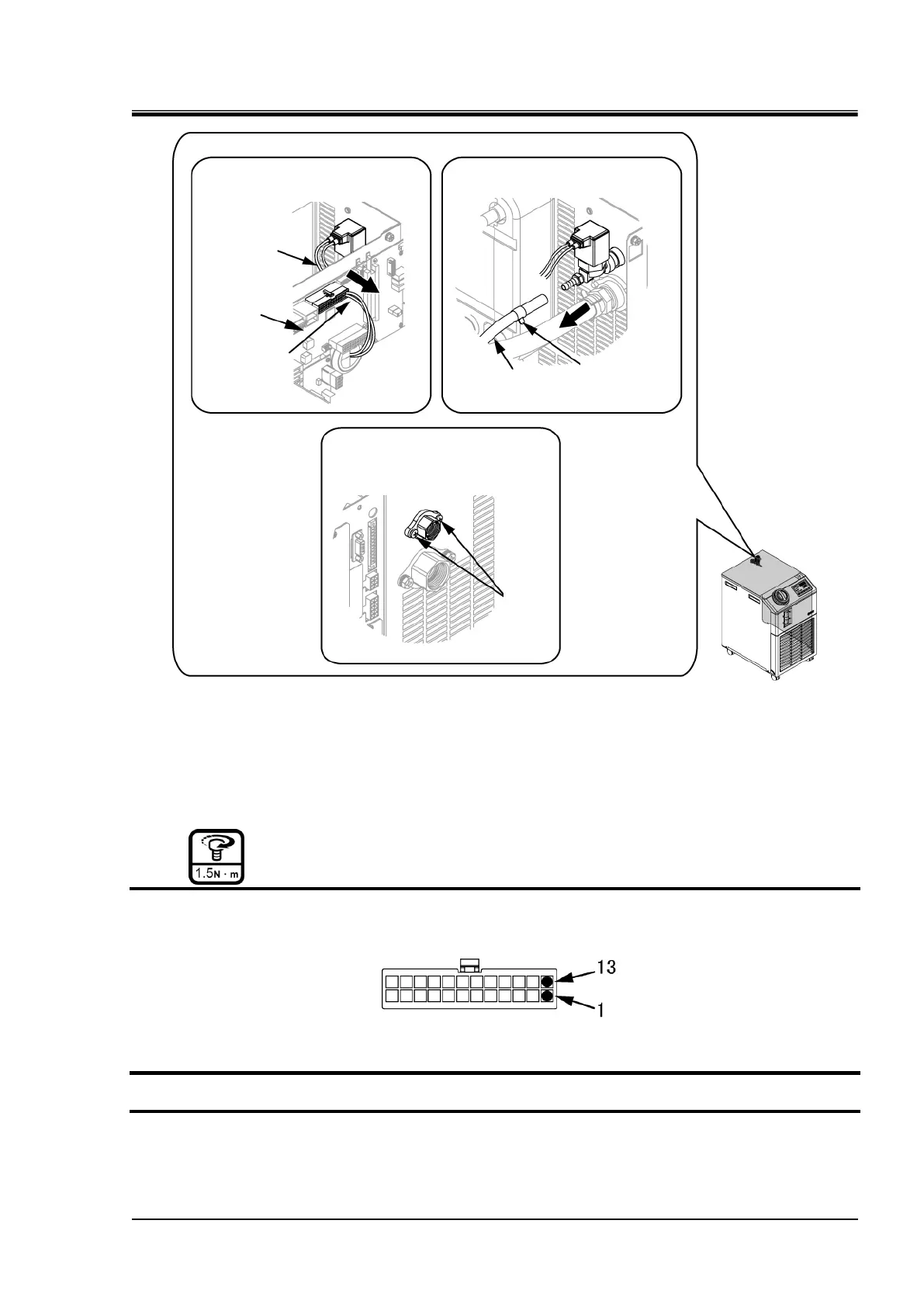

Fig. 4.5-47 Removal of valve for automatic water fill
 Mounting
1. Mount the valve for automatic water fill.
2. Mount the cable connector of valve to the main board.
Fig. 4.5-48 Mount the connector of valve for automatic water fill
3. Mount the hose.
3. Reoval of hose
2. Removal of connector
4. Removal of valve for
automatic water-fill
Valve for
automatic
water fill
Connector
Hose
clamp
Hose
Screw
Main
board
Red
Black
