CNC Carving - 06 Maintenance
6.2 Before You Carve
6.2.1 Check the Cables
Check if every cable is plugged into the right socket in the right direction.

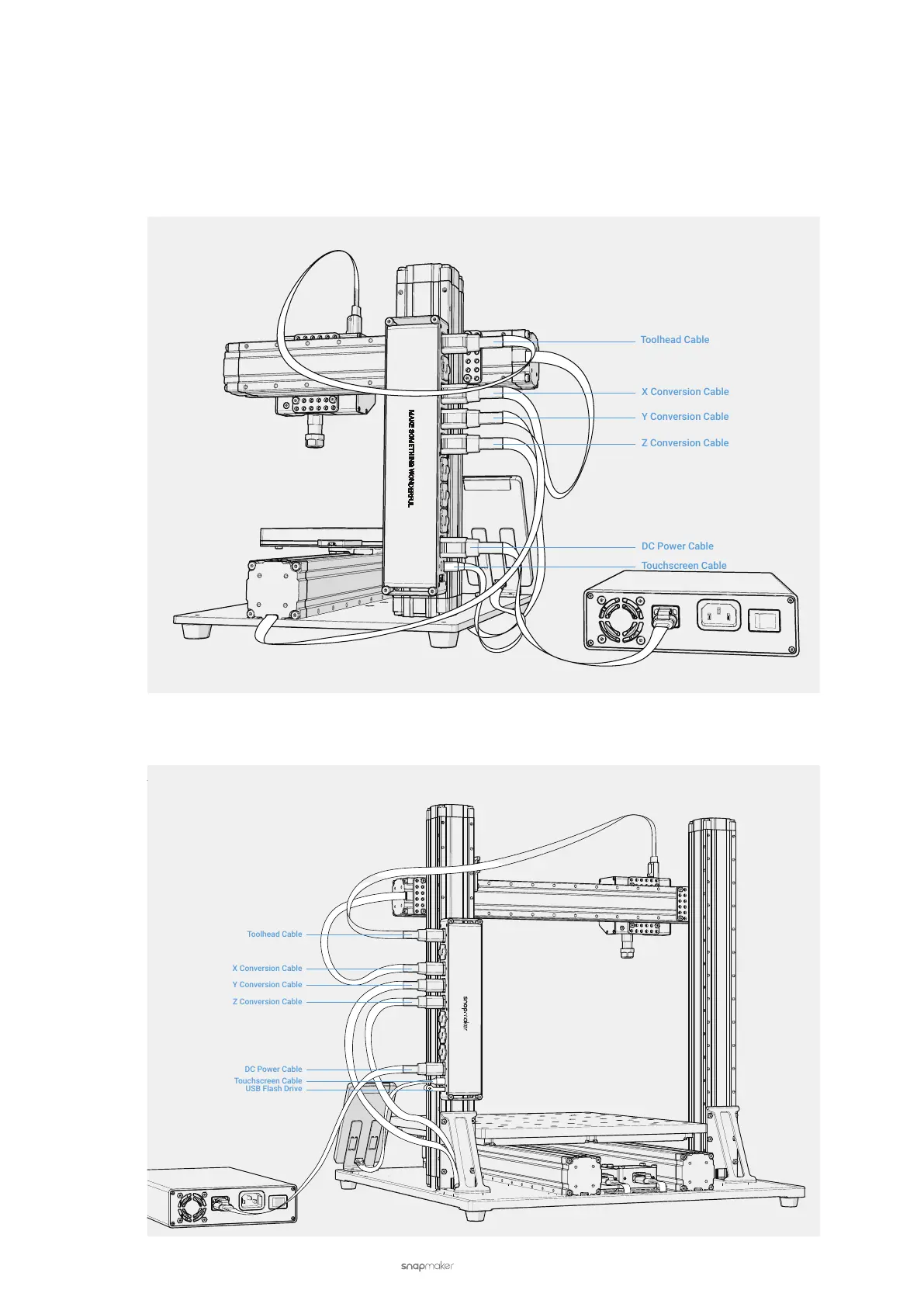

Into the Controller (A150)
Into the Controller (A250 & A350)
Toolhead Cable
X Conversion Cable
Y Conversion Cable
Z Conversion Cable
Touchscreen Cable
DC Power Cable
Toolhead Cable
X Conversion Cable
Y Conversion Cable
Z Conversion Cable
Touchscreen Cable
USB Flash Drive
DC Power Cable
