– 6 –

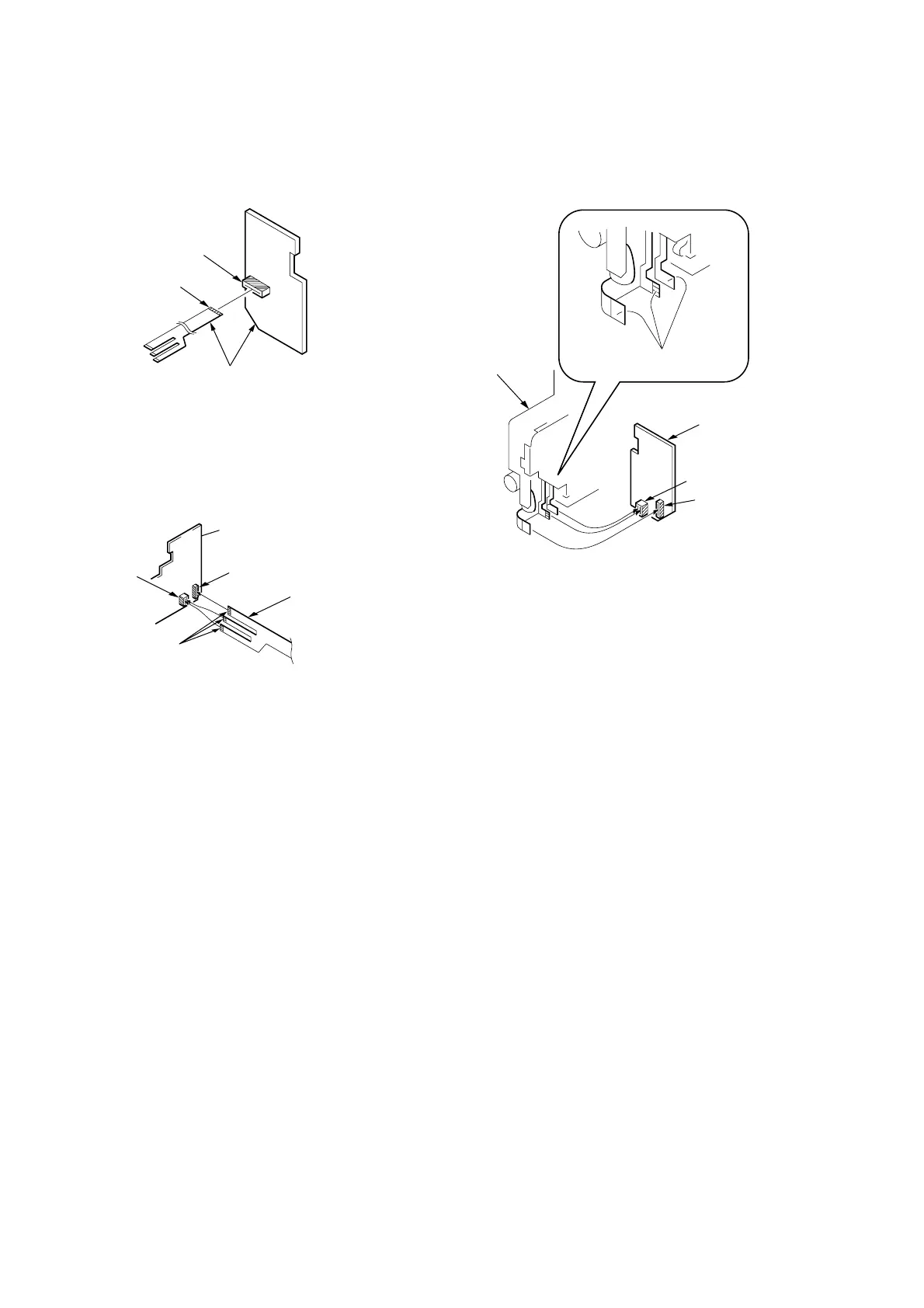

1) Connection of the extension cable (J-6082-427-A) 3) Connection between the FDD unit and extension cable
Fig. 3
Fig. 2
Fig. 1
[How to connect the extension cable]
1. Connection between the FDD unit and PK-47/48 board.
2) Connection between the PK-47/48 board and extension cable
CN013
Conductor side
Extension cable
(J-6082-427-A)
Extension cable
(J-6082-427-A)
Conductor side
CN601
CN602
PK-47/48 board
Extension cable
(J-6082-427-A)
Conductor side
CN011
CN012
FDD unit
