The 70xx Family System Status table describes the conditions under which the
system status LEDs might be lit.
Sensing Interfaces
The 70xx Family appliances are delivered with eight copper interfaces, each with
configurable bypass capability.

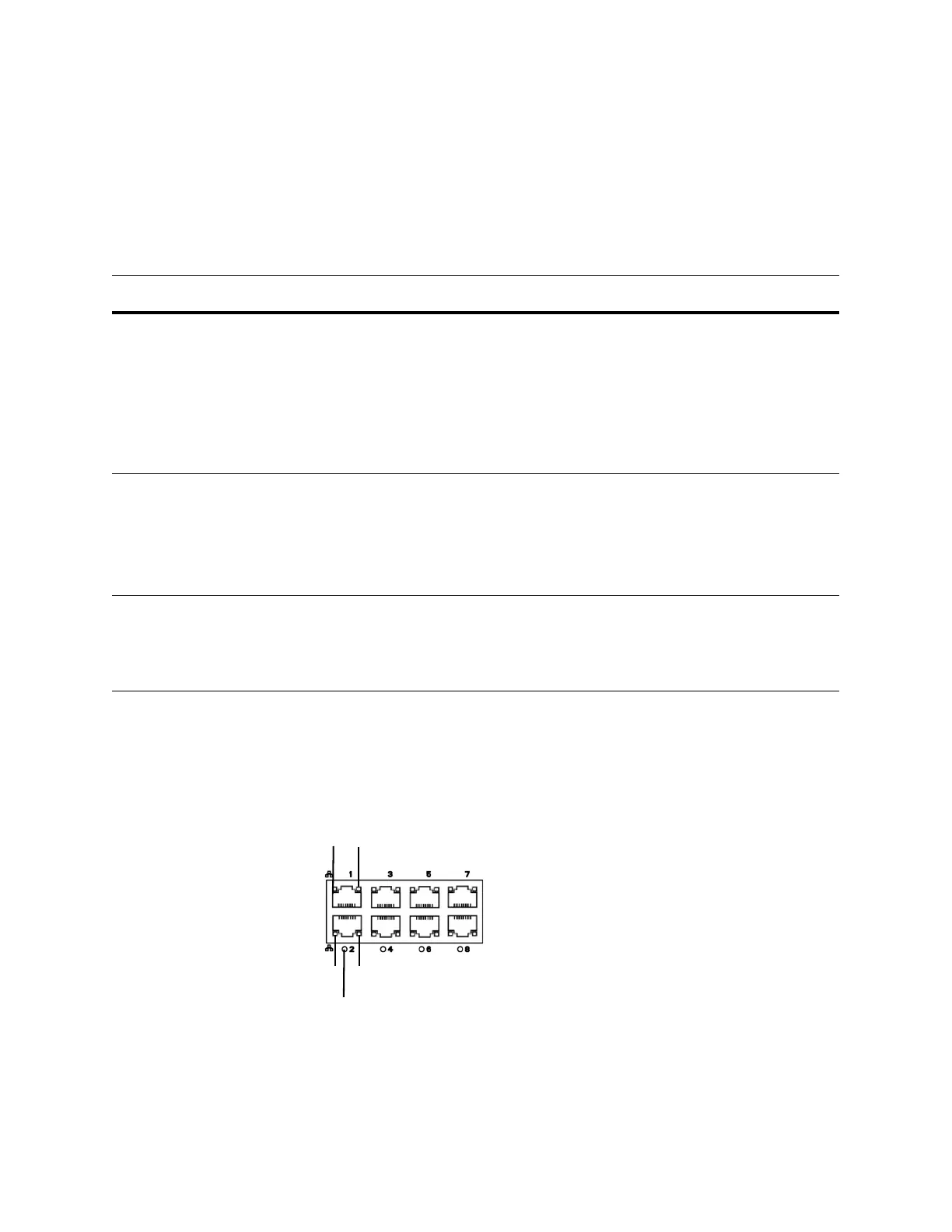

Eight-Port 1000BASE-T Copper Interfaces
70xx Family System Status
CONDITION DESCRIPTION
Critical Any critical or non-recoverable threshold crossing associated with the
following events:
• temperature, voltage, or fan critical threshold crossing
• power subsystem failure
• system inability to power up due to incorrectly installed processors or
processor incompatibility
• critical event logging errors, including System Memory Uncorrectable ECC
error and fatal/uncorrectable bus errors, such as PCI SERR and PERR
Non-critical A non-critical condition is a threshold crossing associated with the following
events:
• temperature, voltage, or fan non-critical threshold crossing
• Set Fault Indication command from system BIOS; the BIOS may use the
command to indicate additional, non-critical status such as system memory
or CPU configuration changes
Degraded A degraded condition is associated with the following events:
• one or more processors are disabled by Fault Resilient Boot (FRB) or BIOS
• some system memory disabled or mapped out by BIOS
• one of the power supplies unplugged or not functional
Link LED
Link LED
Activity LED
Activity LED
Bypass LED
