Components Installation & Configuration Guide for MAXPage

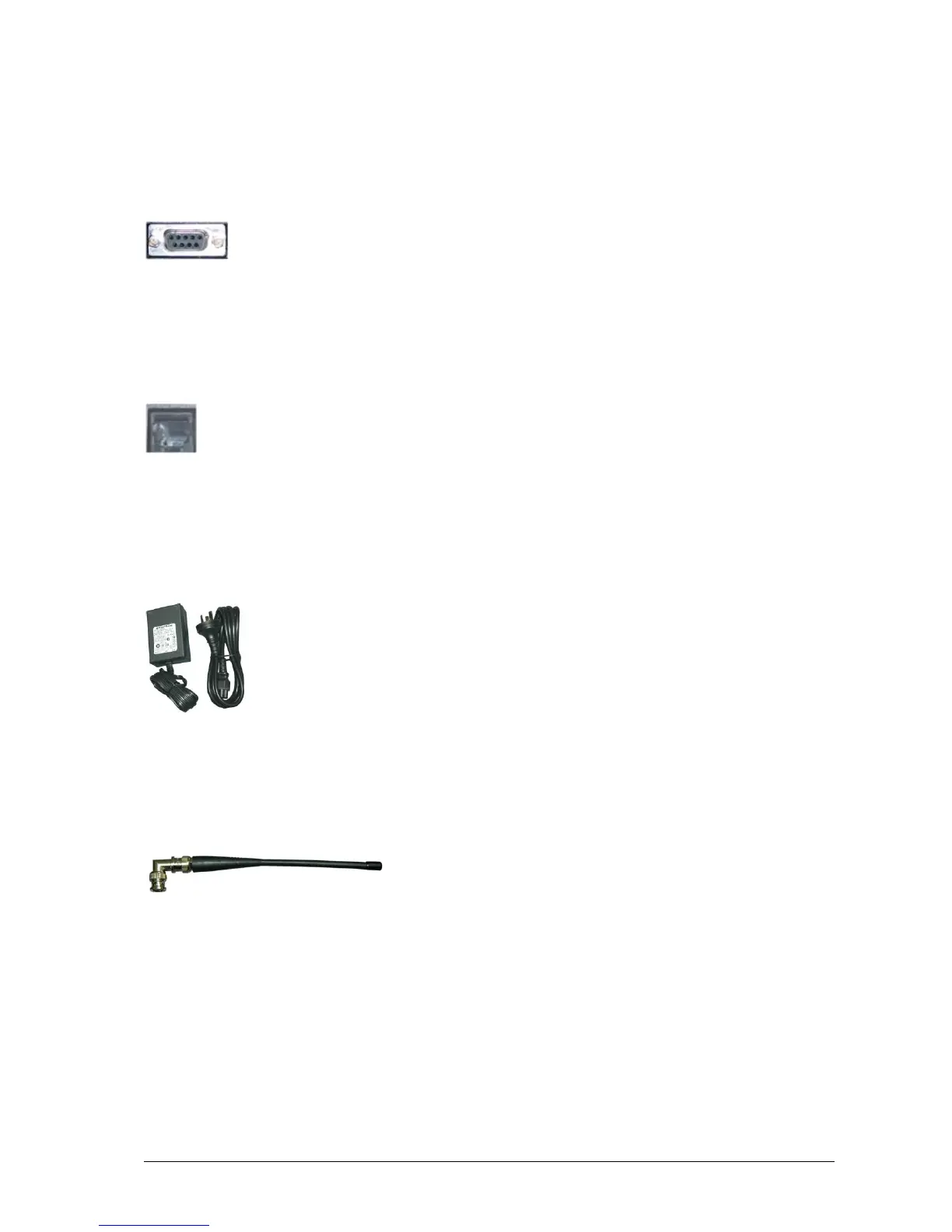

9-Pin RS232 Connector
The DB9F 9-pin RS232 connector may be used to connect MAXPage to (optional) communications systems
outputting TAP, COMP, ESPA, TEKK, VISIPLEX, or SCOPE messages. It is also used to connect to an IBM PC, in
conjunction with the Windows MAXPage software, for settings adjustment and programming of the unit.
PBX Interface
The (optional) Telephone (PBX) interface is used to connect the device to your PBX system or phone system.
Numeric and alphanumeric messages can be sent by following the voice prompts and using the telephone keypad on
the telephone.
Power Adapter
The power adapter included with the MAXPage package converts mains power to the 12volts 2 Amps regulated, as
required by the MAXPage unit.
Quarter Wave Whip Antenna
A standard quarter wave whip antenna is used to transmit the RF signal for the MAXPage unit.
