Installation & Configuration Guide for MAXPage Assembly & Installation

13

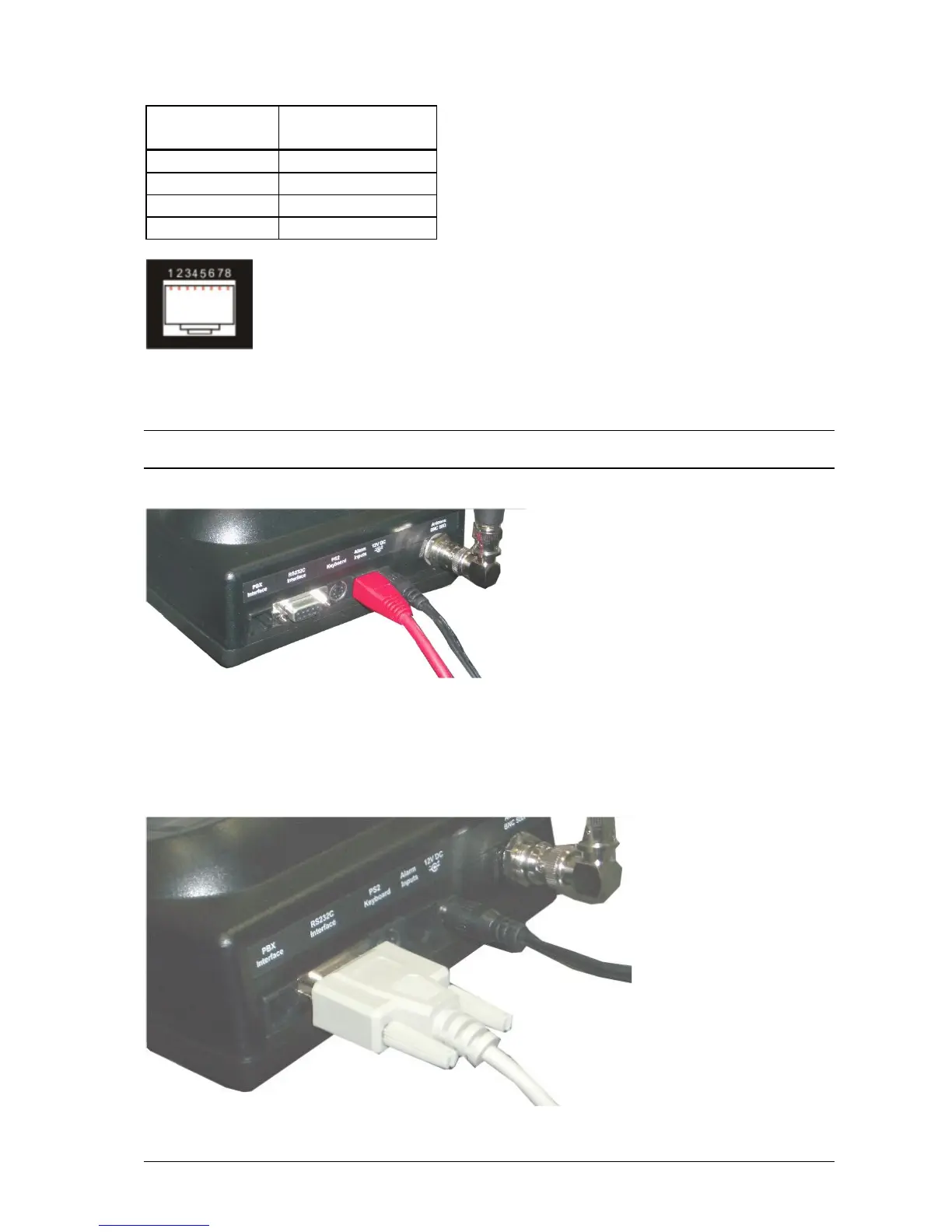

RJ45 Pin
Numbers
Alarm Input
Number
1 + 2
1
3 + 4
2
5 + 6
3
7 + 8
4
NOTE: The four alarm inputs are not isolated from each other – pins 2, 4, 6, and 8 are connected to each other and
share a common ground.
RS232 Serial Port
To interface the MAXPage with a third-party paging system that is outputting a serial protocol, use the female DB9
on the rear of the MAXPage unit.
Front View
