C Cross shaft overview
To determine the cross shaft or lower link connection:

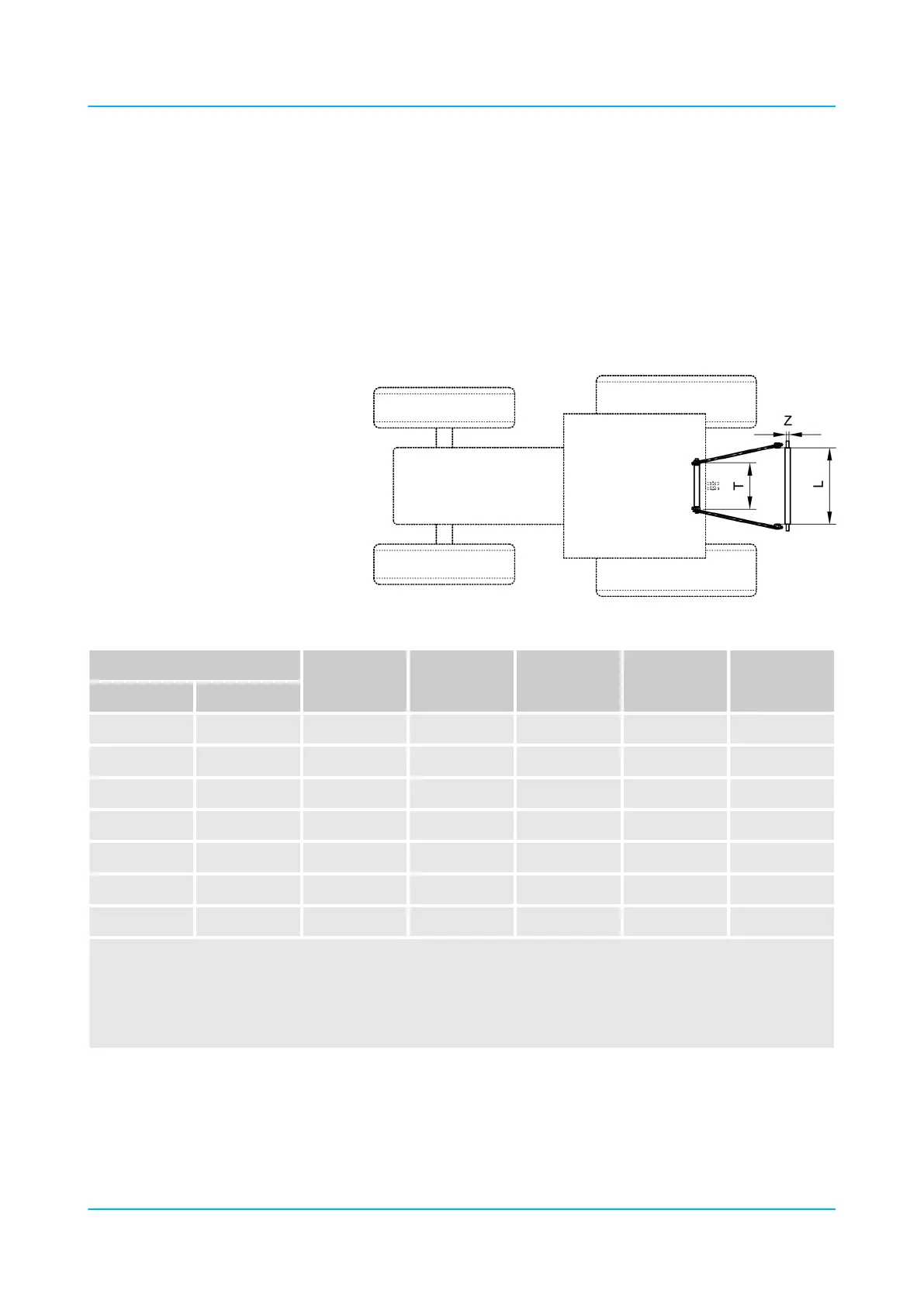

n Determine the dimensions shown in the sketch on the machine.
n Compare the dimensions with the data in the table.
n The category of the three-point linkage must match with the cate‐
gory of cross shaft or lower link connection.
Tractor power
Category Designation L [mm]
ÆZ [mm]
T [mm]
kW HP
30 - 92 40 - 125 2 L2Z2 825 28 390 - 505
30 - 92 40 - 125 ** L3Z2 965 28
60 - 185 81 - 251 3N* L2Z3 825 36.6 390 - 505
60 - 185 81 - 251 3 L3Z3 965 36.6 480 - 635
110 - 350 149 - 476 4N* L3Z4 965 50.8 480 - 635
110 - 350 149 - 476 4 L4Z4 1166 50.8 480 - 635
*** K700 1100 58
*) Intermediate category according to ISO, e.g. suitable for the use of wide tyres
**) Category with special length: If distance (T) is too large, a mounted machine is not guided well laterally during
work. Using a longer cross shaft will optimise guidance of the implement.
*** Special category for lower link balls with diameter 58 mm
Cross shaft overview
en-GB | Item no. 17513597 | BA 02/05-2022 130
