6.3.2 Align hoeing implement with support wheels
To ensure the hoeing implement operates successfully and drives
stably through the existing crops, the user must align the implement.
This involves the following working steps:
n Adjust the height of the toolbar.
n Align the tool holder horizontally.
A hoeing implement can have two or more support wheels. The height
of the support wheels determines the height of the toolbar.
To achieve horizontal alignment of the toolbar, all the support wheels
are adjusted to the same height.
Ä
Chapter 6.3.2.2 ‘Height adjustment for various types of support wheels’
on page 68
6.3.2.1 Adjust height of the toolbar

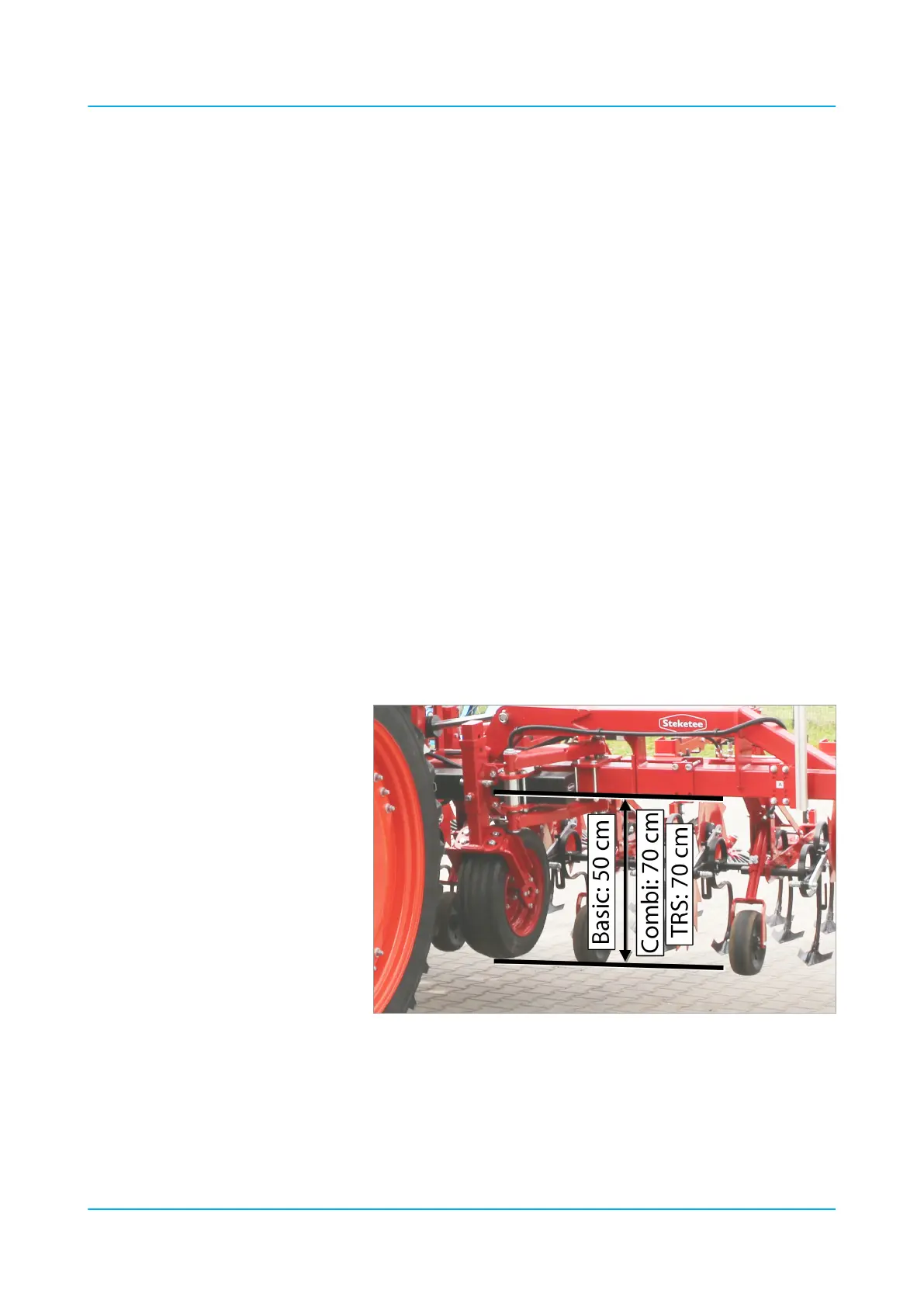

n The lower edge of the toolbar is positioned at a height of:
– Basic-Elements: 50 cm (with special equipment 70 or 100 cm)
– Combi-Elements: 70 cm
– TRS-Elements: 70 cm
n Toolbar is aligned horizontally.
Aims of height adjustment
Operation
en-GB | Item no. 17513597 | BA 02/05-2022 67
