Steketee EC-WEEDER - Attach Hoeing Implement

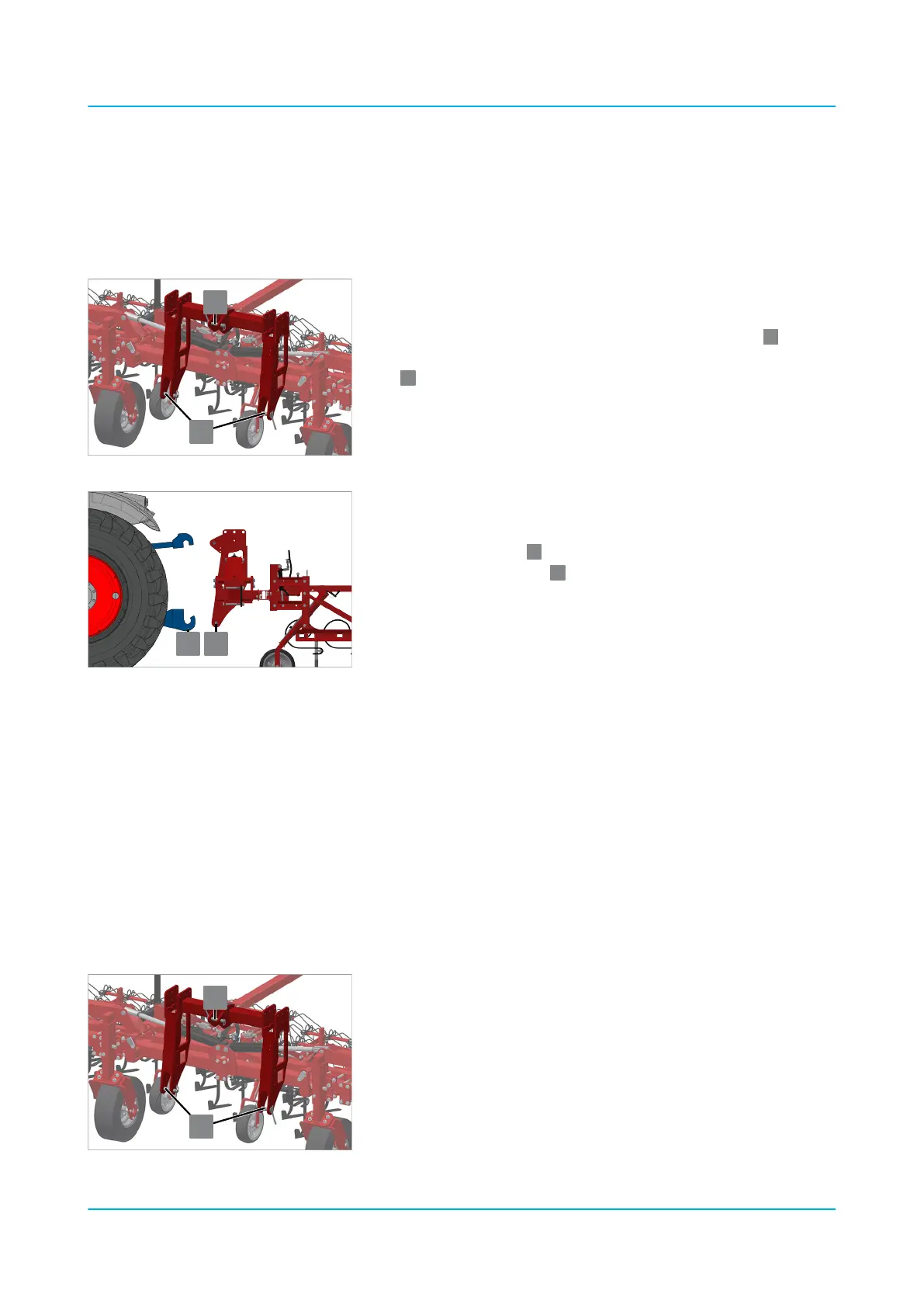

4.4.2 Attach hoeing implement
The hoeing implement is equipped with a headstock which is con‐
nected to the three-point linkage of the tractor or combination imple‐
ment.
1. Switch the hydraulics of the three-point linkage to position control
for attachment.
2.
Mount the top link balls on the pin of the top link recess
1
and the
lower link balls on the pins of the implement’s lower link recesses
2
.
3. Secure all the pins with linch pins.
4. Back the tractor straight up to the implement.
n Stop at a distance of about 40 cm.
n The lower links
1
are positioned in front of the implement’s
lower link recesses
2
.
5. Depressurise auxiliary control devices of the tractor.
6. Secure the tractor against rolling over.
7. Connect hydraulic hoses to the tractor.
n Make certain they are assigned correctly.
n Note the hydraulic system labels.
8. Connect the electric lines to the tractor.
ATTENTION: Ensure that the lines and hoses CANNOT be trapped
in the moving parts of the hoeing implement.
9. Ensure correct installation and function of the lighting equipment.
10. If necessary, x the control box or operation terminal into position
in the tractor cab. Reconnect the lines.
11. Back the tractor up to the implement.
ð
The lower links are positioned underneath the lower link
recesses.
12. Connect the lower links of the tractor to the lower link recesses.
13. Secure the tractor against rolling over.
14.
Raise the stands . Ä See page 56
Rear mounting of the implement to
the tractor
1
2
1
Top link recess with pin
2
Lower link recesses with pins
1 2
1
Lower link
2
Lower link recess
1
2
Attaching
