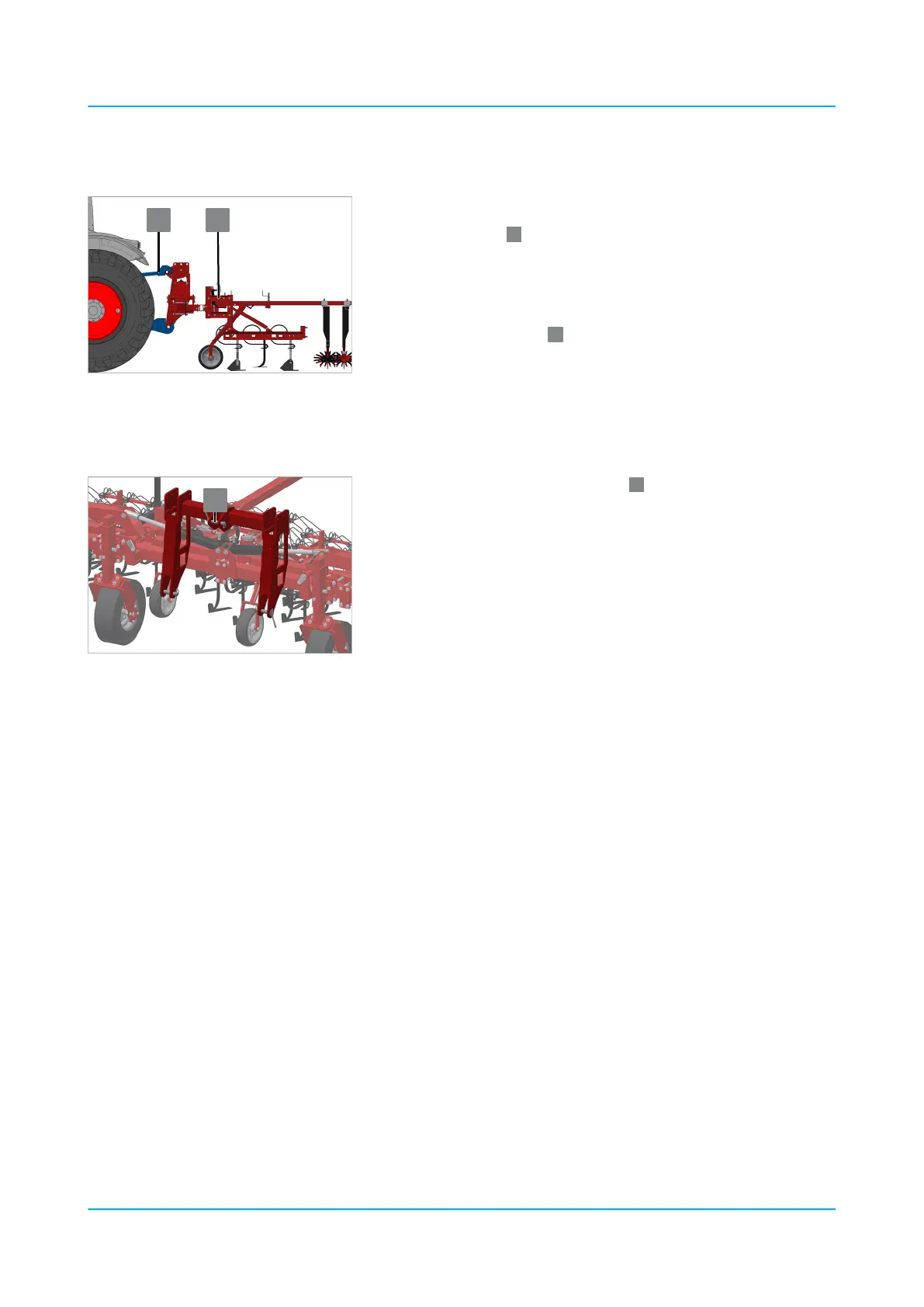

15. Select attachment position for the top link.
n The top link
1
must be mounted parallel to the ground with a
slight incline to the implement.
ATTENTION: If the top link rises sharply towards the implement,
the hoeing implement, when folded, can damage the tractor cab.
n The parallelogram
2
of the hoeing element is horizontal and
parallel to the ground.
INFORMATION: Check this setting before working in the eld and
correct it if necessary. Ä Chapter 6.3.1 ‘Required adjustments prior to
operation’ on page 66
16. Adjust top link to correct length.
17.
Connect top link to the top link pin
1
.
18. Secure top link pin with the linch pin.
1
Top link recess with pin
2
Lower link recesses with pins
1 2
1
Top link
2
Parallelogram
1
1
Top link recess with pin
Attaching
