3-7
Component Identification Operator Manual 920509-645
3.6 Oscillating Jet
System
Oscillating jet system consists of two spray headers, one on each
side of wash chamber, suspended from an oscillating carriage (see
F
IGURE 3-5). Each spray header is equipped with machined jets
angled to reach all surfaces of load.
Oscillating jet system travels back and forth along length of chamber
during recirculating/spraying phase function. Jet system is equipped
with a safety clutch that stops movement of oscillating carriage if an
obstruction is detected.

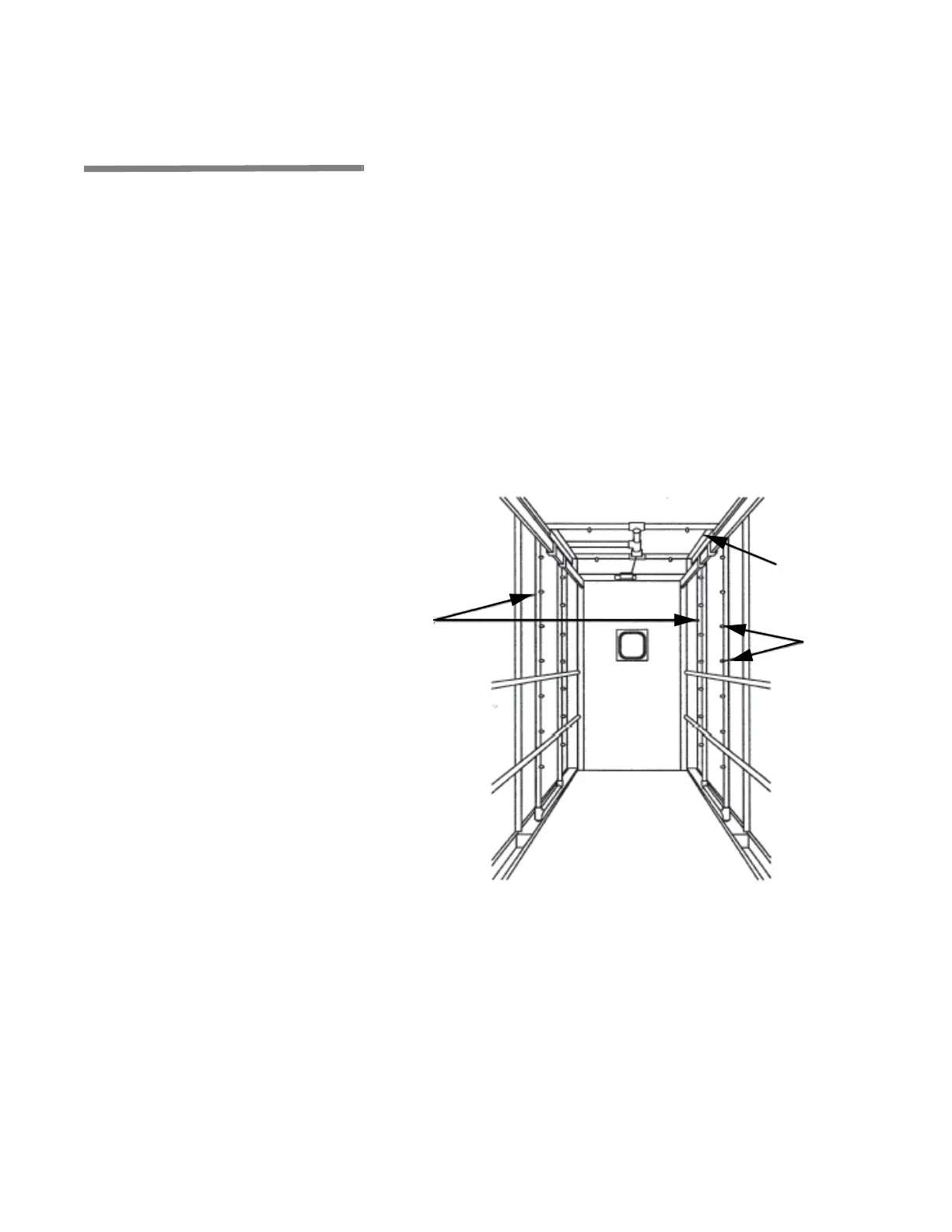

Figure 3-5. Oscillating Jet System
Oscillating
Carriage
Spray
Jets
Spray
Headers
