3.11 Non-Recirculated
Final Rinse
Washers equipped with Non-Recirculated Final Rinse System can be
programmed to spray load with fresh, non-recirculated water during
standard Final Rinse phase. System includes a separate spray
header mounted directly to each side of oscillating carriage, inside
of main spray headers (see Figure 3-8).
3.12 Feeder Bottle
Washing System
Feeder Bottle Washing System provides capability of processing a
loaded bottle cart during normal cycle operation. System includes a
quick disconnect coupler.
NOTE: Bottle washing cart is available as a separate accessory.
Cycle must be programmed to process bottle cart during cycle oper-
ation.
3.13 Automatic Water
Flush System for Two
Racks
Automatic Water Flush System for two racks permits cleaning of
facility’s automatic watering system during normal cycle operation.
System includes a set of two hoses, each equipped with a quick dis-
connect fitting, mounted on service side carriage rail.
Hoses are manually connected to customer cage watering racks
moved into wash chamber. During Final Rinse filling, fresh hot water
is sent through heat exchanger (for recirculated final rinse, tempera-
ture setpoint should be over 165ºF [73.9ºC] to activate heat
exchanger) and sprayed over cage watering racks for programmed
filling time interval.

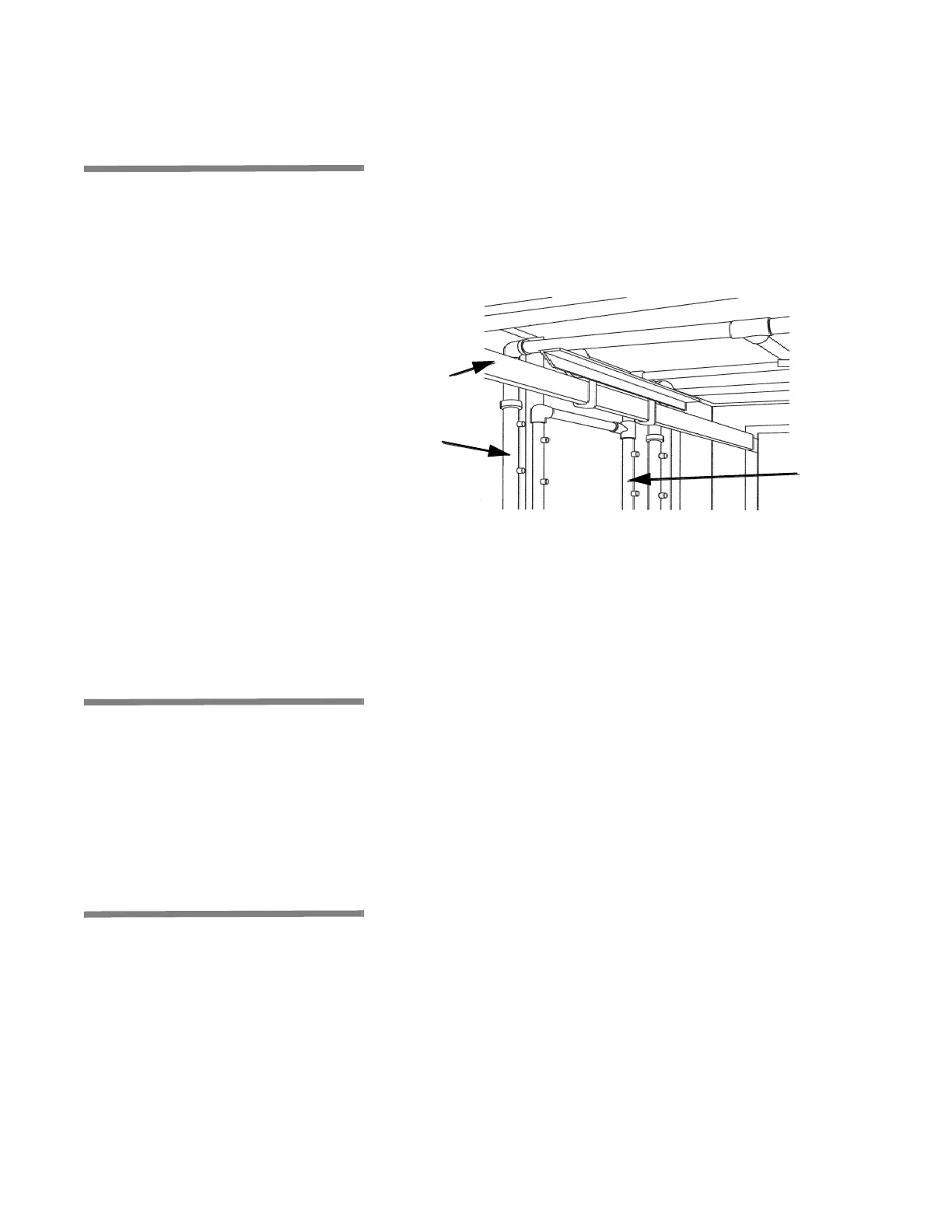

Figure 3-8. Non-Recirculated Final Rinse Spray Header
Carriage
Rail
Main Spray
Header
Separate
Spray
Header For
Fresh
Water
