3-8
920509-645 Operator Manual Component Identification
3.7 Safety System Chamber doors are equipped with a safety switch to stop washer
operation if door is opened during a cycle and to prevent start of
washer operation if door is not securely closed.
Chamber doors are also equipped with a spring-loaded, explosion
relief type safety latch. Door can be easily opened when pushed
from inside of wash chamber.
Two stainless-steel, red-coated safety cables are installed inside
wash chamber, one along each side (see F
IGURE 3-6). If cable is
pulled, washer operation is immediately stopped.
Oscillating jet system is equipped with a mechanical clutch to disen-
gage carriage drive if an obstruction is encountered, preventing
damage to spray headers and load items.
Load-side and unload-side control panels are equipped with EMER-
GENCY STOP pushbuttons. If pushbutton is pressed, washer opera-
tion is immediately stopped.
WARNING –
PERSONAL
INJURY AND/OR EQUIP-
MENT DAMAGE HAZARD: To
open doors from inside wash
chamber, pull EMERGENCY
STOP cables. Washer opera-
tion will automatically stop.
Then, push firmly on door
panel using shoulder and
upper arm, applying upper
body force.

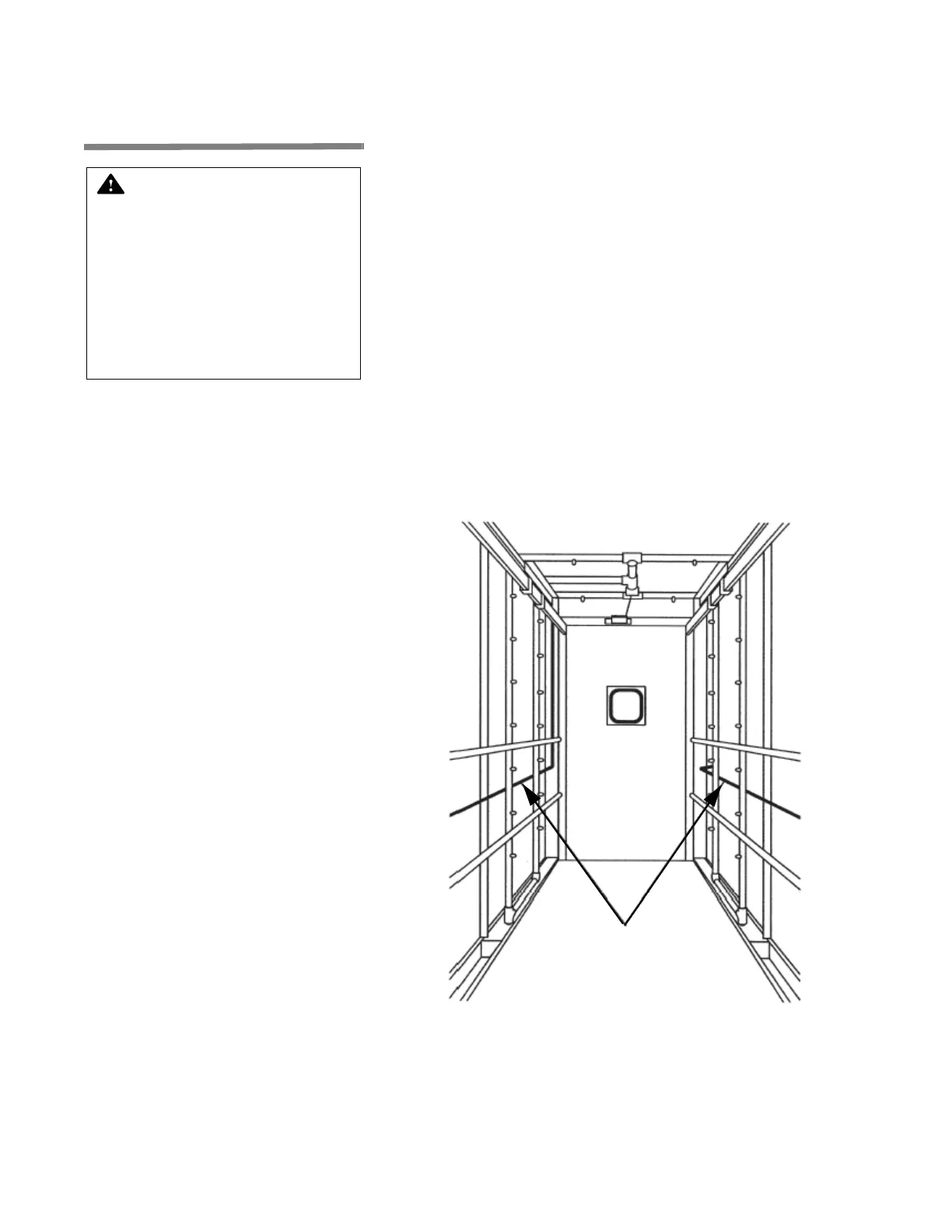

Figure 3-6. Safety Cables
Safety Cables
