33TS 700, TS 800
Note:
The inner stubs (arrows) must be
lined up with the sealing face on the
crankcase and the curvature on the
gasket must face towards the
carburetor.

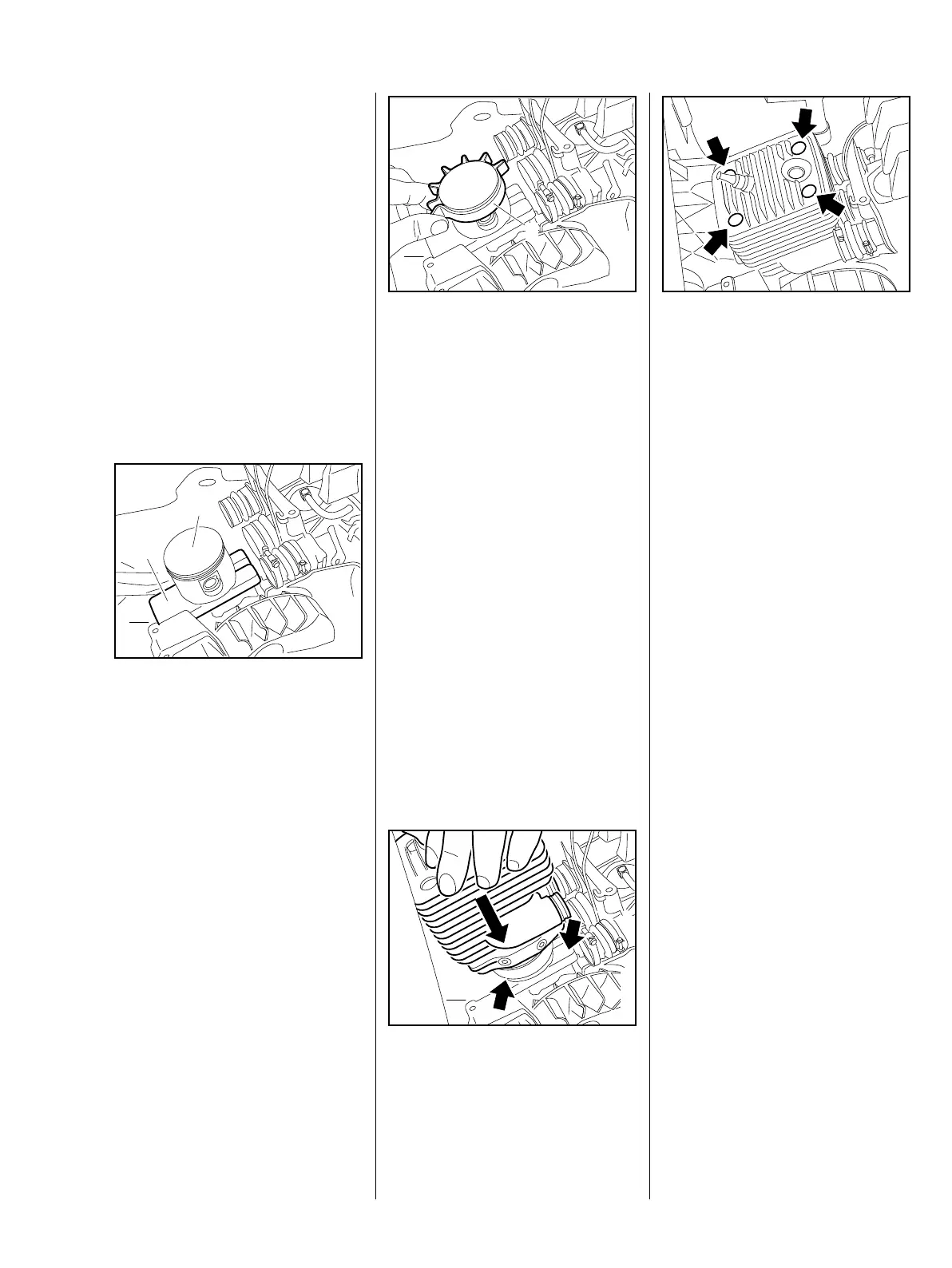

: Rest the piston (1) on the
wooden assembly block (2)
1108 893 4800.
– Lubricate the piston and piston
rings with oil and line up the
piston rings, b 7.7
2
1
376RA086 TG
: Use the clamping strap (1)
0000 893 2600 to compress the
rings around the piston.
– Ensure that the piston rings have
been installed correctly.
– Lubricate the inside of the
cylinder with oil.
1
376RA087 TG
– Before positioning the cylinder on
the piston, line it up as it will be in
the installed condition.
Note:
When fitting the cylinder, ensure
that the clamping strap firmly
encloses the piston and that none of
the piston rings protrudes.
- risk of breakage -
: Carefully slide the cylinder over
the piston, the clamping strap
moves downwards at the same
time.
– Remove the clamping strap and
wooden assembly block
(arrows).
376RA088 TG
– Carefully line up the cylinder and
cylinder gasket.
: Insert the screws through the
holes (arrows) but tighten them
only moderately.
– Push the manifold onto the
376RA089 TG
cylinder port.
– Note the correct installed position
of the hose clips,
b 12.5.2
– Tighten the screws down
crosswise.
– Tightening torque, b 3.6
– If necessary, fit the
decompression valve and screw
it down tightly, b 7.9
– Reassemble remaining parts in
reverse order.
