1. Pull the specimen mover plate down and
remove it from the shaft.
2. Insert a specimen mover plate and push
until the pin is aligned in the groove.
3. Make sure that the specimen mover plate
is securely mounted.
4. Make sure that the specimen mover plate
is in a horizontal position.
5. The specimen mover plate must be
positioned to allow the specimen to run 3
– 4 mm over the edge of the preparation
disc.

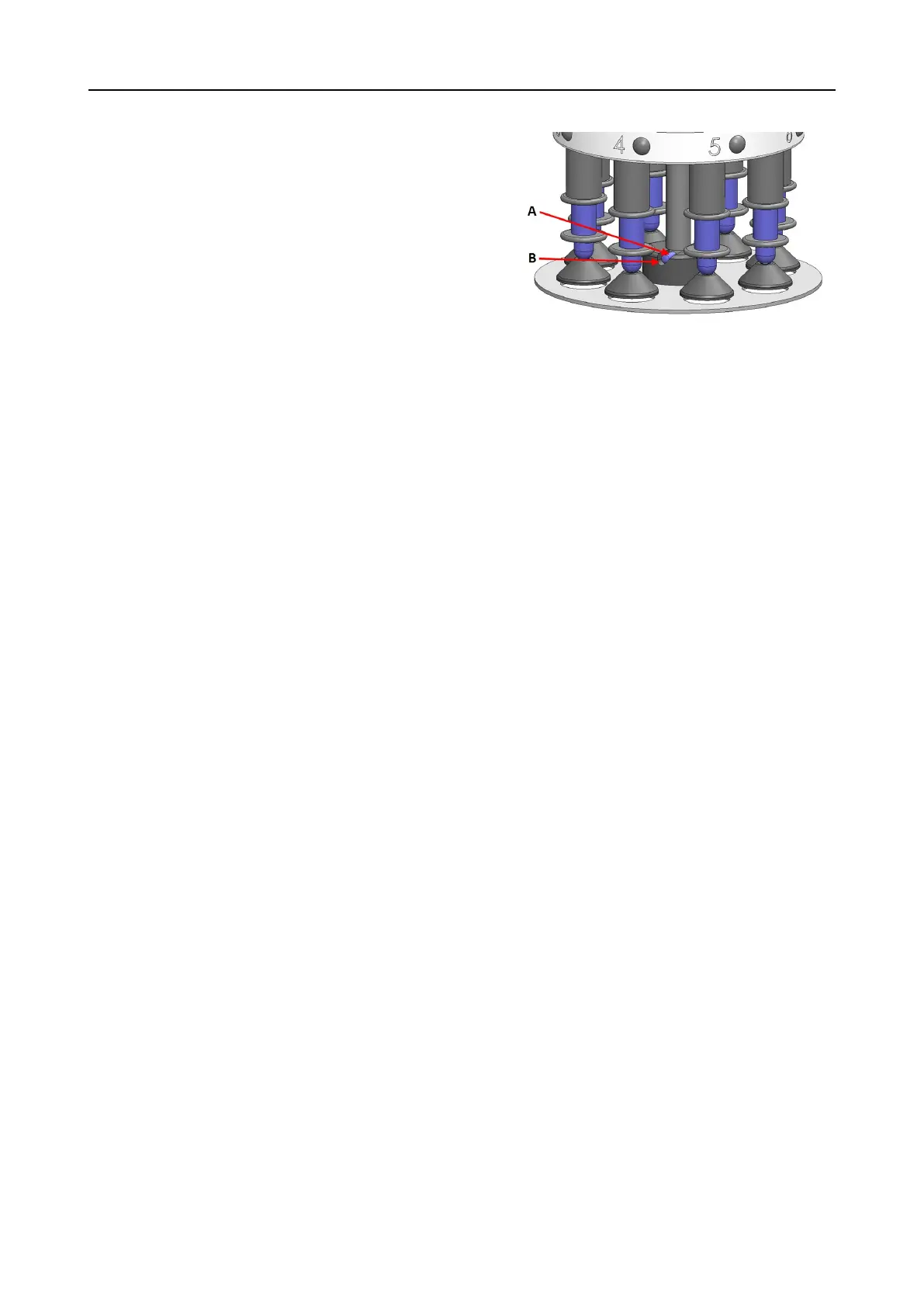

A Pin
B Groove
SeeAdjusting the horizontal position of the specimen mover plate ►70.
10 LaboDoser-10
LaboDoser-10 is a drip lubricator for delivering an uninterrupted flow of suspension or lubricant on a
preparation disc in the preparation (grinding or polishing) of materials for further materialographic
inspection.
The device is designed to be used with Struers consumables specially designed for this purpose and
this type of device.
LaboDoser-10 can be mounted on:
• LaboUI
• LaboForce-50
• LaboForce-Mi
Alternatively, LaboDoser-10 can be placed on a LaboDoser-10 table stand.
