11.1.2 Check the packing list
Optional accessories may be included in the packing box.
The packing box contains the following items:
Pcs. Description
1 LaboDoser-100
4 Easy connectors
1 Set of tubes
• 4 short tubes from bottles to pumps
• 4 long tubes from pumps to LaboDoser-100
1 Spiral cable wrap to wrap around the tubes
4 Silicone tubes for the pump for alcohol-based products
1 Instruction Manual set
11.1.3 Installing LaboDoser-100
Note
The pumps and the connections on the back of the specimen mover are numbered to
help you connect the tubes to the correct pump.
1. Place LaboDoser-100 next to the
machine.
2. Fit the easy connectors with tubes onto
the Struers 500 ml suspension bottles.
3. Connect the short tubes from the bottles
to the pumps marked IN.
4. Connect one end of the long tubes to the
back of the specimen mover.
5. Connect the other end of the long tubes
to the pumps marked OUT.
6. Make sure that the tubes are not taut, so
that the control panel head can be moved
freely.
7. Connect the electrical cable to the
connectors on the pump and the
specimen mover.
8. Wrap the section of spiral cable wrap
around the electrical cables and the
tubes.

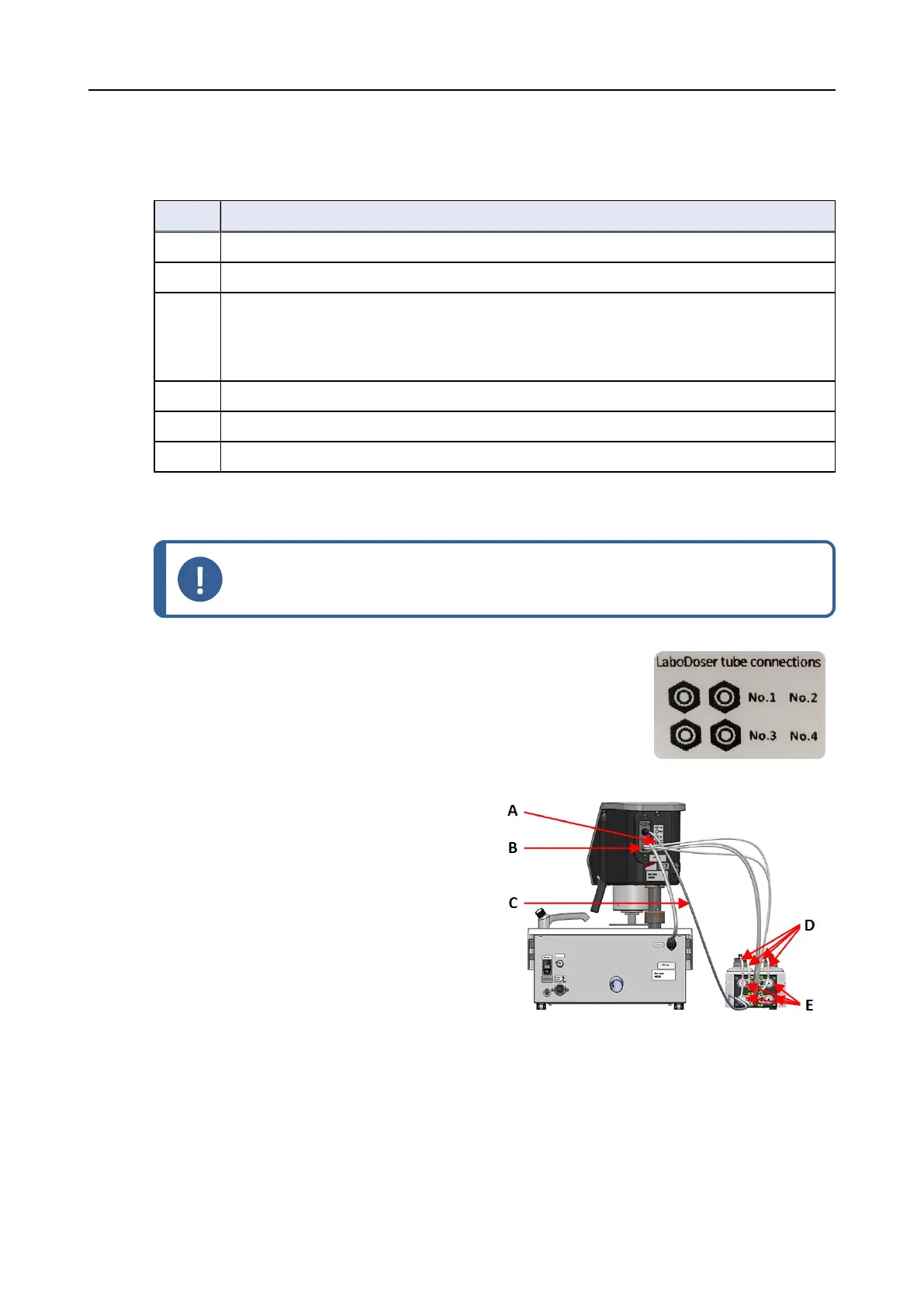

A Label showing numbered connections
B Connections for long pump tubes
C Electrical cable supplying power to the pumps
D Short pump tubes with easy connectors
E Pumps
82 LaboPol-30
11 LaboDoser-100
