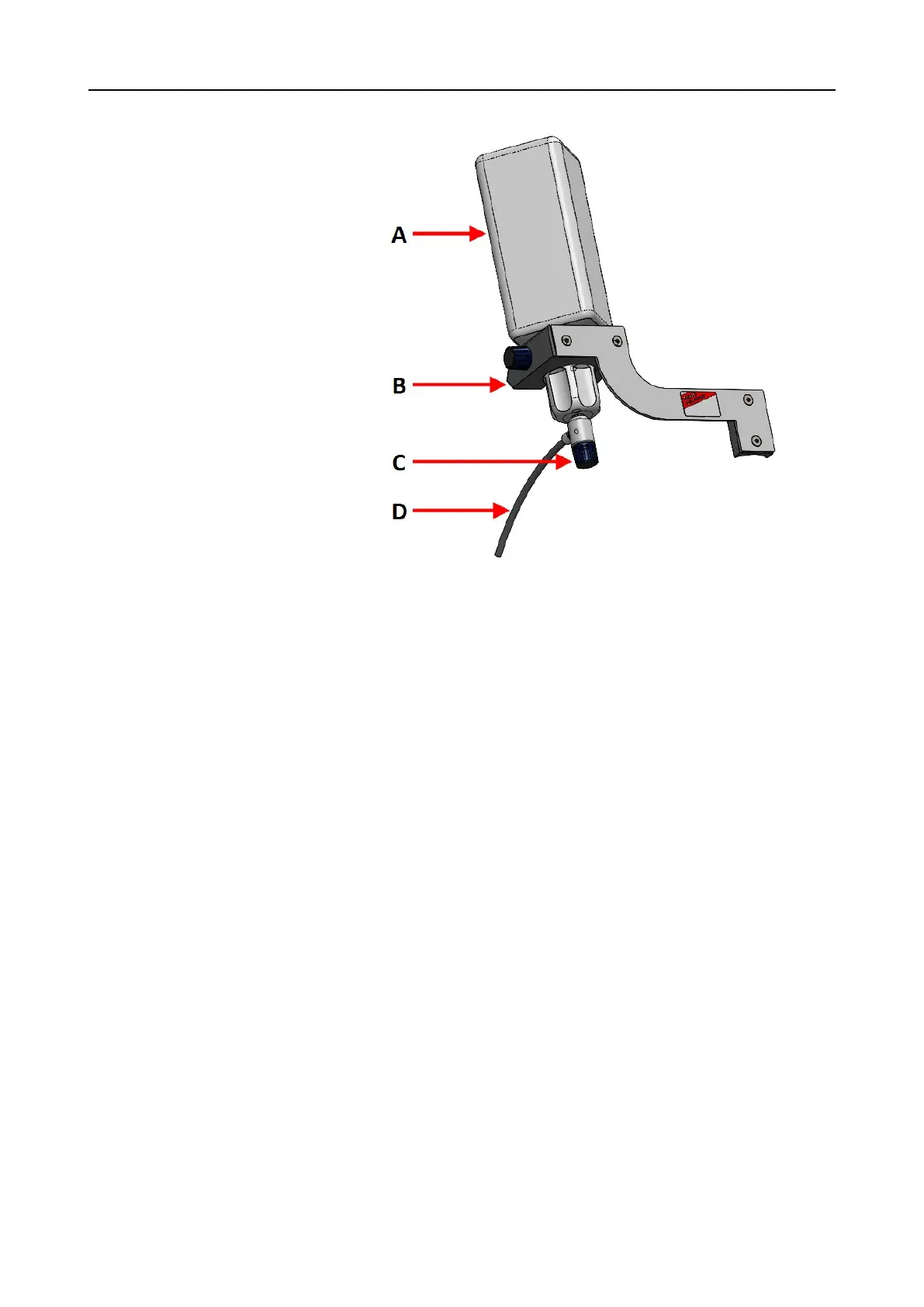

A Suspension/lubricant
bottle
B Doser arm
C Adjustable valve
D Dosing nozzle
1. Use the bracket and the two screws to mount the dosing arm on the column of the machine.
2. Attach the bottle cap with adjustable valve onto a Struers suspension/lubricant bottle.
3. Insert the bottle into the doser arm.
10 LaboDoser-10
