Stryker 1488 User Manual

EN-10
The C-Mount Coupler
The C-mount coupler threads onto the face of the camera head, enabling
a scope to be attached to the camera. It provides a focusing ring to adjust
image sharpness.
See the “Product Description” section for the dierent coupler models that
are available and their respective user guides, which provide additional

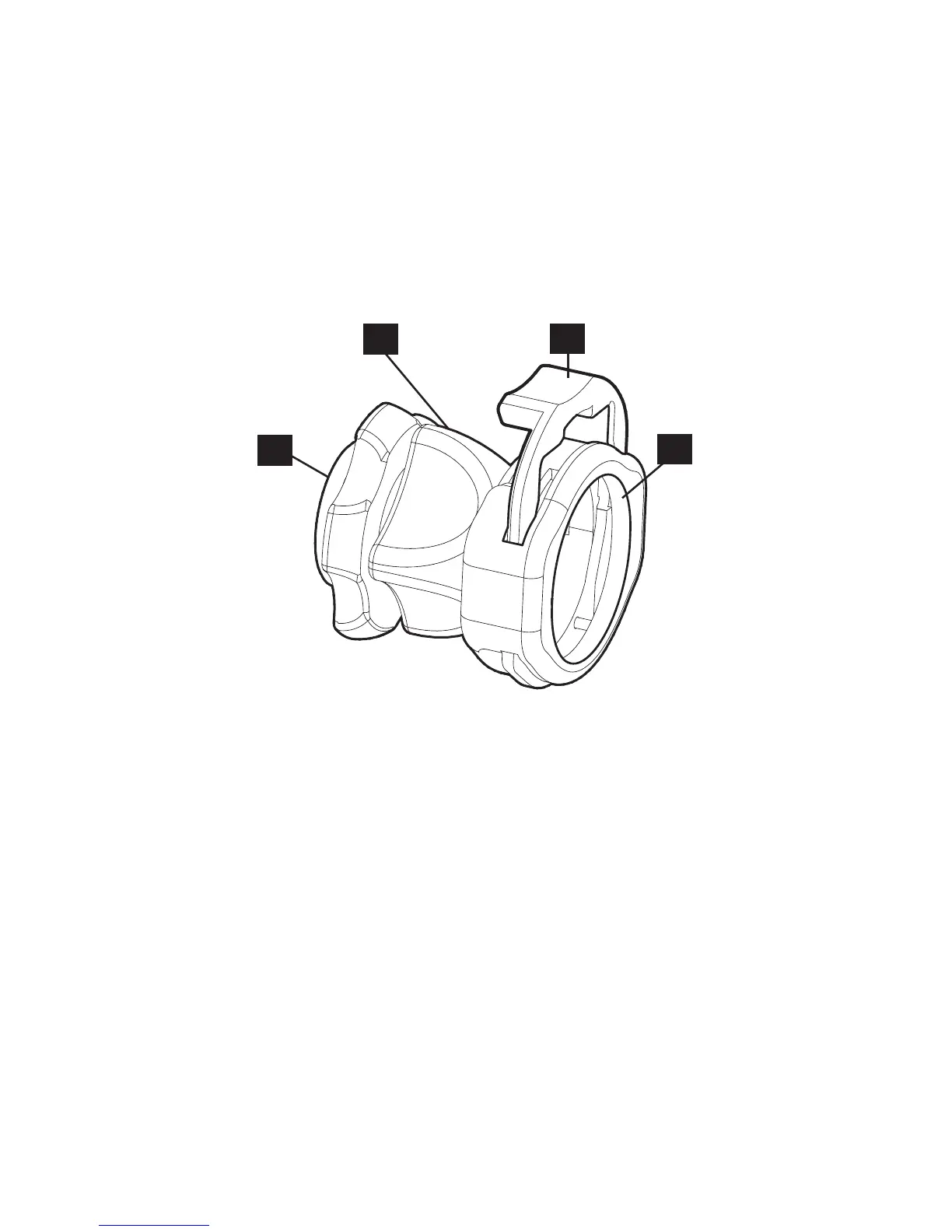

instructions. The 1488 HD Coupler, 18 mm, C-Mount (1488020122) is shown
below.
2
3
1
4
1. Rear Adapter Threads onto the camera head
2. Focusing Ring Adjusts the coupler focus
3. Endobody Clamp Secures the scope to the coupler
4. Scope End Receives the endoscope

Stryker 1488 Specifications

General

Resolution	1920 x 1080
Sensor Type	CMOS
White Balance	Automatic/Manual
Output	HDMI, DVI, HD-SDI
Camera Head Technology	Three-chip
